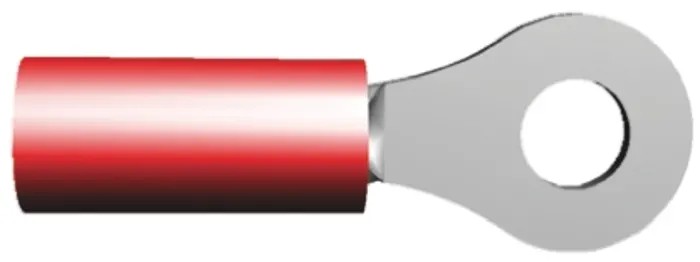

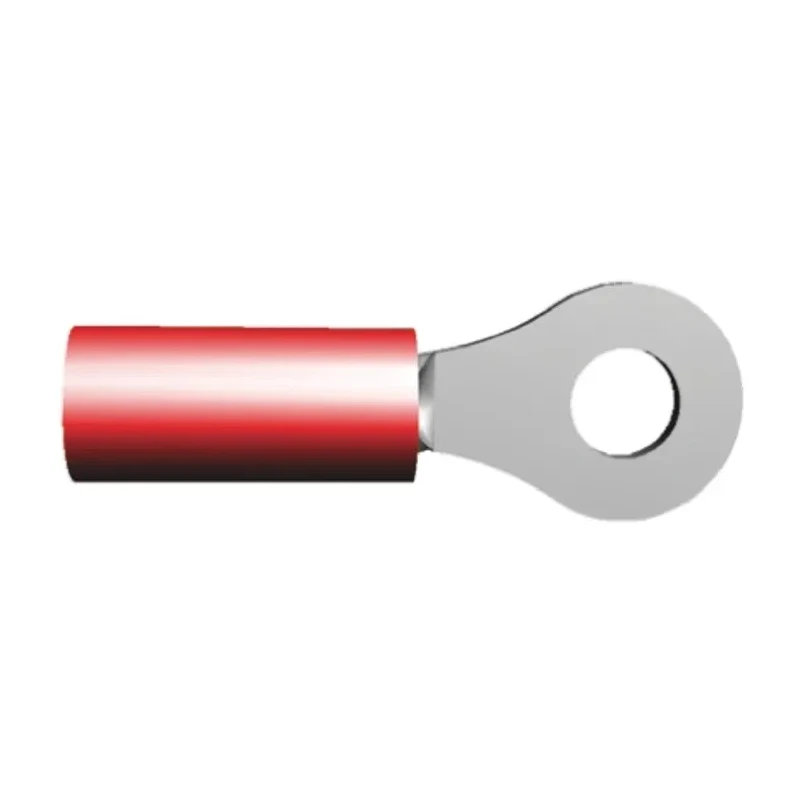

TE Connectivity PIDG Insulated Ring Terminal M3.5 Stud Size 22 AWG 16 AWG Wire Size Red 326878

TE Connectivity 326878 PIDG Insulated Ring Terminal is engineered for uniform reliability and durability in demanding circuit environments. This ring terminal features a precision-formed high conductivity copper body and barrel with serrations inside the wire barrel to maximize contact and tensile strength after crimping. The copper sleeve surrounding the wire barrel provides enhanced insulation support and prevents wire fraying.

The outer nylon sleeve is color-coded red for easy wire size identification and has a funnelled entry design that aids fast wire insertion during automated production. These terminals are designed to produce a consistent, reliable crimp when used with specialized tool dies.

The terminal supports wire sizes from 22 AWG to 16 AWG, corresponding to 0.26 mm² to 1.65 mm², and a stud size M3.5. It withstands maximum operating temperatures up to 105°C, making it suitable for various industrial and commercial applications. Typical uses include instruments, lighting systems, power supplies, panel boxes, transportation equipment, motors, aerospace, and appliances.

The robust construction ensures excellent electrical conductivity and mechanical strength, meeting stringent quality requirements. The terminal is made in the United States and reflects TE Connectivity's commitment to quality and performance.

Constructed with high conductivity copper for optimal electrical performance. Equipped with a tin-plated contact for corrosion resistance. Features a nylon insulated sleeve for wire protection and color coding. Serrated wire barrel provides maximum contact and tensile strength after crimping.

Funnelled wire entry enables easy wire insertion during production. Supports wire sizes from 22 AWG (0.26 mm²) to 16 AWG (1.65 mm²). Maximum operating temperature of 105°C for reliability in demanding conditions. Color-coded red sleeve for easy identification and tooling.

Manufactured in the United States ensuring high quality standards.

This TE Connectivity PIDG Insulated Ring Terminal is an ideal choice for electrical and electronic professionals seeking reliable, high-performance wire terminations in industrial, laboratory, manufacturing, and HVAC sectors. EnvMart offers comprehensive selections of wire terminals and splices for professional and commercial applications.
