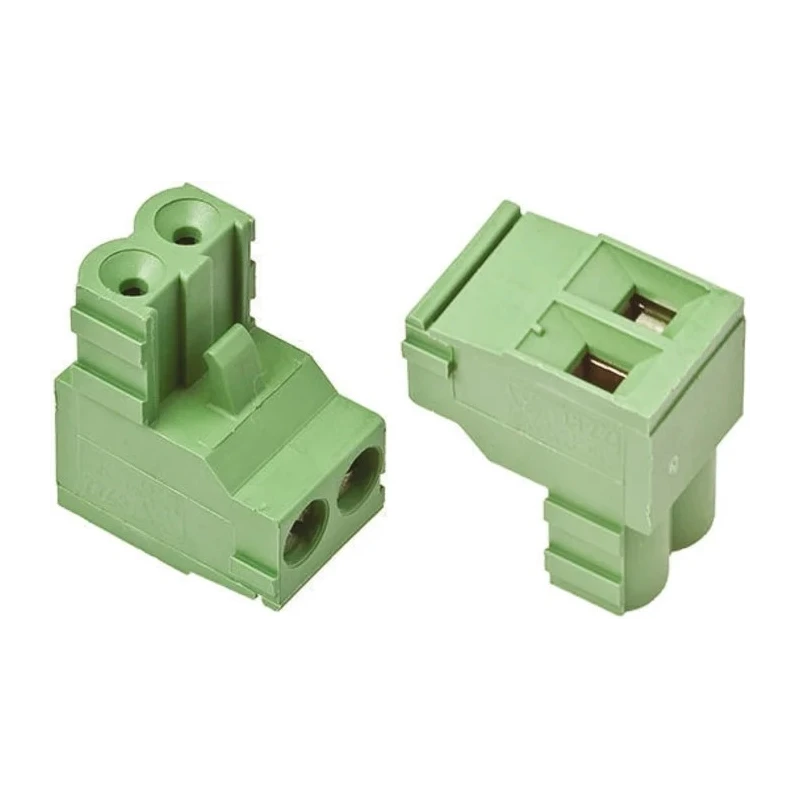

TE Connectivity Buchanan Series Pluggable Terminal Block 2-Contact 5 mm Pitch 1 Row 300V AC 15A Polyamide Housing 282805-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V ac |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Right Angle |
| Current | 15A |
| Length | 10mm |
| Model | 282805-2 |
| Depth | 15.5mm |
| Width | 18.4mm |
| Housing Material | Polyamide |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 5mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 237-8442 Brand:[RS PRO](https://in.rsdelivers.com/brands/rs-pro) |
| Number of Contacts | 2 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 3mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 30AWG |
Key Features
- Supports wire sizes from 12 AWG to 30 AWG with a minimum of 0.05 mm² and maximum of 3 mm².
- Rated for 15 A current and 300 V AC voltage application.
- Constructed with durable polyamide housing for safety and reliability.
- Right angle orientation with male connector gender for versatile PCB mounting.
- Designed with interlock stacking plugs for side-by-side installation.
- Polarization key and retention latch ensure secure connections.
- Meets UL 94V-0 flame retardant standard for housing material.
Product Description
TE Connectivity 282805-2 Pluggable Terminal Block is a high-quality electronic connector designed for industrial and electrical applications requiring reliable termination and connection of wire conductors. It features 2 contacts spaced at a 5 mm pitch, arranged in a single row suitable for compact PCB layouts.
The terminal block supports wire sizes ranging from 12 AWG (0.05 mm² minimum) up to 30 AWG (3 mm² maximum), making it versatile across various wire gauges. It is rated for a maximum of 15 A current and can operate safely at voltages up to 300 V AC, suitable for typical control and signal wiring environments.
The housing is made of polyamide material with UL 94V-0 flame retardant rating ensuring excellent electrical insulation, mechanical strength, and fire safety. The connector is configured with a right angle orientation and male connector gender, allowing easy side entry and mounting on printed circuit boards or terminal blocks.
Additional design features include an interlock stacking plug system for secure side-by-side mounting assemblies, polarization keys to prevent incorrect mating, and retention latches for vibration-proof connections. The compact size, measuring 10 mm in length, 18.4 mm in width, and 15.5 mm in depth optimizes space without compromising durability.
This pluggable terminal block is widely used in industrial automation, manufacturing control panels, electronic equipment assemblies, HVAC systems, and other commercial electrical installations requiring robust, easy-to-maintain wire connections. Its proven TE Connectivity design ensures long-term reliability.
Supports wire sizes 12 to 30 AWG with 0.05 to 3 mm² range. Rated 15 A current at 300 V AC voltage. Polyamide housing with UL 94V-0 flame retardant standard. Right angle, male connector orientation for PCB mounting. Interlock stacking plug feature for convenient side-by-side installation.
Polarization key and retention latch for secure connections. Explore the full range of TE Connectivity connectors and terminal blocks at EnvMart for compatible solutions.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a maximum current of 15 A and can operate safely at voltages up to 300 V AC.
This terminal block supports wire sizes ranging from 12 AWG (0.05 mm² minimum) to 30 AWG (3 mm² maximum).
The housing is constructed from polyamide material, which meets the UL 94V-0 flame retardant standard for safety.
It features a right angle orientation with a male connector gender, allowing for easy PCB mounting.
The dimensions are 10 mm in length, 18.4 mm in width, and 15.5 mm in depth.
Yes, it is designed with polarization keys to prevent incorrect mating and retention latches for secure, vibration-proof connections.
The contacts are spaced at a 5 mm pitch, suitable for compact PCB layouts.
Yes, it includes an interlock stacking plug feature that allows for secure side-by-side mounting assemblies.
It is widely used in industrial automation, manufacturing control panels, electronic equipment assemblies, and HVAC systems.
The terminal block is manufactured in India.
This model has 2 contacts arranged in a single row.
This terminal block belongs to the Buchanan series by TE Connectivity.
