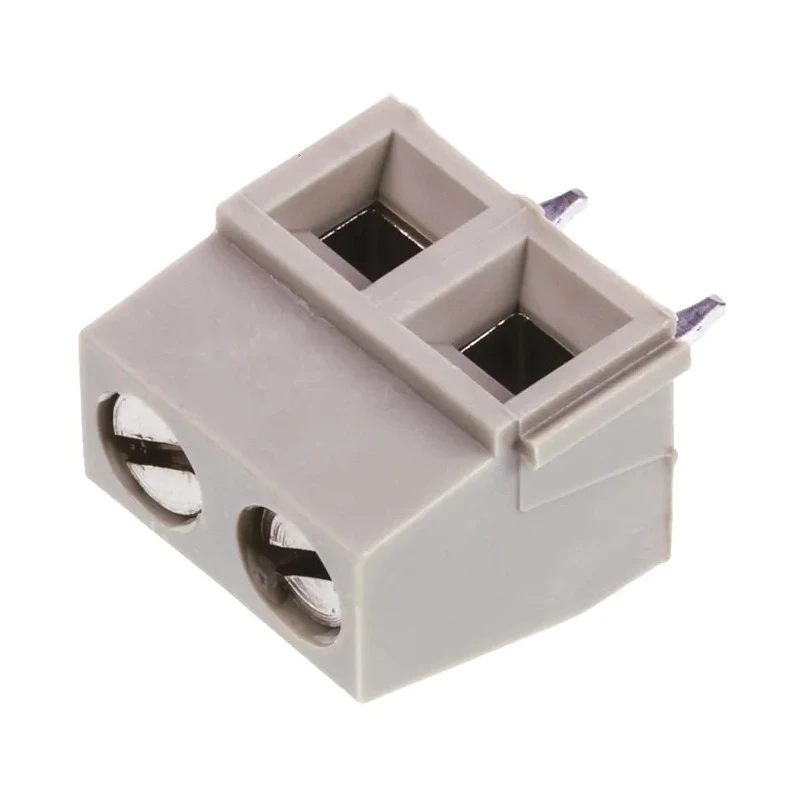

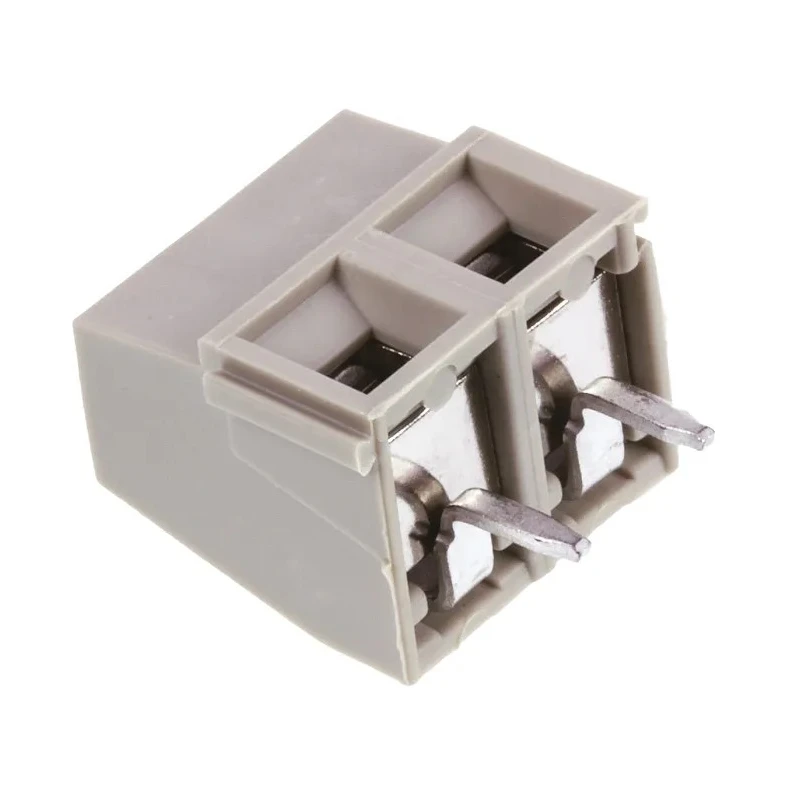

TE Connectivity Buchanan Series PCB Terminal Block, 2-Contact, 5 mm Pitch, 1 Row, 13.5A, Polyamide Housing, Male 1546216-2

TE Connectivity 1546216-2 PCB Terminal Block is a high-quality electrical connector designed for reliable and efficient PCB mounting applications. This 2-contact, 1-row terminal block features a 5 mm pitch, providing a low-profile solution ideal for space-constrained electronic assemblies.

Constructed with a durable polyamide housing, it offers excellent insulation and mechanical strength suitable for industrial and commercial electronic devices. The male connector with straight orientation is engineered for easy wiring and installation, supporting wire sizes from 0.05 mm² to 1.4 mm² (16 to 30 AWG), accommodating a wide range of conductor options.

This terminal block supports a current rating of 13.5 amperes and operates safely with voltages up to 300V AC, ensuring suitability for diverse low voltage power and signal transfer applications. Its M3 screw clamp terminals provide secure and vibration-resistant wire connection, enhancing operational reliability in environments encountering mechanical stresses.

The 1546216-2 model is part of the Buchanan Series TERMI-BLOK range by TE Connectivity, known for their premium green polyamide 6.6 GF material offering enhanced temperature resistance and robust performance. With an interlocking side stacking feature, these pluggable terminal blocks allow modular and scalable assembly configurations as per system requirements.

These terminal blocks find extensive use in industrial automation systems, electronic equipment manufacturing, laboratory devices, HVAC controls, and commercial electrical distribution systems. Their compact dimension (Width: 8.2 mm, Depth: 10 mm, Length: 10 mm) and grey color housing facilitate seamless integration into printed circuit board designs requiring reliable electrical connections.

Current rating of 13.5 amperes ensuring reliable power transmission. Polyamide housing provides durability and electrical insulation. Male connector type with straight orientation for easy installation. Supports wire sizes from 0.05 mm² to 1.4 mm² (AWG 30 to 16).

Compact design with 5 mm pitch and 1 row suited for space-efficient PCB layouts. Operating voltage up to 300V AC for versatile application scenarios. Construction features M3 screw clamp terminals for secure wire retention.

Standard grey color housing compatible with various circuitry designs. Made from premium green polyamide 6.6 glass-fiber reinforced material. Interlocking feature enables side stacking for expandable connections. Explore the TE Connectivity product range for premium quality, reliable electronic components and connectors at EnvMart.
