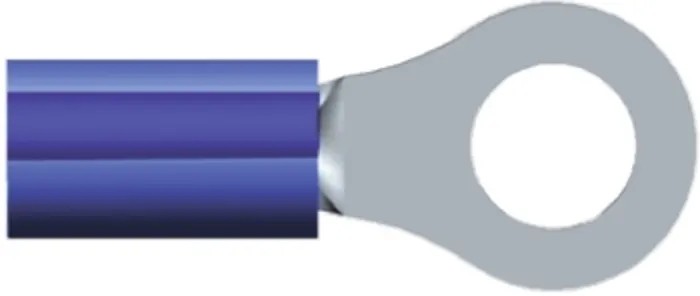

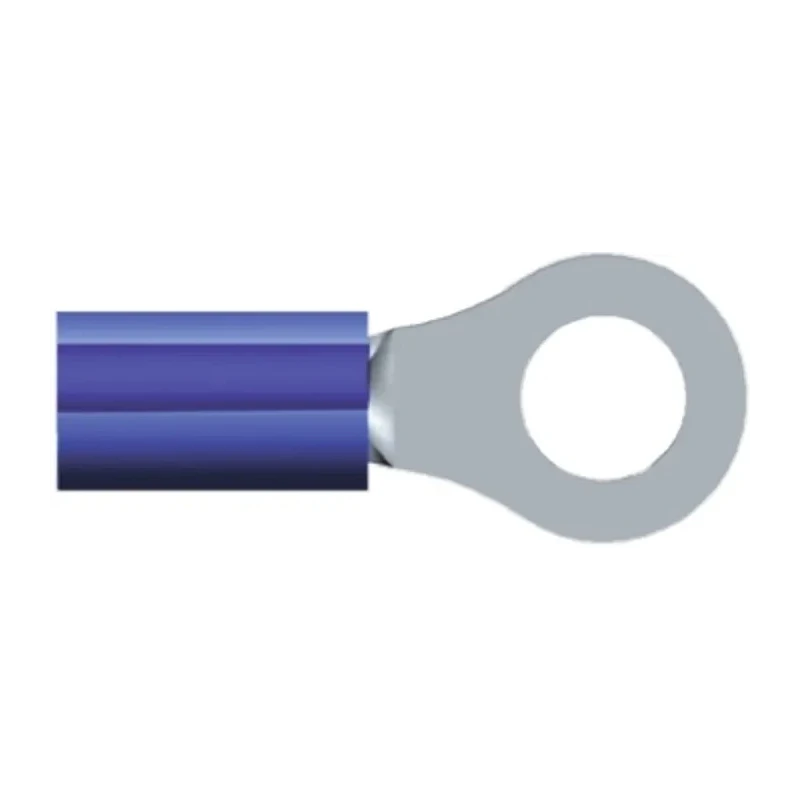

TE Connectivity PIDG Insulated Ring Terminal M6 Stud Size 16 AWG 14 AWG Wire Size Blue 2-320563-3
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| THICKNESS | 0.84mm |
| Insulation | Insulated |
| Overall Length | 1.14in |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-0227Brand: TE ConnectivityManufacturers Part No.: 2-320563-3 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 0.469in |
| Inner Ring Diameter | 0.265in |
| Stud Size | M6 |
Key Features
- Constructed with a high conductivity copper body for excellent electrical performance.
- Features an insulated nylon sleeve for wire size identification and insulation support.
- Serrations inside the barrel ensure maximum contact and tensile strength after crimping.
- Designed for easy wire insertion with a funnelled entry to prevent wire strand turn back.
- Supports operating temperatures up to 105°C for industrial applications.
- Utilizes tin plating on contacts to resist corrosion and enhance durability.
- Designed to meet or exceed MIL-T-7928 specifications for demanding circuit environments.
- Suitable for use in instrumentation, control panels, power supplies, aerospace, and transportation industries.
Product Description
TE Connectivity 2-320563-3 PIDG Insulated Ring Terminal is a precision-engineered M6 stud size ring terminal designed to support wire sizes 16 AWG to 14 AWG with a durable blue nylon insulation sleeve. The terminal features a high conductivity copper body and barrel, with serrations inside the barrel providing excellent contact and tensile strength post-crimping. A copper sleeve surrounding the wire barrel improves insulation support and prevents fraying, while the color-coded nylon sleeve enables easy wire size identification, optimizing assembly efficiency in industrial environments.
This ring terminal is rated for a maximum operating temperature of 105°C, making it suitable for various industrial, laboratory, electrical, and manufacturing applications demanding robust and reliable wire connections. The tin-plated copper contact resists corrosion to ensure long-term durability even in challenging conditions.
The terminal design includes a funnelled wire entry to ease wire insertion and prevent turned back strands, facilitating high-speed production processes. Its construction adheres to rigorous standards, often meeting or surpassing MIL-T-7928, Type II, Class 1 and 2 requirements, making it well-suited for aerospace, transportation, motor, appliance, and control panel wiring tasks.
High conductivity copper body for superior electrical performance. Copper sleeve enhances wire insulation support and durability. Serrated barrel ensures dependable contact strength after crimping. Color-coded blue nylon sleeve simplifies wire size identification.
Funnelled wire entry promotes easy wire insertion and assembly speed. Tin-plated contacts resist corrosion for long-lasting reliability. Rated for continuous operation up to 105°C. Complies with stringent MIL-T-7928 standards for demanding circuit environments.
This Ring Terminal is a versatile choice for wiring applications across multiple industries including instrumentation, aerospace, manufacturing, power supplies, and transportation. It supports reliable, robust wire connections where durability and performance are critical.
For broader exploration, consider browsing the full category of Power Connectors at EnvMart to find compatible electrical components and terminals.
