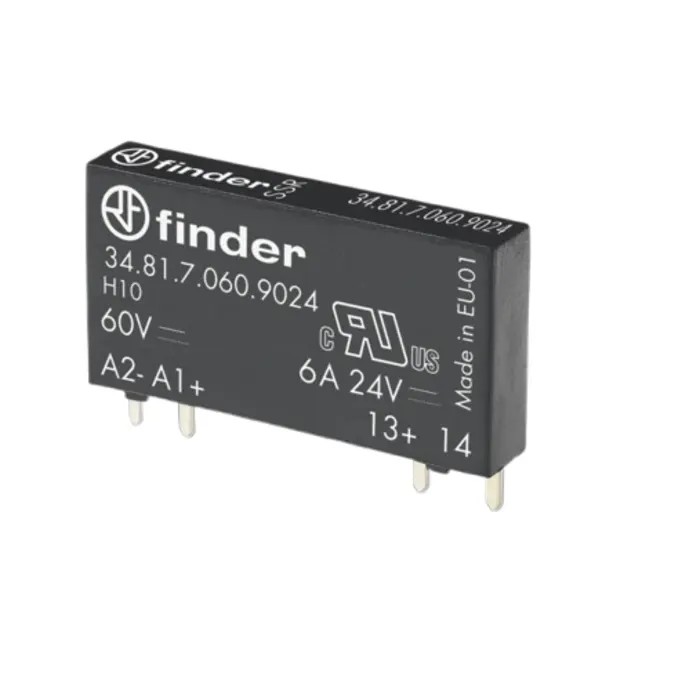

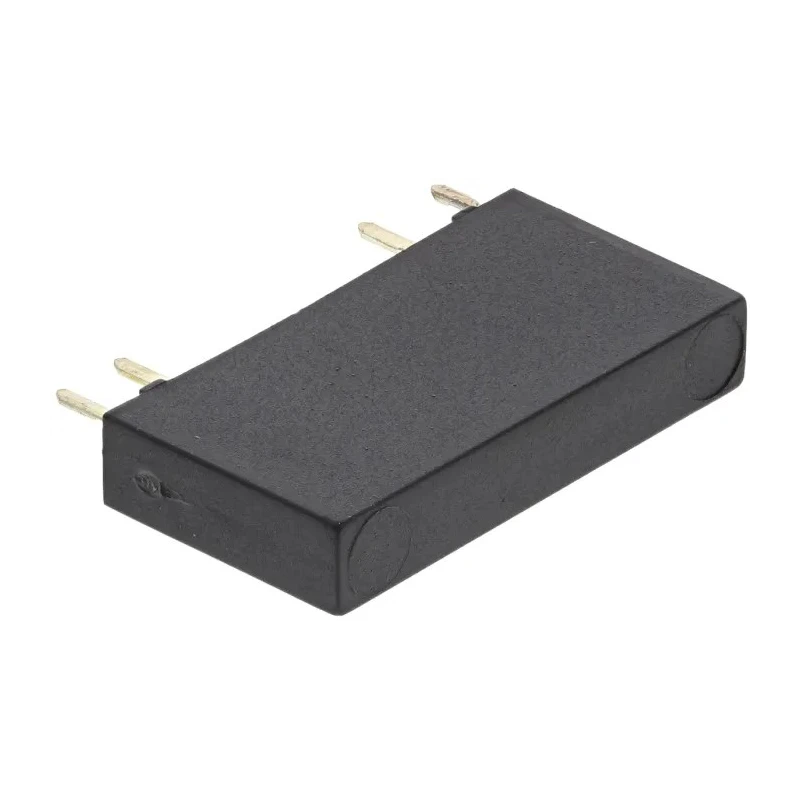

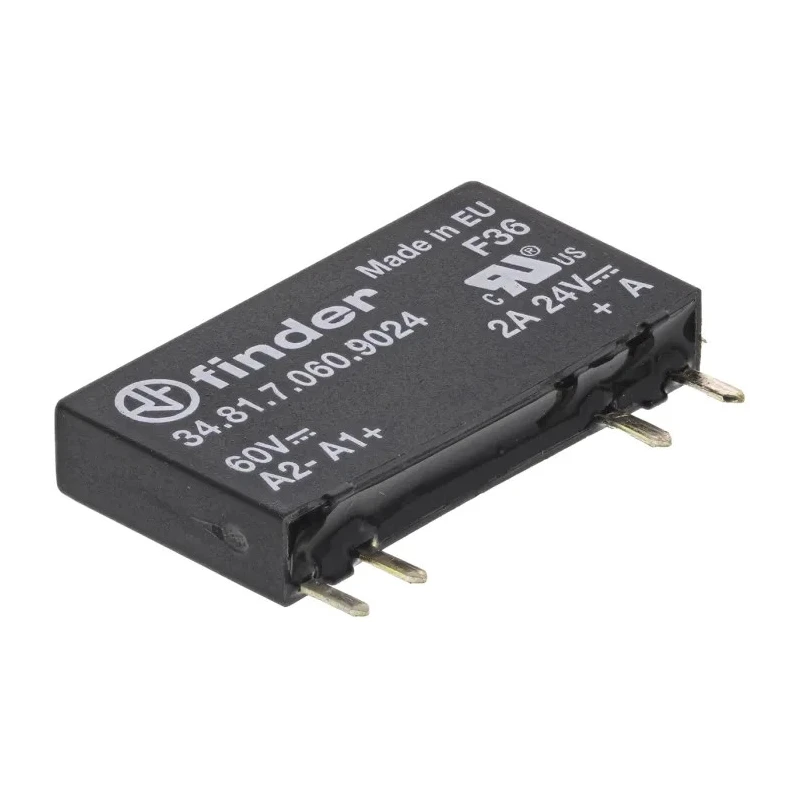

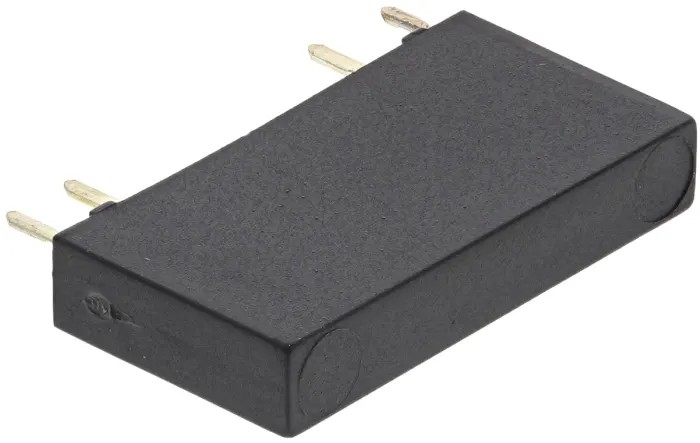

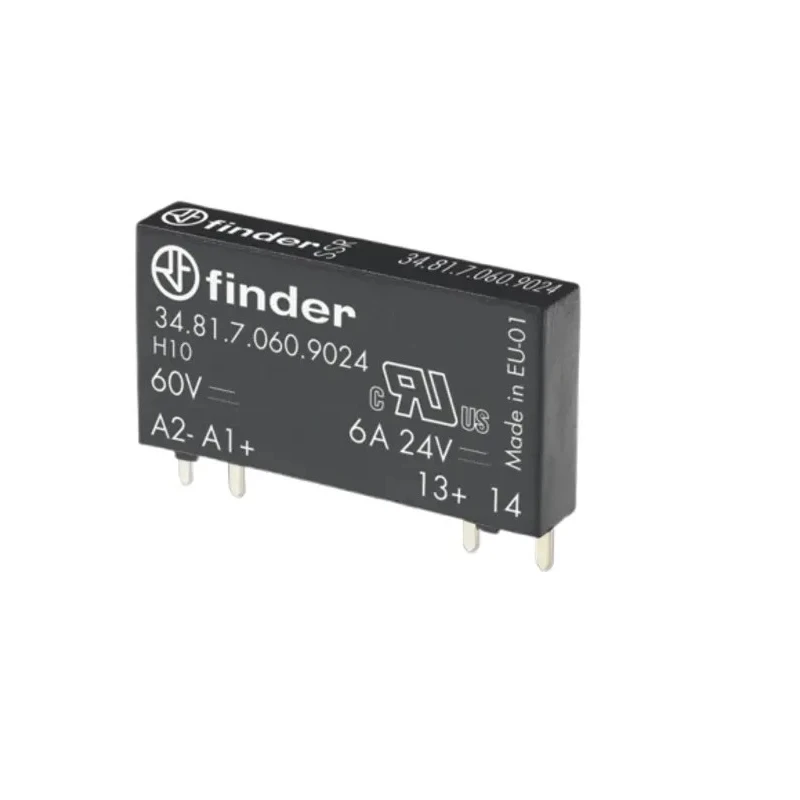

Finder 34 Series Solid State Relay PCB Mount 6 A Load 24 V DC Load 60 V DC Control 34.81.7.060.9024

Finder 34.81.7.060.9024 is a high-performance 34 Series Solid State Relay designed for PCB mounting in electrical and industrial automation systems. It supports a maximum load current of 6 A and a maximum load voltage of 24 V DC, making it ideal for compact applications requiring efficient DC switching.

This relay features an ultra-slim SIP-4 package with dimensions 28 mm length, 5 mm width, and 15 mm height, which allows for space-constrained installations on printed circuit boards. The solder-type terminal ensures secure and reliable connection.

Operating within a wide temperature range from -20°C to +70°C, it is suitable for diverse industrial environments. The device exhibits a minimal off-state leakage current of 0.001 mA to maintain low power dissipation in circuits.

Its control voltage tolerance reaches up to 60 V DC, allowing flexibility in various control scenarios. The single-pole single-throw (SPST) contact configuration is well-suited for DC switching applications in automation machinery and sensitive electronic control circuits.

The relay is compliant with RoHS, EAC, and cURus certifications, ensuring adherence to international safety and environmental standards. The relay supports a maximum load current of 6 A for robust performance. It operates at a maximum load voltage of 24 V DC suited for compact PCB use.

The control voltage can be as high as 60 V DC, allowing versatile integration. It features an ultra-slim SIP-4 package with dimensions 28 x 5 x 15 mm for space-saving installations. The device functions reliably in temperatures from -20°C up to +70°C.

It has a minimum load voltage requirement of 1.5 V DC for effective switching. Minimum off-state leakage current is only 0.001 mA ensuring low power loss. The relay employs SPST contact configuration for DC switching applications.

Terminals are designed for solder mounting, compatible with standard PCB assembly. Complies with RoHS, EAC, and cURus standards for reliable and safe operation.

This Solid State Relay is suitable for industrial automation, electronic control, and low-voltage DC circuit switching. Its compact size and efficient switching make it perfect for integration into machinery control panels, automation devices, and other PCB-mounted electronic equipment.
