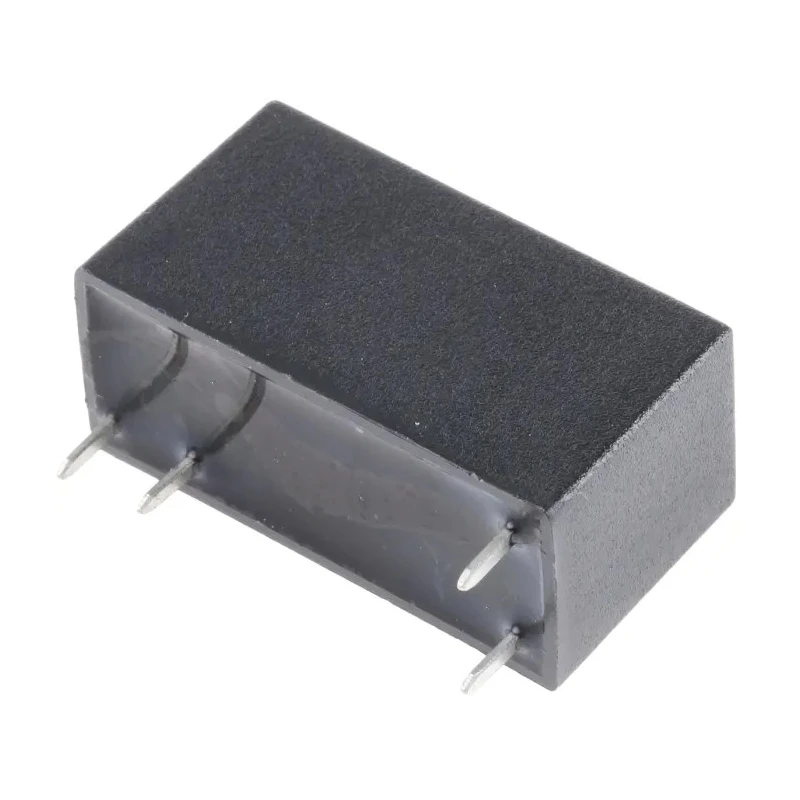

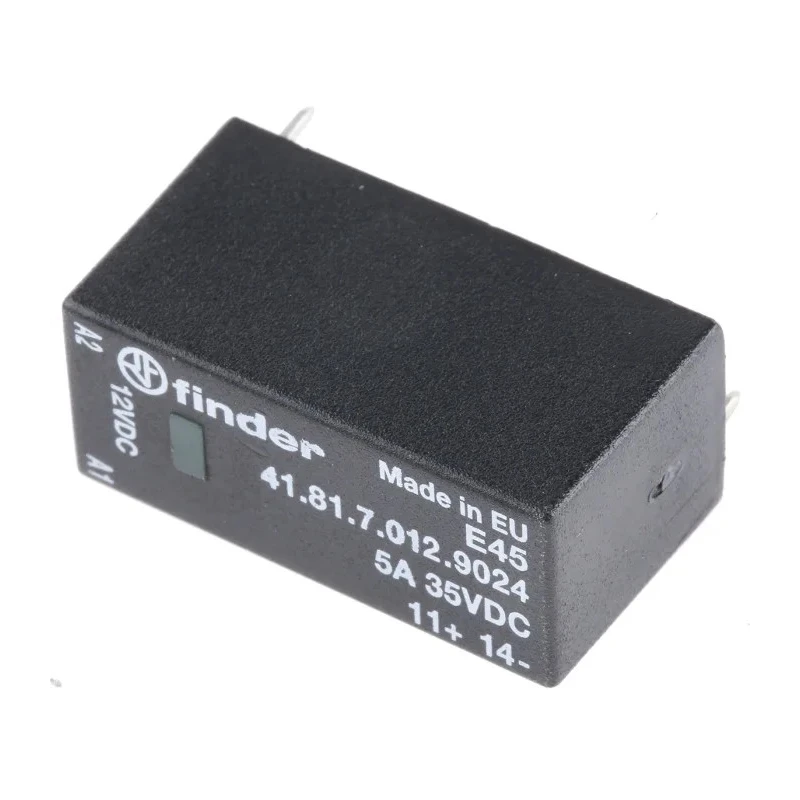

Finder 41 Series Solid State Relay 5 A Load PCB Mount 24 V dc Load 17V dc Control 41.81.7.012.9024

Finder 41.81.7.012.9024 is a 41 Series Solid State Relay engineered for industrial and automation applications requiring efficient and rapid switching.

This relay supports a maximum load current of 5 A and operates with a maximum load voltage of 24 V dc, suitable for direct PCB mounting applications, enhancing circuit integration and reliability.

The device features a zero cross switching function, which promotes silent and high-speed switching, reducing electrical noise that could interfere with sensitive electronic components. It is constructed with through-hole terminal types, facilitating easy installation and soldering on PCBs.

The solid state relay is compact, measuring 15.7 mm in height, 29 mm in length, and 12.7 mm in width, making it suitable for space-constrained electronic assemblies.

Operating within a temperature range of -20°C to +60°C, the relay is designed for robust performance in diverse industrial environments. Its IP20 rating protects internal circuitry from solid objects greater than 12 mm but is not intended for wet conditions.

The unit has strict compliance with industry standards including EAC, RoHS, and cLR, underlining its commitment to safety and environmental regulations.

This relay exhibits an off-state leakage current of only 0.01 mA, which contributes to low power loss when the relay is in the off position. The control voltage range from 8 V dc minimum to 17 V dc maximum ensures compatibility with common control circuits.

Wash tight to RT III standards, the relay maintains durability in industrial processes that involve cleaning.

Solid State Relays like this model are widely used in industrial automation, manufacturing systems, HVAC controls, and electrical signaling, where fast switching and reliability are critical.

Explore further high-quality automation and relay products compatible with Finder 41 Series relays on EnvMart. Supports maximum load current of 5 amps for moderate power applications. PCB mount type with through-hole terminals for secure installation.

Maximum load voltage of 24 V dc ensuring compatibility with low voltage systems. Minimum control voltage is 8 V dc, and maximum control voltage is 17 V dc for reliable activation. Compact dimensions with a height of 15.7 mm, length of 29 mm, and width of 12.7 mm.

Zero cross switching function for silent, high-speed switching and minimal electrical noise. IP20 rated enclosure providing protection against solid objects larger than 12 mm. Operational temperature range from -20°C to +60°C suitable for many environments.

Low off-state leakage current of 0.01 mA enhances energy efficiency. Compliance with EAC, RoHS, and cLR standards ensuring quality and safety.
