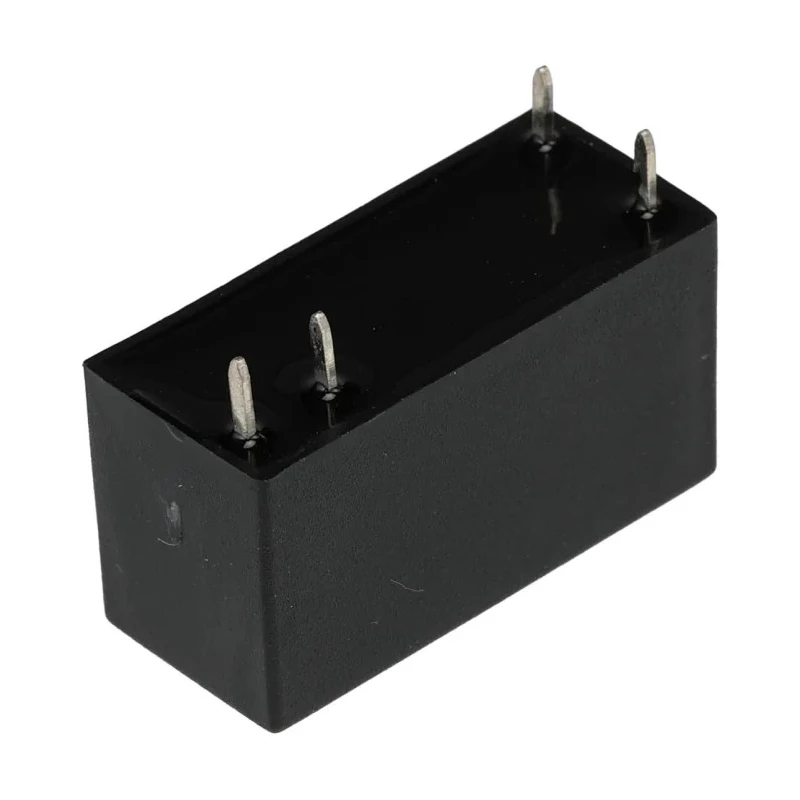

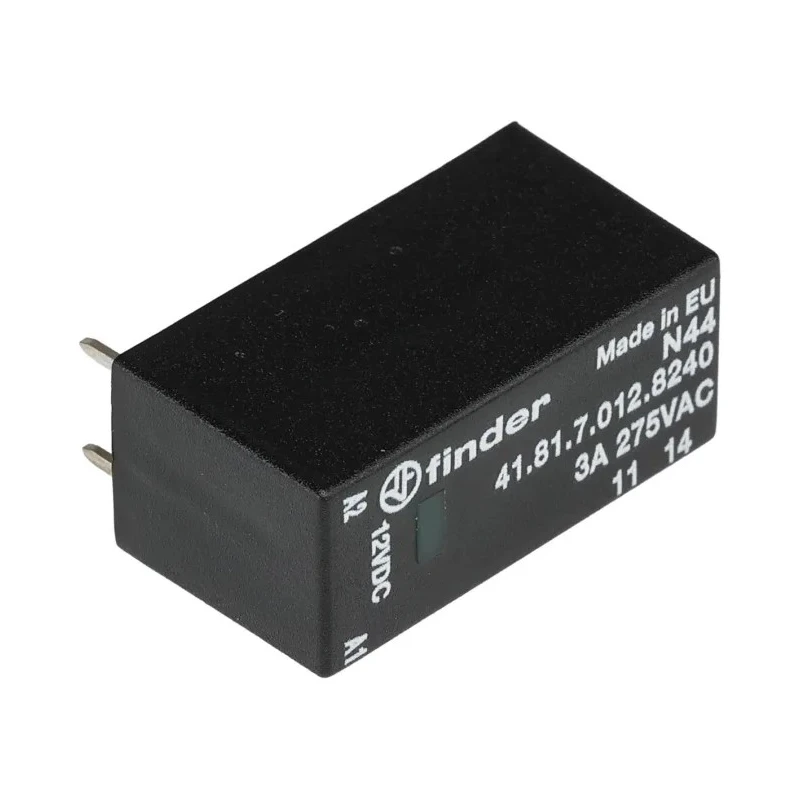

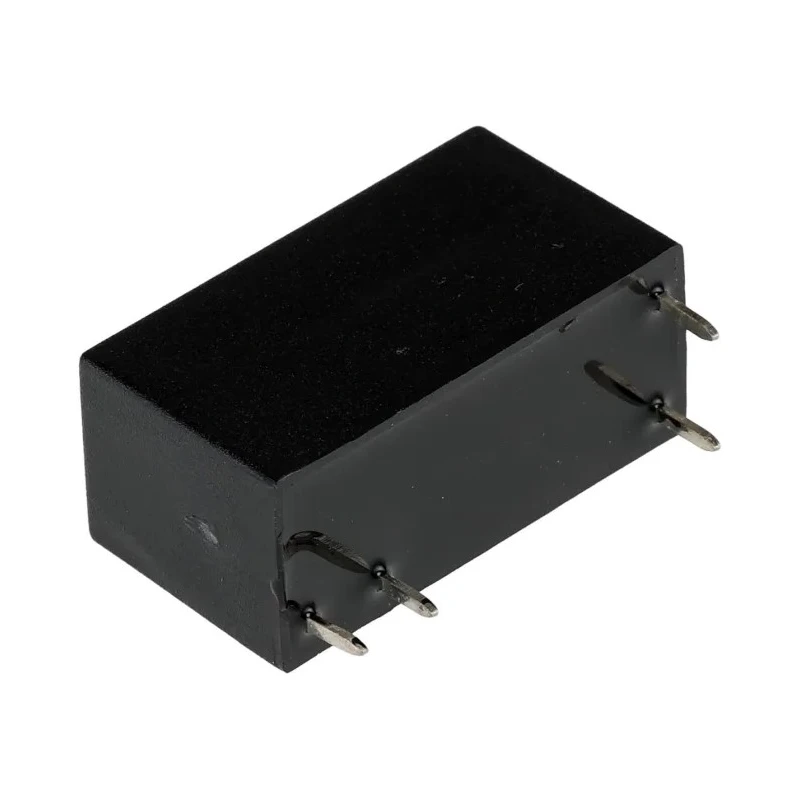

Finder 41 Series Solid State Relay 3A Load PCB Mount 240V AC Load 8-17V DC Control 41.81.7.012.8240

Finder 41.81.7.012.8240 Solid State Relay is a high-performance relay designed for PCB mounting applications. It handles a maximum load current of 3A and can switch load voltages from 12V AC up to 240V AC, controlled via a DC voltage range of 8V to 17V. The relay utilizes zero crossing switching technology, ensuring silent operation and reducing electrical stress on connected devices.

The compact size (29mm length, 12.7mm width, 15.7mm height) allows for efficient integration into electronic circuits. This relay is suitable for operation in environments ranging from -20°C to +60°C, making it versatile across various industrial and commercial setups.

The relay features through-hole terminals for secure and reliable soldering onto PCBs. Its robust insulation capability rated at 2500V AC dielectric strength protects internal components from voltage surges and ensures system safety. The off-state leakage current is minimal at 1mA, maintaining energy efficiency when the relay is disengaged.

Common applications include industrial robotics controller circuits, building automation, vending machines, lighting controls, door openers, and precise activation systems requiring reliable and silent switching performance. The relay complies with recognized standards including cLR, EAC, and RoHS, ensuring quality and environmental compliance.

Enables silent operation with zero crossing switching technology. Supports reliable switching for loads up to 3A at 240V AC. Compact dimensions allow space-saving PCB mounting. Wide operating temperature range from -20°C to +60°C.

High dielectric strength of 2500V AC increases safety. Low off-state leakage current of 1mA reduces power consumption. Through-hole terminal type for robust PCB connection. Ideal for industrial automation, lighting control, vending machines, and robotic applications.

This solid state relay from Finder’s 41 Series offers reliable, quiet, and efficient switching capabilities suitable for diverse industrial and electronic applications. Browse our selection of Solid State Relays to find compatible solutions for your control system needs.
