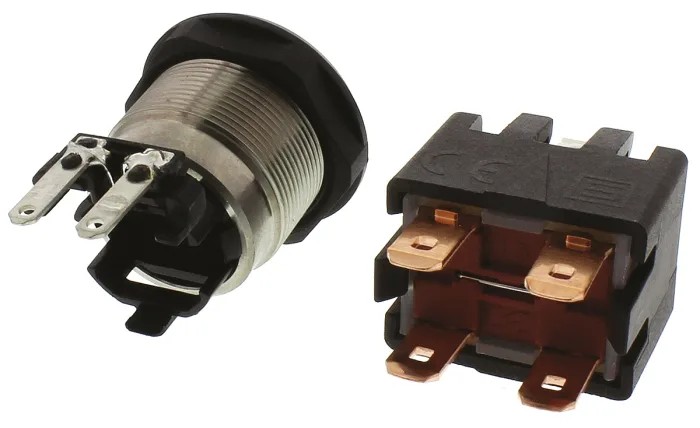

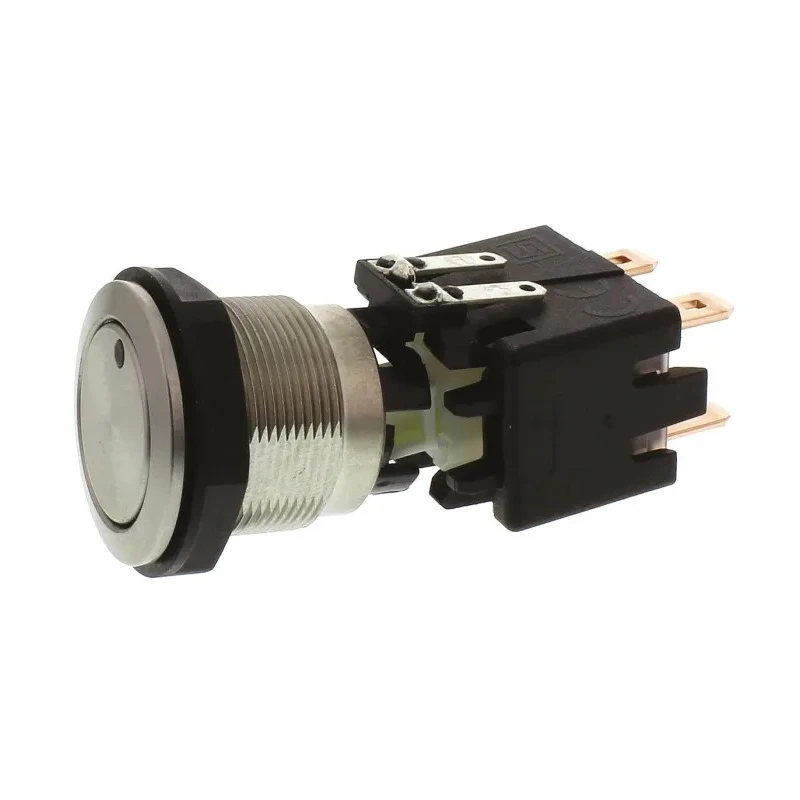

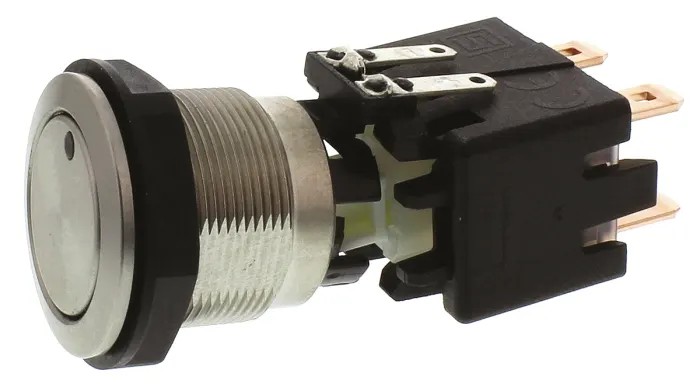

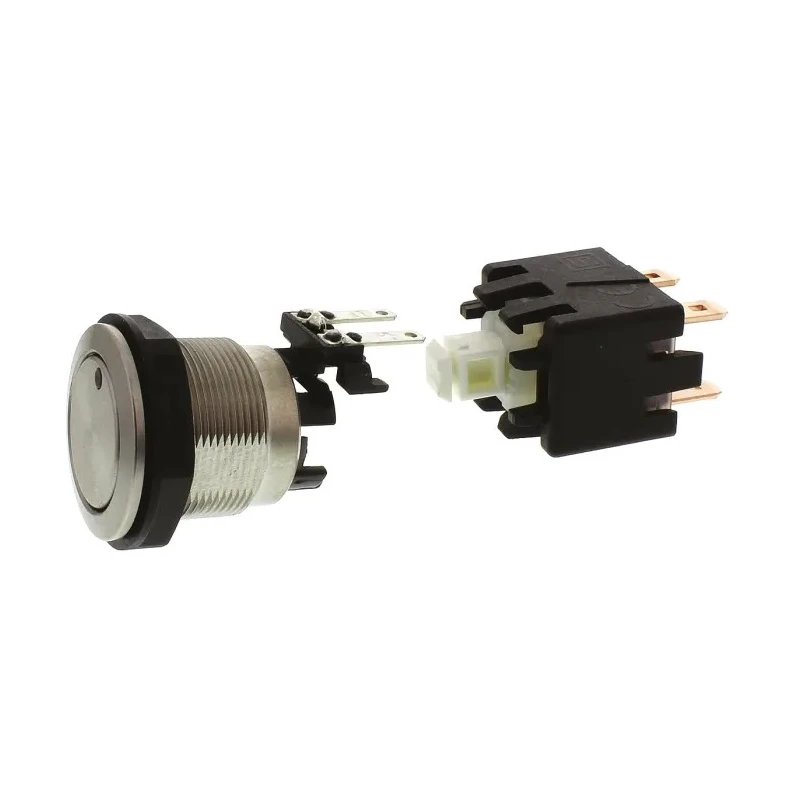

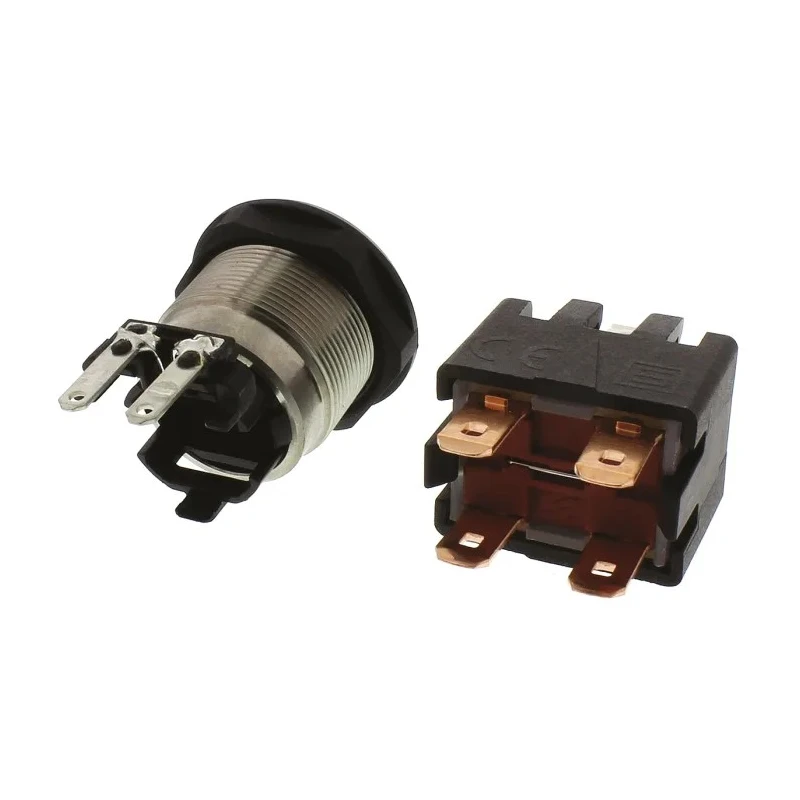

Schurter Illuminated Push Button Switch Latching Panel Mount, 19 mm Cutout, DPDT, Green LED, IP00 IP64 1241.6823.1122000

Schurter 1241.6823.1122000 MSM LA 19 Series Illuminated Push Button Switch is engineered for industrial and commercial applications requiring reliable and durable switching solutions. This panel mount switch features a 19 mm cutout and supports DPDT contact configuration with a latching push-on push-off operation. It is illuminated with a green LED, enhancing the visual indication of the switch status for better operator feedback.

The robust stainless steel housing provides IP64 protection against dust and water ingress, suitable for harsh and industrial environments. The actuator requires a 10N force to operate and has a total travel of 4.5 mm, with the button protruding 3.7 mm when in the off position. With an impressive mechanical life expectancy of up to 150,000 operations, it ensures dependable long-term performance.

Quick connect tab terminals simplify installation while supporting a contact current rating of 12A at 30V DC, making it ideal for various electrical control circuits. The product operates reliably across a temperature range from -25°C to 85°C, accommodating diverse environmental conditions.

Its green LED illumination offers a wide 180° visibility angle, improving operational safety and status clarity. Compliant with international safety and environmental standards including UL, RoHS, IEC, and CSA, this switch also meets IK07 shock resistance criteria (DIN EN 50102), ensuring excellent durability against mechanical shock.

This switch is suitable for applications in electrical automation, industrial machinery panels, and control systems where rugged and visually clear switching is critical. The MSM LA 19 series design balances aesthetics and functionality with its panel mount form factor and reliable build quality.

The switch features a latching push button operation enhancing control reliability. Designed for panel mounting with a 19 mm cutout size. Green LED illumination enables easy status recognition. Complies with international safety standards including UL, IEC, and CSA.

IP64 rated housing ensures resistance to dust and water ingress. Robust stainless steel construction provides IK07 shock resistance. 12A contact current capacity at 30V DC is suitable for demanding circuits. Long mechanical lifetime of up to 150,000 operations.

Quick connect tab terminals facilitate fast installation. Explore the range of Schurter Push Button Switches and other electrical components in EnvMart for reliable industrial and automation solutions.
