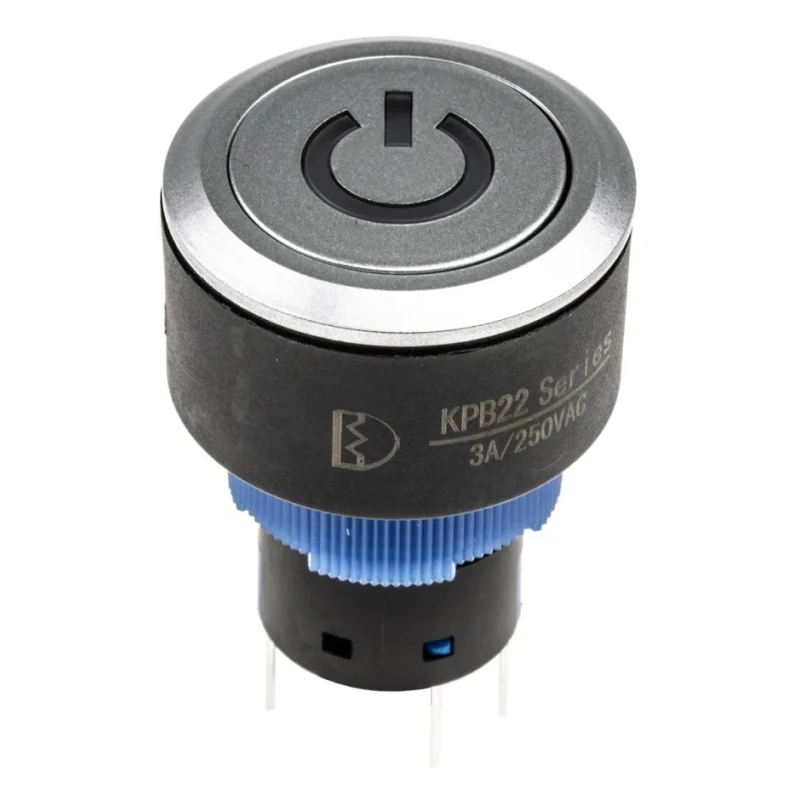

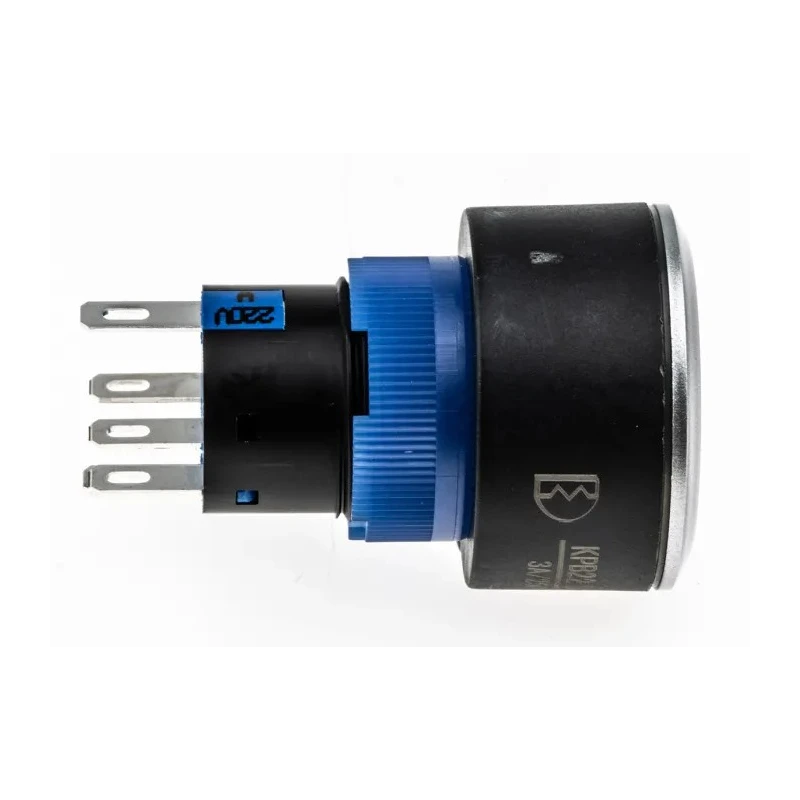

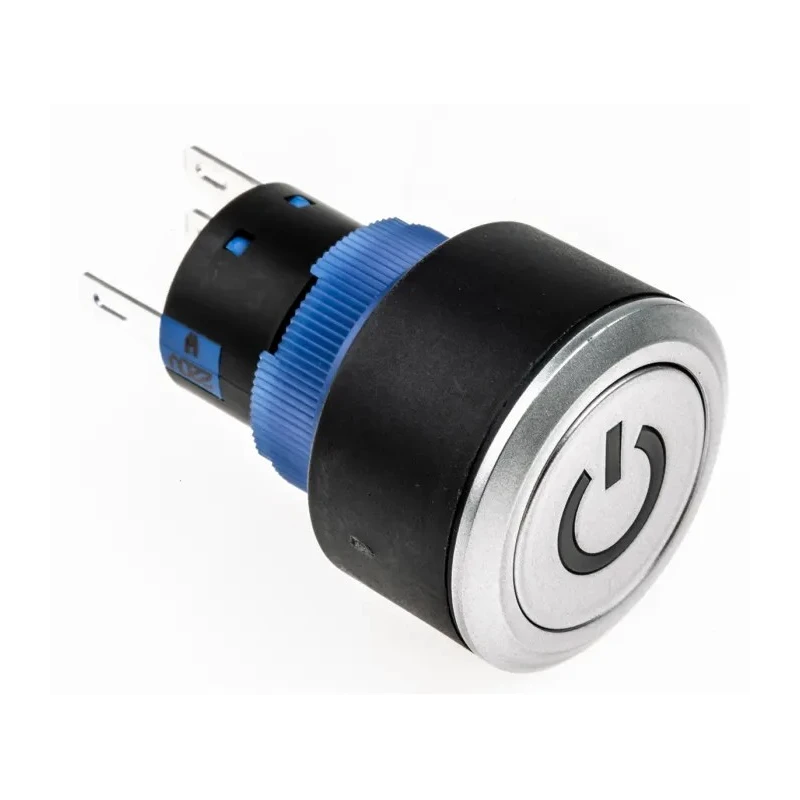

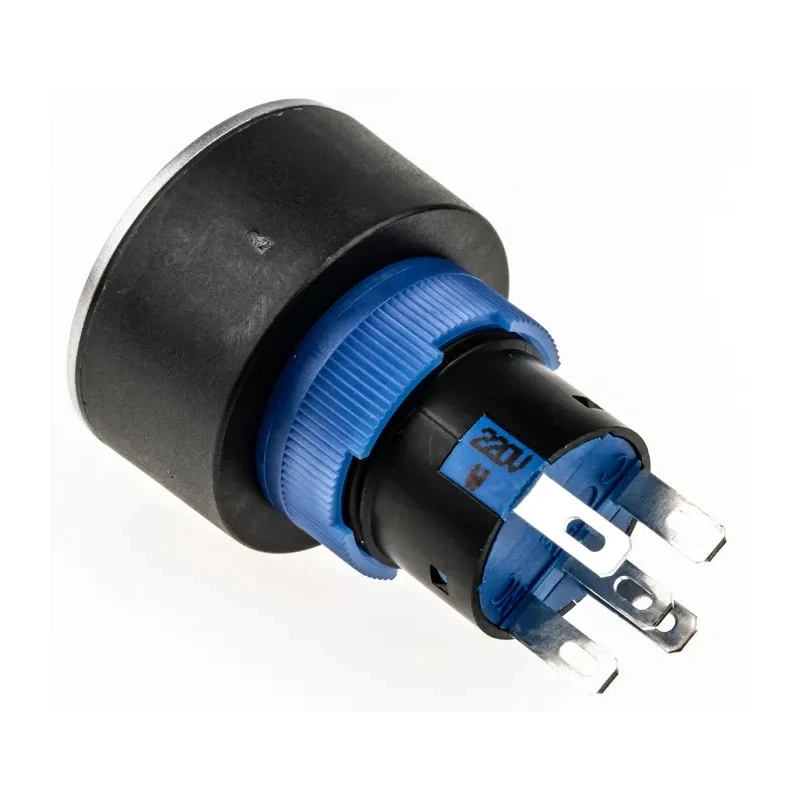

RS PRO Illuminated Momentary Push Button Switch Panel Mount SPDT White LED IP65 250V 3,5A 175-8251
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Model | 175-8251 |
| IP Rating | IP65 |
| Mount Type | Panel |
| Series | RS PRO |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -35°C |
| Panel Cutout Size | 22.2 mm |
| Terminal type | Solder |
| Standards/Approvals | UL 94 V0, UL 94 V |
| LED Colour | White |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 250V |
| Actuator Style | Flat |
| Switch Contact Current | 3, 5A |
| Contact AC Voltage | 250V ac |
| Legend | Power Symbol |
Key Features
- Features a silver-colored flat actuator for easy operation.
- Designed with a panel cutout size of 22.2 mm for standardized mounting.
- Illuminated with a white LED indicator for clear visual status.
- IP65 rated enclosure provides dust and water resistance.
- Operates reliably between -35°C to 70°C temperature range.
- Supports contact AC and DC voltage up to 250V.
- Has a maximum contact current rating of 3.5A suitable for various installations.
- Constructed with UL 94 V0 rated plastic for enhanced safety and durability.
Product Description
RS PRO 175-8251 is an illuminated momentary push button switch designed for panel mounting applications. It features a single pole double throw (SPDT) contact configuration with a flat silver actuator and a white LED indicator to provide visual feedback.
This switch accommodates a panel cutout of 22.2 mm and offers an IP65 ingress protection rating, ensuring excellent resistance against dust and water ingress. It is specified to handle both AC and DC voltages up to 250V and can safely switch currents up to 3.5A.
The switch housing uses UL 94 V0 approved plastic materials, combining durability with safety standards. It operates efficiently over a wide temperature range from -35°C to 70°C, making it suitable for various industrial and commercial environments.
Commonly employed in communications equipment, industrial automation systems, electronic measuring instruments, and office equipment, this Push Button Switch offers high reliability and easy installation with its solder terminal mount.
Features a silver-colored flat actuator for easy operation. Designed with a panel cutout size of 22.2 mm for standardized mounting. Illuminated with a white LED indicator for clear visual status. IP65 rated enclosure provides dust and water resistance.
Operates reliably between -35°C to 70°C temperature range. Supports contact AC and DC voltage up to 250V. Has a maximum contact current rating of 3.5A suitable for various installations. Constructed with UL 94 V0 rated plastic for enhanced safety and durability.
Ideal for communication equipment, automation, office, and industrial applications. Panel mount solder terminal type for secure electrical connection.
This RS PRO switch is manufactured in Taiwan, Province Of China, adhering to strict quality standards. Its robust design and IP65 rating make it an excellent choice for demanding operational environments.
Explore a wide selection of industrial switches and components at EnvMart for your automation and electrical equipment needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single pole double throw (SPDT) contact configuration, allowing for versatile switching applications.
It has a maximum contact current rating of 3.5A, making it suitable for various installations.
This unit operates reliably between -35°C and 70°C, accommodating a wide range of environmental conditions.
The switch requires a panel cutout size of 22.2 mm for standardized mounting.
It utilizes solder terminals for secure electrical connections during installation.
This model has an IP65 rating, providing excellent resistance against dust and water ingress.
It supports contact AC and DC voltage up to 250V, making it versatile for different applications.
The actuator is designed as a flat silver-colored style, facilitating easy operation.
The switch housing is constructed with UL 94 V0 rated plastic, ensuring safety and durability standards are met.
It is commonly employed in communications equipment, industrial automation systems, electronic measuring instruments, and office equipment.
This switch is manufactured in Taiwan, adhering to strict quality standards.
