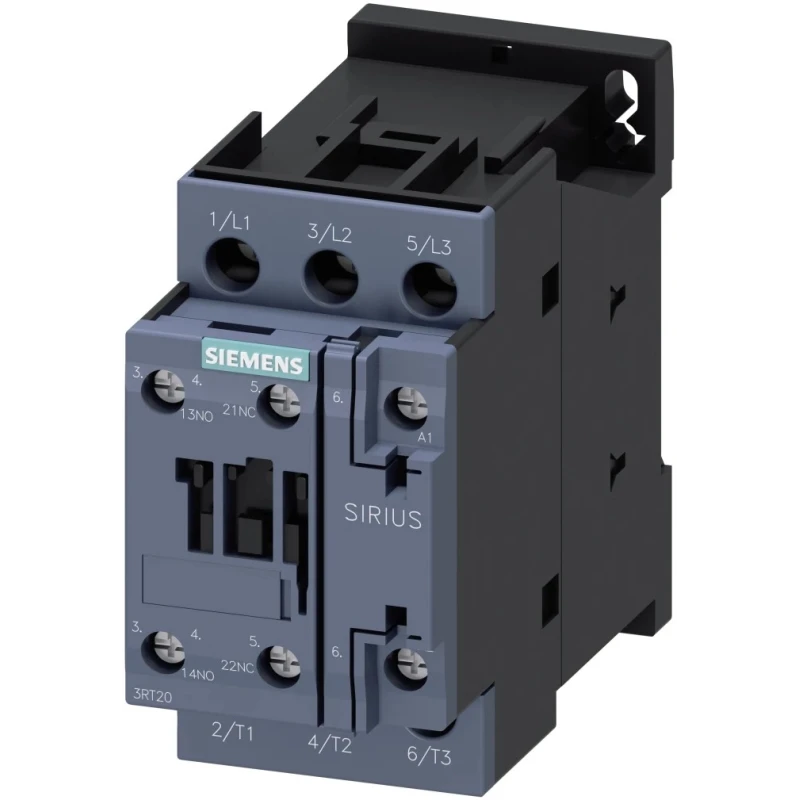

Siemens Contactor 3-Pole , 230V AC Coil, 12 A Contact Current, 5.5 kW Power Rating 230V AC, 3 NO Contacts 3RT2024-1AP00
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Siemens |
| Function | Straight |
| Length | 85mm |
| Model | 3RT2024-1AP00 |
| Depth | 97mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | 3RT2 |
| Power Rating | 5.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | EAC |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 706-1305Brand: SiemensManufacturers Part No.: 3RT2024-1AP00Distrelec Article No.: 30050614 |
| Contact Voltage | 400V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Low Carbon Manufacture |
| Contact Current | 12A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 40A |
| Control Circuit Voltage Uc | 230V ac |
| Pole and Throw Configuration | 3 |
Key Features
- Equipped with a 230V AC coil voltage suitable for control circuits.
- Features three main poles providing 3 normally open (3 NO) contacts for reliable power switching.
- Rated for a contact voltage of 400V AC and a contact current of 12 amps.
- Compact design with dimensions of 45 mm width, 85 mm length, and 97 mm depth for easy DIN rail mounting.
- Contains two auxiliary contacts configured as 1 normally open and 1 normally closed for control signaling.
- Screw clamp terminals ensure secure and vibration-proof electrical connections.
- Operational temperature range from -25°C to 60°C ensures dependable performance in varied environments.
- High operational current of 40A for demanding industrial loads.
Product Description
Siemens 3RT2024-1AP00 is a robust 3-pole contactor designed for efficient industrial automation and motor control applications. Featuring a 230V AC coil and a contact rating of 12 A, this contactor is ideal for switching and controlling electric motors and other heavy electrical loads in industrial settings.
This model incorporates three normally open (3 NO) contacts suitable for powering three-phase motors up to 5.5 kW at 230V AC. The contactor includes two auxiliary contacts (1 NO and 1 NC) to facilitate additional control circuit configurations. Screw clamp terminals provide reliable and vibration-resistant wiring connections, simplifying installation onto standard 35 mm DIN rails.
The compact dimensions (45 mm wide, 85 mm long, and 97 mm deep) enable space-saving integration into control panels. It operates efficiently within a wide temperature range from -25°C to +60°C, ensuring dependable function in harsh industrial environments. The contactor meets EAC standards and includes features aimed to reduce carbon footprint, aligning with Siemens' Low Carbon Manufacture initiative.
With an operational current Ie of 40A, this device handles demanding load requirements safely and reliably. The unit's IP20 rating provides touch protection for safe handling during installation and operation. Manufactured in Germany, this Siemens contactor delivers high performance and durability for industrial automation, manufacturing plants, HVAC systems, and electrical power distribution networks.
230V AC coil voltage and control circuit compatibility. 3 poles with 3 normally open contacts for three-phase switching. 12A contact current rating with 5.5 kW power handling at 230V AC. Two auxiliary contacts (1 NO / 1 NC) enable advanced control logic.
Screw clamp terminal type for secure and maintenance-friendly wiring. Wide temperature operating range from -25°C to 60°C. Compact DIN rail mountable form factor for easy installation. Operational current of 40A for industrial load requirements.
German-made quality with EAC compliance and low carbon manufacturing. IP20 safety rating preventing accidental contact and shocks.
Explore the extensive selection of Siemens automation and control gear in the Electronics & Electricals category at EnvMart, your trusted source for industrial electrical components.
Explore more products in our Contactors & Auxiliary Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contactor features a coil voltage of 230V AC, making it suitable for control circuits that operate at this voltage.
It has a contact current rating of 12A, allowing it to handle significant electrical loads.
This contactor has a power rating of 5.5 kW at 230V AC, suitable for powering three-phase motors.
The unit is a 3-pole contactor with three normally open (3 NO) contacts for reliable power switching.
The dimensions are 45 mm in width, 85 mm in length, and 97 mm in depth, allowing for compact installation.
It operates efficiently within a temperature range of -25°C to 60°C, suitable for various industrial environments.
It features screw clamp terminals, which provide secure and vibration-proof electrical connections.
The contactor includes two auxiliary contacts configured as 1 normally open (1 NO) and 1 normally closed (1 NC).
The operational current Ie is rated at 40A, allowing it to handle demanding industrial loads.
Yes, it meets EAC standards, ensuring compliance with relevant industrial regulations.
This model is designed for DIN rail mounting, facilitating easy installation in control panels.
This contactor is manufactured in Germany, reflecting the brand's commitment to quality and performance.
