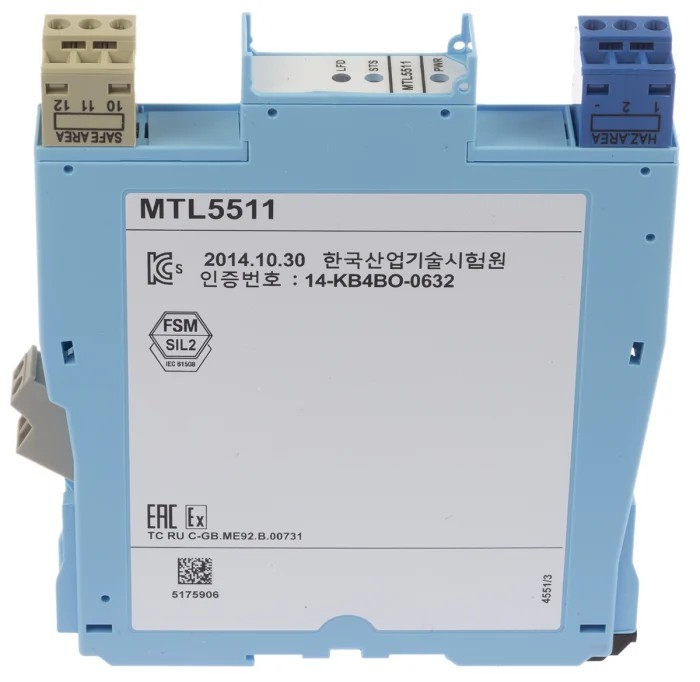

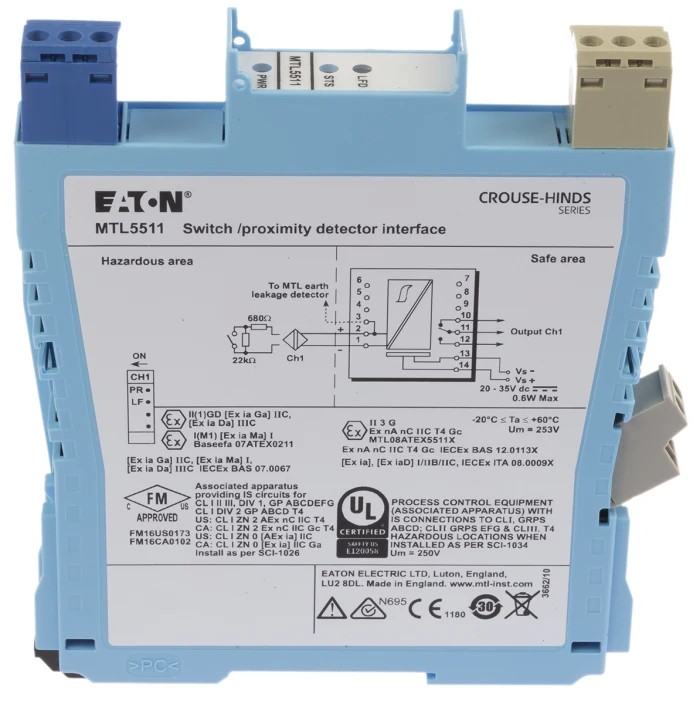

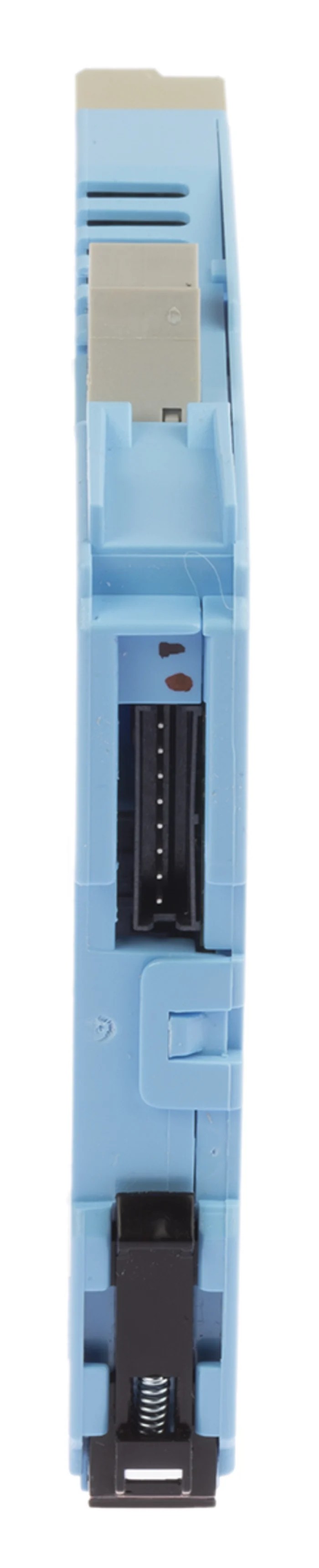

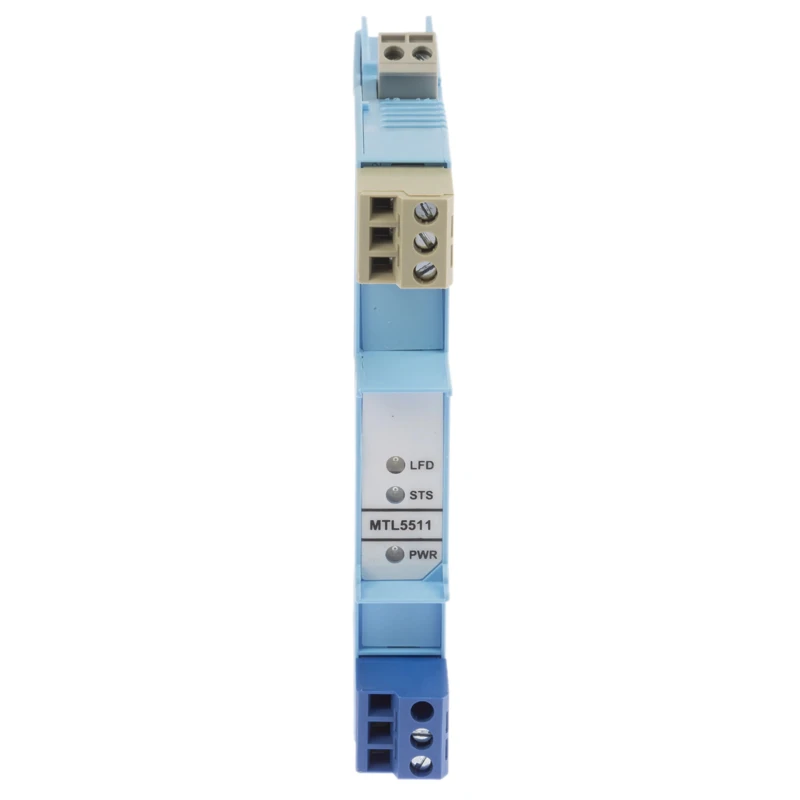

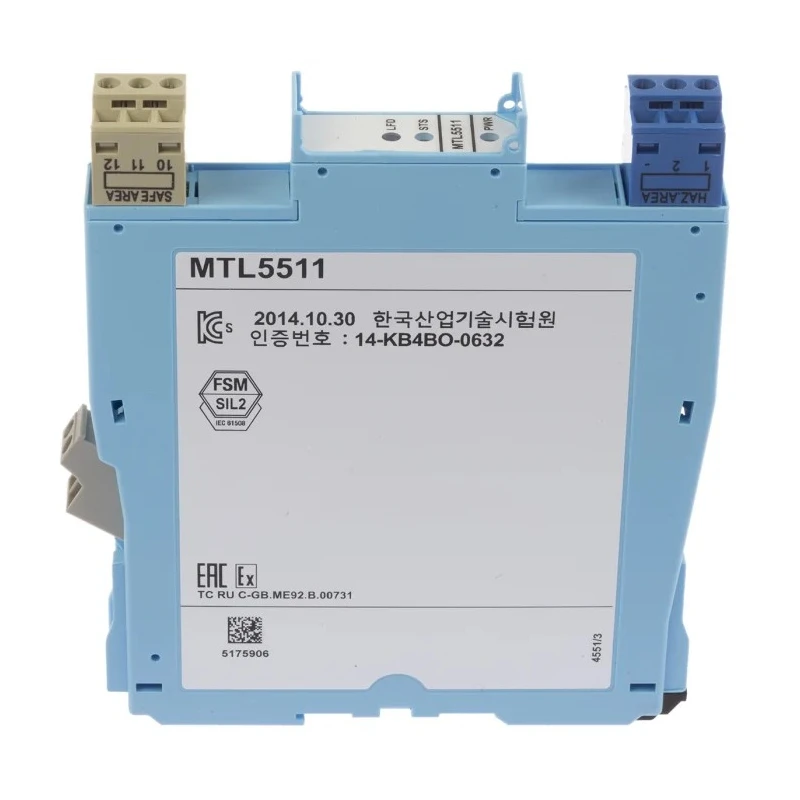

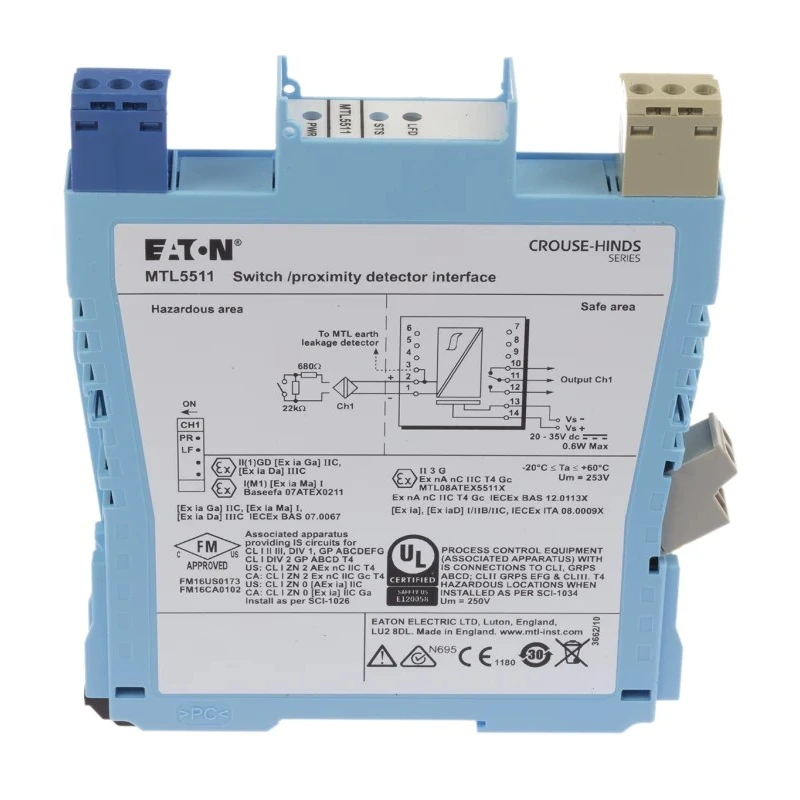

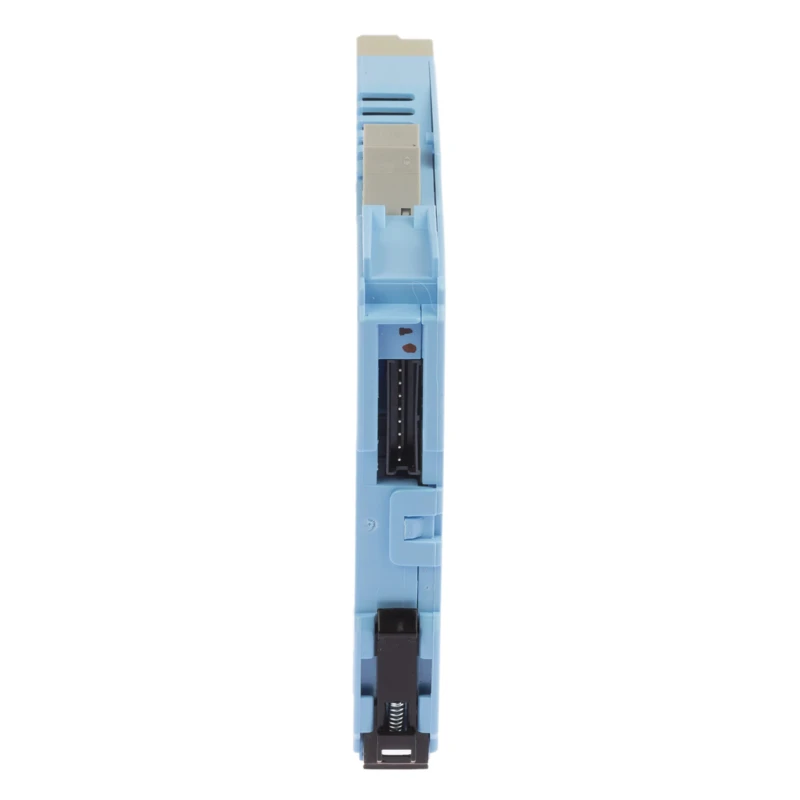

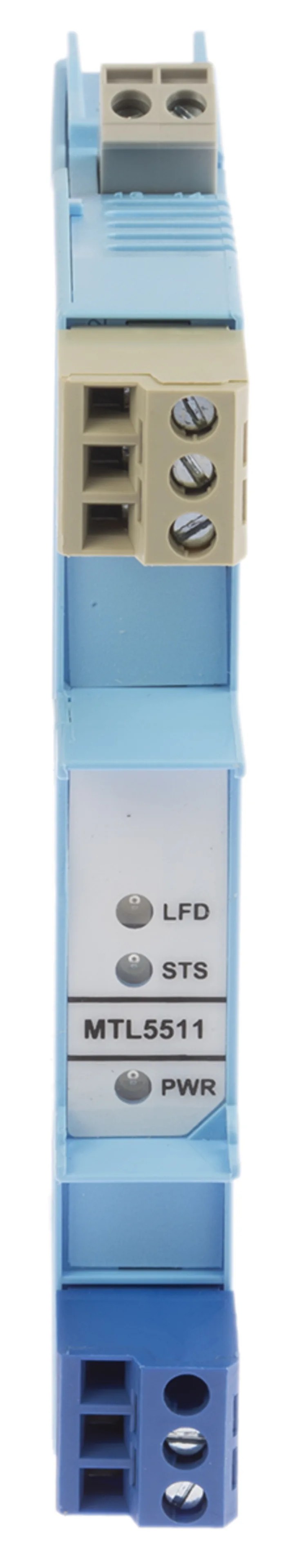

Eaton Zener Barrier, ATEX, Galvanic Barrier, DIN Rail Mount, 20-35 V DC, 14mA, IP54 MTL5511/RS
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Eaton |
| Model | MTL5511/RS |
| IP Rating | IP54 |
| Mount Type | DIN Rail |
| Series | MTL5500 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Number Of Channels | 1 |
| Supply Voltage | 20, 35V dc |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | ATEX, EN, IEC |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 703-7043Brand: EatonManufacturers Part No.: MTL5511/RSDistrelec Article No.: 30400852 |
| Barrier Type | Galvanic Barrier |
| Maximum Safety Current | 14mA |
| Maximum Safety Voltage | 10.5V |
Key Features
- Designed for hazardous area certification ATEX compliance.
- Single channel galvanic barrier with screw terminals for secure wiring.
- Maximum safety current of 14mA and maximum safety voltage of 10.5V.
- Wide operating temperature range from -20°C to 60°C suitable for demanding industrial environments.
- Protected to IP54 rating for dust and water splashes.
- Compact DIN rail mountable design enables easy installation and maintenance.
- Suitable for intrinsic safety interface units and explosion protection systems.
- Constructed to meet relevant standards including ATEX, EN, and IEC certifications.
Product Description
Eaton MTL5511/RS Zener Barrier, part of the MTL5500 series, is a galvanic isolation barrier designed for use in hazardous industrial environments. Operating from a 20 to 35 V DC supply voltage, this single channel device offers intrinsic safety by diverting excess electrical energy safely to ground, minimizing the risk of sparks or overheating that could lead to damage or injury.
This model features reliable screw terminals and DIN rail mounting capability for secure installation within control cabinets or enclosures. It supports a maximum safety current of 14mA and a maximum safety voltage of 10.5V, with an operating temperature range from -20°C to 60°C, making it suitable for harsh industrial conditions. The housing has an IP54 rating, providing protection against dust ingress and water splashes.
Certified for ATEX hazardous area use, the Eaton MTL5511/RS complies with key industry standards such as EN and IEC. Its compact 16mm width and plug-in connectors allow high packing density in instrumentation panels and simplify maintenance. The unit incorporates line-fault detection (LFD) for enhanced safety by detecting short circuits in field wiring.
MTL Zener Barriers deliver robust intrinsic safety for signal conditioning and isolation in process control, electrical automation, and industrial manufacturing environments. This galvanic barrier is suitable for controlling safe-area loads from switches or proximity detectors installed in hazardous zones, ensuring compliance and protection in demanding applications.
Certified for use in explosive atmospheres under ATEX, IECEx, FM, and CSA standards. Makes industrial control systems safer by isolating hazardous area instrumentation. Compact DIN rail mount design facilitates efficient panel assembly.
Wide operational temperature range suits varied environmental conditions. High packing density and low power consumption improve system economy. Reliable line fault detection helps identify electrical faults early. Ideal for electrical, automation, signal conditioning, and process control industries.
Explore Eaton products and other signal conditioning isolators in EnvMart for your industrial and hazardous area system needs.
Explore more products in our Zener & Galvanic Barriers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum safety current of the Eaton MTL5511/RS Zener barrier is 14mA.
This model operates within a temperature range of -20°C to 60°C, making it suitable for harsh industrial conditions.
It supports DIN rail mounting, facilitating easy installation within control cabinets or enclosures.
The Eaton MTL5511/RS has an IP54 rating, providing protection against dust ingress and water splashes.
This unit requires a supply voltage in the range of 20 to 35 V DC.
The MTL5511/RS is a single channel galvanic barrier.
This model is certified for hazardous area use under ATEX, IECEx, FM, and CSA standards.
It features screw terminals for secure wiring connections.
The maximum safety voltage for the Eaton MTL5511/RS is 10.5V.
The Eaton MTL5511/RS complies with relevant standards including ATEX, EN, and IEC.
This model is suitable for controlling safe-area loads from switches or proximity detectors installed in hazardous zones.
The Eaton MTL5511/RS is manufactured in the United Kingdom.
