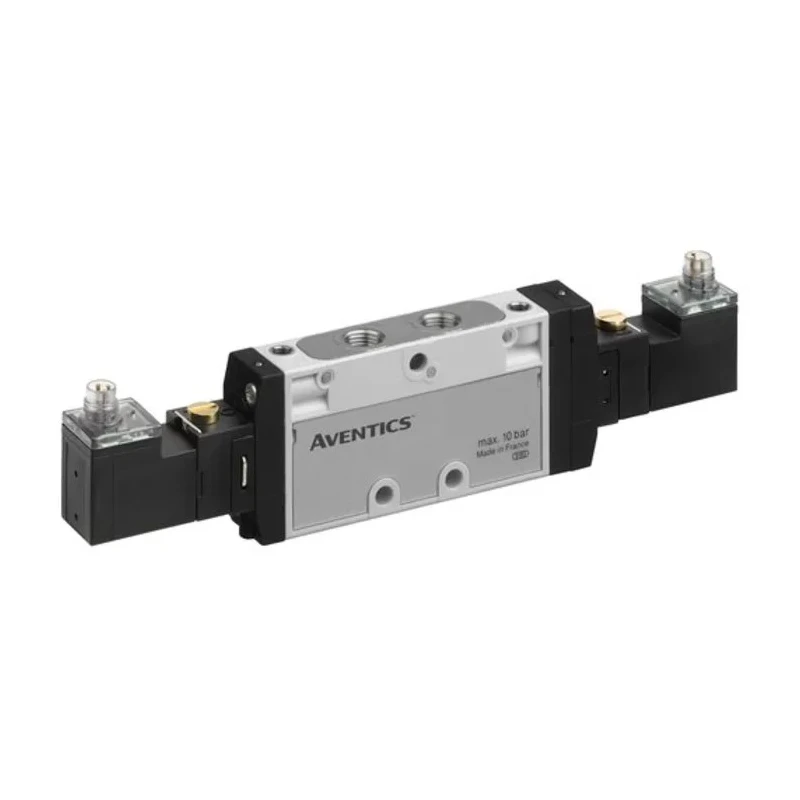

EMERSON ? AVENTICS Pneumatic Solenoid Valve Pilot G 1/8 TC08 Series 24V dc R422100976

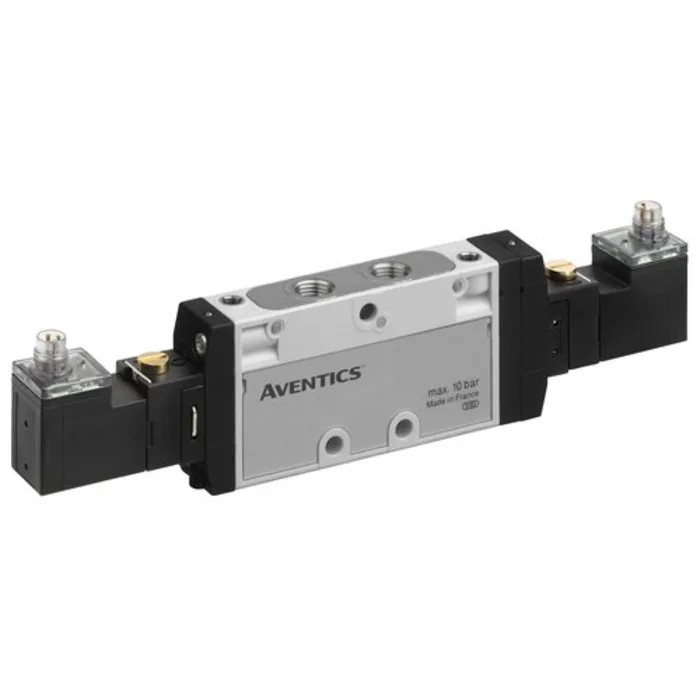

EMERSON ? AVENTICS R422100976 Pneumatic Solenoid Valve, part of the TC08 Series, is a high-performance valve suited for industrial pneumatic applications requiring precise flow control and durability. This pilot-actuated valve operates at 24V dc and delivers a 5/3 way valve function across 3 positions, enabling complex control schemes in automated systems.

The valve body is constructed from fibreglass reinforced polyamide, providing strength and resistance against wear in demanding environments. It supports a maximum operating pressure of 10 bar and a pilot pressure range from 3 to 10 bar, accommodating a wide range of pneumatic system designs. The 1/8 inch G port size and G 1/8 connection thread standard ensure compatibility with standard pneumatic fittings.

Seals manufactured from polyurethane and acrylonitrile butadiene rubber provide effective sealing under diverse operating conditions, including temperatures from -10°C to 50°C. The valve supports a maximum flow rate of 700 L/min, optimized for efficient pneumatic actuation with minimal pressure loss.

This TC08 series valve also features an external pilot option that enables its use in vacuum applications, alongside a manual override with detent for maintenance and manual operation. The valve is designed for continuous duty cycles with tight particle filtration up to 5 microns and oil content control between 0 and 5 mg/m3, ensuring system cleanliness and longevity.

Commonly used in industrial automation, manufacturing processes, fluid power control, and pneumatic machinery, the valve's manifold strip mounting and multi-port design allow for flexible installation in complex assemblies.

Features a robust fibreglass and polyamide body construction for durability. Operates with a maximum pressure of 10 bar and pilot pressure range of 3 to 10 bar. Supports a maximum flow rate of 700 L/min suitable for dynamic pneumatic controls.

Equipped with seals made from polyurethane and acrylonitrile butadiene rubber for enhanced wear resistance. Manifold strip mount type with 5 ports and 3 positions for versatile pneumatic applications. Designed for operation in temperatures ranging from -10°C to 50°C.

Includes manual override with detent and external pilot option for vacuum applications. Ensures 100% duty cycle performance and filters particles up to 5 μm with controlled oil content in compressed air. Explore the EMERSON ? AVENTICS range through EnvMart for advanced pneumatic solutions that meet rigorous industrial requirements and deliver reliable performance.
