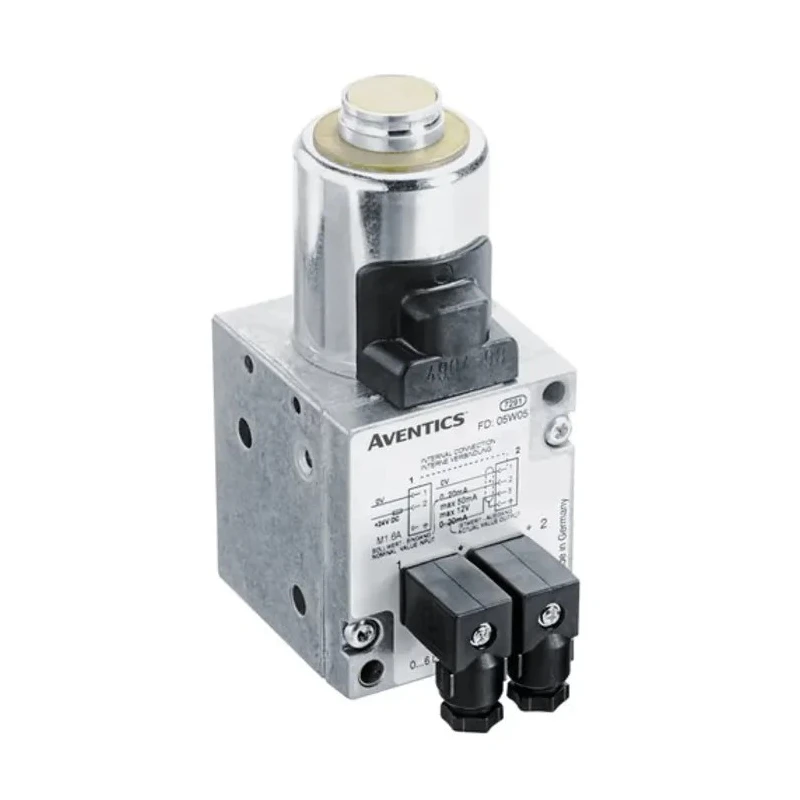

EMERSON ? AVENTICS Pneumatic Solenoid Valve 3/3 Solenoid Spring NPTF ISO Series 24V DC ED05

EMERSON AVENTICS ED05 Pneumatic Solenoid Valve is engineered for industrial pneumatic control applications requiring dependable 3/3 solenoid/spring operation. Featuring a die cast zinc body with rubber seals, this valve is robust and designed for manifold mounting with a 1/4 inch port size compatible with compressed air systems.

The valve operates at 24V DC and provides excellent control precision with a maximum operating pressure of 7 bar and maximum pilot pressure of 6 bar. It supports a maximum flow rate of 1000 L/min, catering to demanding pneumatic circuits in manufacturing, automation, HVAC, and fluid power systems.

The operating temperature range from 0°C to 70°C ensures reliable performance in typical industrial environments. The NPTF and ISO standardized connection threaded ports guarantee compatibility with existing pneumatic networks. Electrical connection through a C plug simplifies integration and maintenance.

The valve’s design complies with RoHS environmental standards, supporting sustainable industrial practices. Although it does not possess hazardous area certification, it is well suited to general industrial, laboratory, and production settings.

Manufactured in Germany, the product reflects advanced engineering standards, robustness, and precision. The ED05 series incorporates analogue control options suitable for 0-10V, 0-20mA, or 4-20mA signals with less than 0.06 bar hysteresis, and IP65 rating for protection against dust and water ingress.

This valve operates with a voltage of 24V DC and integrates solenoid/spring actuation for reliable control. The valve features a die cast zinc body and rubber seals ensuring durability and tight sealing. It supports a maximum operating pressure of 7 bar and a maximum pilot pressure of 6 bar.

The valve function is a 3/3 configuration with 3 ports for output, input, exhaust, and compressed air. Operating temperature ranges from 0°C to a maximum of 70°C, suitable for industrial environments. The connection thread standard is NPTF, ISO compliant providing secure and standard interfacing.

Electrical connection utilizes a C plug type to facilitate easy wiring and connection. This valve complies with RoHS standards and does not hold hazardous area certification. Designed and manufactured in Germany ensuring high quality and precision engineering.

Ideal for industrial pneumatic control, automation systems, and fluid power applications, the EMERSON AVENTICS ED05 valve ensures reliable operation and integration with manifold systems. Explore EnvMart's industrial valve range for compatible components and pneumatic accessories.
