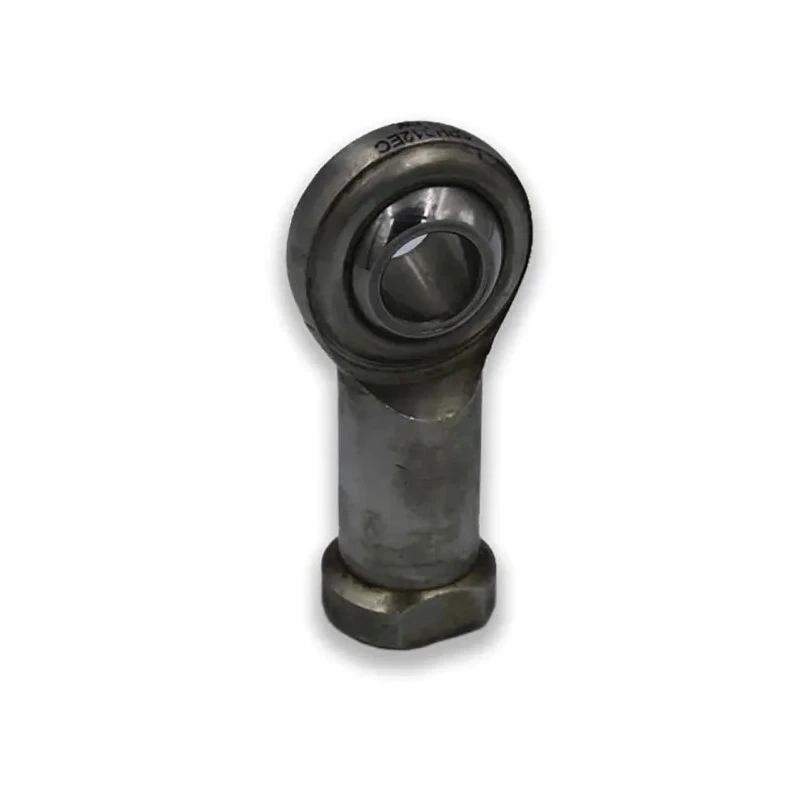

LDK M16 Female 304 Stainless Steel Rod End, 16mm Bore, Dynamic Load 21kN, Static Load 35.1kN SPHS16EC
Specifications
| Country of Origin | China |
|---|---|
| Brand | LDK |
| Material | 304 Stainless Steel |
| Model | SPHS16EC |
| Body | 304 Stainless steel |
| BALL | 440C Stainless Steel, heat treated, HRC56 min Precision ground, polished |
| Overall Width | 83mm |
| Outside diameter | 36mm |
| Connection Size | M16 Female |
| Bore Diameter | 16mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 185-2523Brand: LDKManufacturers Part No.: SPHS16EC |
| Thread Standard | Metric |
| Static Load Rating | 35.1kN |
| Dynamic Load Rating | 21kN |
| Connection Gender | Female |
| Race | PTFE composite |
| Sliding contact surfaces | Steel/PTFE composite |
| Product DetailsBall | 440C Stainless Steel, heat treated, HRC56 min Precision ground, polishedBody: 304 Stainless steelRace: PTFE compositeSliding contact surfaces: Steel/PTFE compositeRead more |
Key Features
- Constructed from durable 304 Stainless Steel for corrosion resistance.
- Bore diameter of 16mm designed for metric threading and connection.
- Dynamic load rating of 21kN provides reliable load handling.
- Static load rating of 35.1kN ensures strong structural integrity.
- Features a precision ground, heat-treated 440C Stainless Steel ball for longevity.
- PTFE composite race and sliding contact surfaces reduce friction and wear.
- Overall width of 83mm and outside diameter of 36mm for compact installation.
- Designed for female M16 metric thread connection compatible with standard fittings.
Product Description
LDK SPHS16EC M16 Female 304 Stainless Steel Rod End features a 16mm bore and is engineered for high-performance mechanical and industrial use. Its robust design includes a ball made from heat-treated, precision ground 440C Stainless Steel with a hardness of HRC56 minimum, ensuring exemplary durability and wear resistance. The rod end is constructed using 304 Stainless Steel for excellent corrosion resistance and body strength.
The PTFE composite race and sliding contact surfaces with steel/PTFE composite minimize friction and enable smooth operation, making this rod end suitable for high-precision rotary applications in industrial machinery, fluid power equipment, and mechanical assemblies. The connection size is metric M16 female, offering compatibility with standard metric threaded components.
Load capacities include a dynamic load rating of 21kN and a static load rating of 35.1kN, ensuring that the rod end can withstand demanding mechanical stresses. The compact dimensions with an outside diameter of 36mm and an overall width of 83mm facilitate integration into various mechanical systems.
Constructed from high-grade 304 Stainless Steel ensuring corrosion resistance. Ball made from heat-treated 440C Stainless Steel, precision ground and polished. PTFE composite race and steel/PTFE composite sliding surfaces reduce friction.
Metric M16 female thread provides standardized connection. Dynamic load rating of 21kN and static load rating of 35.1kN for durability. Compact dimensions with 36mm outside diameter and 83mm overall width. Suitable for industrial, mechanical, and fluid power applications requiring precision rotary components.
This Rod End is made in China and maintained under strict quality controls. It is ideal for use in mechanical linkages, industrial machinery assemblies, and fluid power systems. For comprehensive industrial bearing and rotary joint solutions, browse additional products under Rotary Bearings & Housing Units at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dynamic load rating of this rod end is 21kN, allowing it to handle significant mechanical stresses during operation.
It is constructed from 304 Stainless Steel, which provides excellent corrosion resistance and body strength.
The static load rating for this model is 35.1kN, ensuring strong structural integrity under stationary conditions.
The rod end has an overall width of 83mm and an outside diameter of 36mm, facilitating compact installation.
The bore diameter of this rod end is 16mm, designed for metric threading and connection.
This model features a female M16 metric thread connection, compatible with standard fittings.
The ball is made from heat-treated 440C Stainless Steel, precision ground and polished, with a minimum hardness of HRC56.
The PTFE composite race and sliding contact surfaces reduce friction and wear, enabling smooth operation in high-precision applications.
This rod end is suitable for high-precision rotary applications in industrial machinery, fluid power equipment, and mechanical assemblies.
This rod end is made in China and maintained under strict quality controls.
The thread standard for this rod end is metric, specifically designed for M16 female connections.
The sliding contact surfaces are made from a combination of steel and PTFE composite, enhancing durability and reducing wear.
