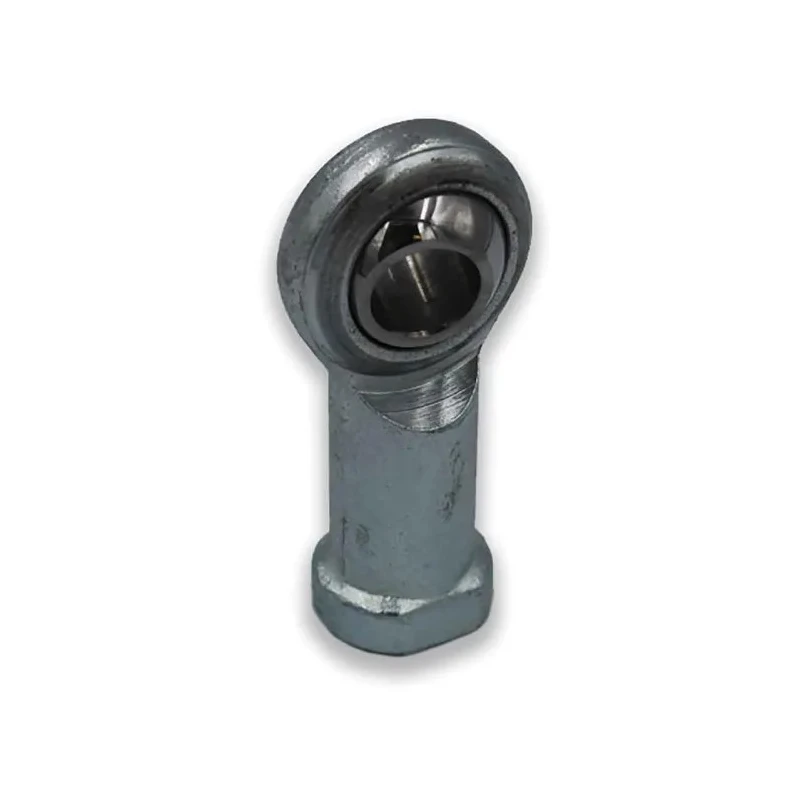

LDK M14 Female Carbon Steel Rod End 14mm Bore, Left Hand Thread, Clear Zinc Plated PHS 14ECL
Specifications
| Country of Origin | China |
|---|---|
| Brand | LDK |
| Material | Carbon Steel |
| Model | PHS 14ECL |
| Body | Carbon steel,clear Zinc plated |
| BALL | AISI 52100 bearing Steel, heat treated, HRC58-64, Precision ground, polished |
| Overall Width | 74mm |
| Outside diameter | 34mm |
| Connection Size | M14 Female |
| Bore Diameter | 14mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 185-2513Brand: LDKManufacturers Part No.: PHS 14ECL |
| Thread Standard | Metric |
| Static Load Rating | 28.2kN |
| Thread Direction | Left Hand |
| Dynamic Load Rating | 17.2kN |
| Connection Gender | Female |
| Race | PTFE composite |
| Sliding contact surfaces | Steel/PTFE composite |
| Product DetailsFemale Rod-End 14mm Bore M14 x 2 Left Hand ThreadBall | AISI 52100 bearing Steel, heat treated, HRC58-64, Precision ground, polishedBody: Carbon steel,clear Zinc plated.Race: PTFE compositeSliding contact surfaces: Steel/PTFE compositeRead more |
| Female Rod-End 14mm Bore M14 x 2 Left Hand ThreadBall | AISI 52100 bearing Steel, heat treated, HRC58-64, Precision ground, polishedBody: Carbon steel,clear Zinc plated.Race: PTFE compositeSliding contact surfaces: Steel/PTFE composite |
Key Features
- Constructed with carbon steel body featuring clear zinc plating for corrosion resistance.
- Ball made of AISI 52100 bearing steel, heat treated to HRC58-64 for high durability.
- Precision ground and polished ball surface ensures smooth operation.
- PTFE composite race and sliding contact surfaces reduce friction and wear.
- Designed for industrial rotary bearing applications requiring left hand thread connection.
- Outside diameter measures 34mm with overall width of 74mm for compact installation.
- Metric thread standard with M14 female connection size.
- Suitable for mechanical, hydraulic, pneumatic, and fluid power systems.
Product Description
LDK PHS 14ECL is a M14 Female Carbon Steel Rod End featuring a 14mm bore and a left hand thread, designed for precise industrial applications. The rod end's ball is crafted from AISI 52100 bearing steel, heat treated to achieve a hardness of HRC58-64, precision ground and polished to provide superior operational performance.
The body is constructed of carbon steel, enhanced with clear zinc plating to protect against corrosion and extend service life. The PTFE composite race and sliding contact surfaces minimize friction and wear, contributing to smoother rotary movements and enhanced durability.
This rod end is suitable for a wide range of mechanical applications including hydraulic and pneumatic systems, fluid power tools, and other industrial rotary bearing uses where reliable and precise connection is essential.
Its compact dimensions include an outside diameter of 34mm and an overall width of 74mm, optimized for efficient space utilization. The metric M14 female connection with left hand thread ensures compatibility with standard mechanical assembly needs.
The product is manufactured in China and adheres to no specific standards or approvals, emphasizing practical industrial use and cost-efficiency. Constructed with carbon steel body featuring clear zinc plating for corrosion resistance.
Ball made of AISI 52100 bearing steel, heat treated to HRC58-64 for high durability. Precision ground and polished ball surface ensures smooth operation. PTFE composite race and sliding contact surfaces reduce friction and wear.
Designed for industrial rotary bearing applications requiring left hand thread connection. Outside diameter measures 34mm with overall width of 74mm for compact installation. Metric thread standard with M14 female connection size.
Suitable for mechanical, hydraulic, pneumatic, and fluid power systems. Explore additional Rod End options in the Industrial Tools & Equipment category at EnvMart for comprehensive bearing and rotary connection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this rod end is 14mm.
The body is constructed from carbon steel and features clear zinc plating for corrosion resistance.
This model has a left hand thread direction.
The outside diameter measures 34mm.
The overall width of this rod end is 74mm.
The ball is made from AISI 52100 bearing steel, which is heat treated to a hardness of HRC58-64.
The sliding contact surfaces are made of steel and PTFE composite, which helps reduce friction and wear.
The static load rating is 28.2kN.
This rod end is suitable for mechanical, hydraulic, pneumatic, and fluid power systems.
It uses a PTFE composite race, which helps minimize friction.
This product is manufactured in China.
The dynamic load rating is 17.2kN.
