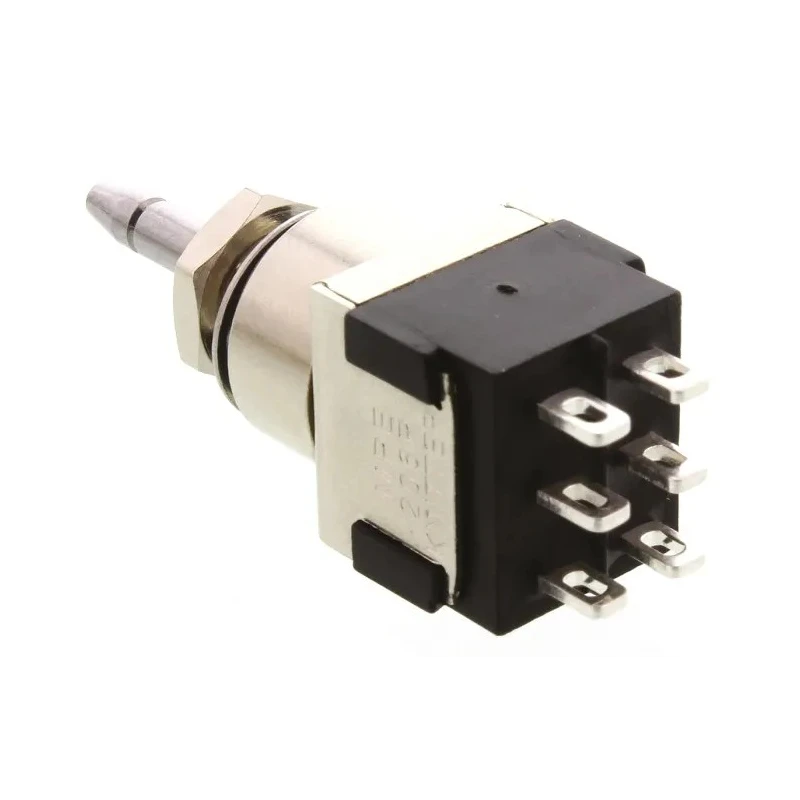

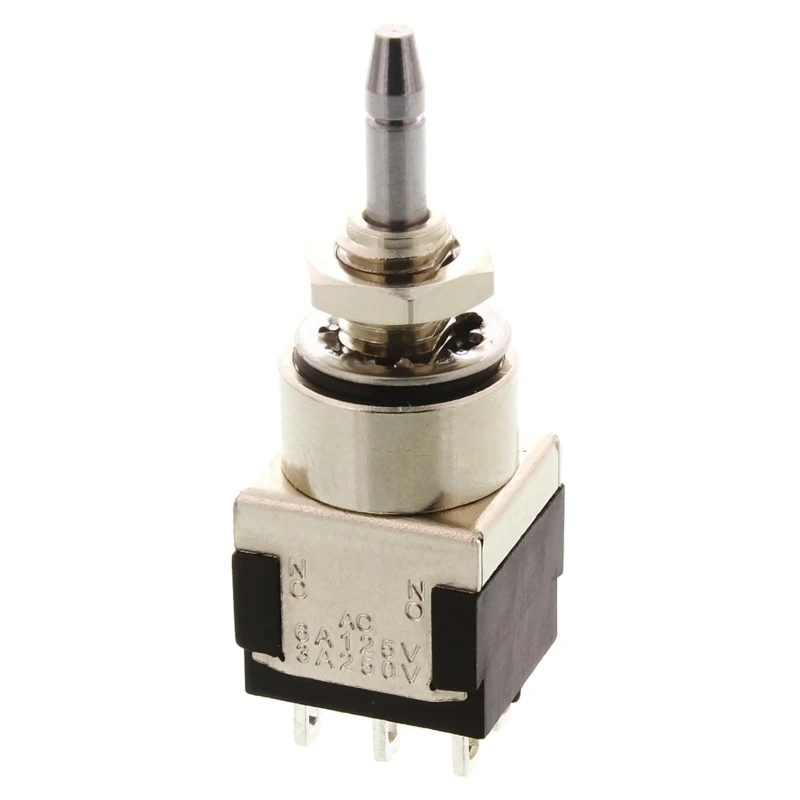

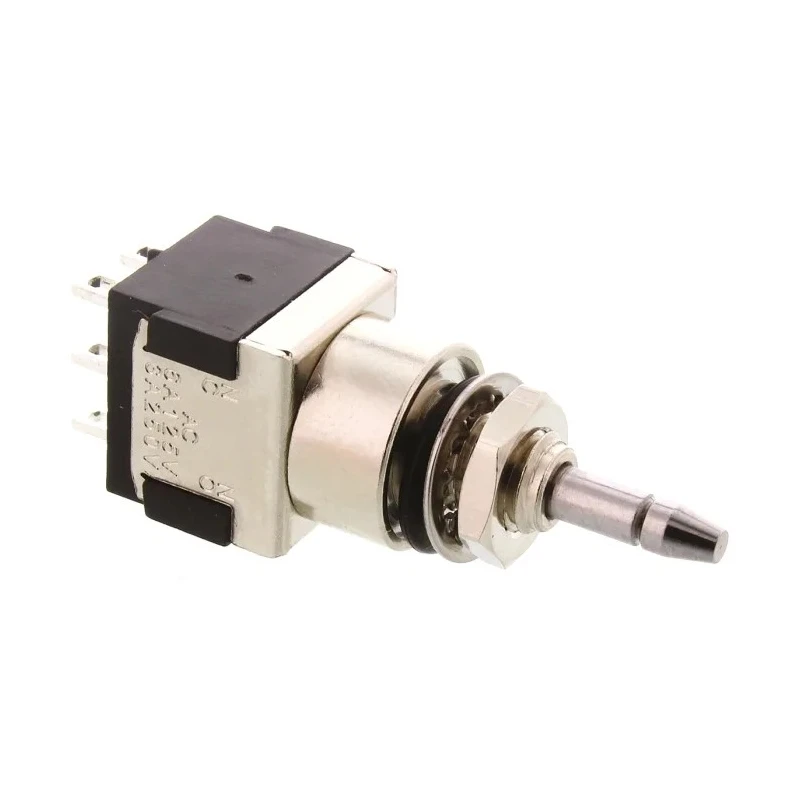

KNITTER-SWITCH MP Series Miniature Push Button Switch Momentary Panel Mount DPDT 5.6 mm Cutout White LED IP67 250 V MPE206R
Specifications
| Country of Origin | China |
|---|---|
| Brand | KNITTER-SWITCH |
| Model | MPE206R |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | MP |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-Off |
| Panel Cutout Size | 5.6 mm |
| Terminal type | Solder |
| Standards/Approvals | CSA, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 702-3460PBrand: KNITTER-SWITCHManufacturers Part No.: MPE206R |
| LED Colour | White |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Actuator Style | Plunger |
| Switch Contact Current | 3A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch operates with momentary on-off switching and has silver plunger actuator with solder terminals.
- It features a waterproof IP67 rating, suitable for demanding industrial and automation applications.
- Rated for 250 V AC with a maximum switch contact current of 3A, ensuring reliable electrical performance.
- Constructed with silver plated contacts and epoxy sealed flux-proof construction for durability and longevity.
- Designed to operate within a temperature range from -45°C to +140°C.
- Panel mounting design with a 5.6 mm cutout size allows ease of installation.
- Complies with CSA and UL standards for safety and quality assurance.
- Includes mounting hardware but actuator button must be ordered separately if needed.
Product Description
KNITTER-SWITCH MPE206R is a high-quality miniature push button switch from the MP Series designed for momentary, panel-mounted applications. Featuring a double pole double throw (DPDT) contact configuration and a compact 5.6 mm panel cutout size, this switch integrates a white LED illuminated actuator offering excellent visibility.
The switch is rated for 250 V AC and provides a switch contact current capacity of up to 3A, suitable for controlling various electrical circuits in industrial automation and electrical control panels. Its silver-plated contacts and epoxy-sealed flux-proof construction ensure low contact resistance and excellent durability under harsh environments.
This MPE series switch is waterproof with an IP67 rating, protecting the internal components from dust ingress and water immersion, making it ideal for industrial, manufacturing, and automation environments requiring ruggedness and reliability.
The plunger-style actuator with silver color complements its functional design while the solder terminal type allows secure, reliable wiring connections. The maximum operating temperature of the device is 120°C, providing versatility across diverse operating conditions.
The switch complies with CSA and UL standards, emphasizing its safety and quality credentials. However, the actuator button is not supplied and must be purchased separately, with a recommended 15 mm black button available as an accessory.
The momentary on-off switch operation offers precise control actions for industrial equipment. Panel mounting facilitates straightforward integration into control panels and machines. Waterproof IP67 rating enables use in harsh, dusty, or wet locations.
Silver plated contacts reduce electrical resistance and enhance lifespan. High temperature rating up to 120°C ensures reliable performance in demanding environments. Suitable for industrial automation, electrical machinery, HVAC controls, and other commercial applications.
Includes mounting hardware for easy installation and setup.
KNITTER-SWITCH products like the MPE206R provide dependable switching solutions widely used in electrical and automation industries. For a complete selection of Push Button Switches and accessories, explore the comprehensive range available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 120°C.
This switch has an IP67 rating, making it waterproof and suitable for harsh environments.
The switch features a double pole double throw (DPDT) contact configuration.
It requires a panel cutout size of 5.6 mm for installation.
It is rated for 250 V AC with a maximum switch contact current of 3A.
This model uses solder terminals for secure wiring connections.
Yes, it includes mounting hardware for easy installation.
It complies with CSA and UL standards for safety and quality assurance.
It features a silver plunger actuator, which must be ordered separately if needed.
This switch is suitable for industrial automation, electrical machinery, and HVAC controls.
The operation type of this switch is momentary on-off switching.
It is constructed with silver-plated contacts and epoxy-sealed flux-proof construction for durability.
