SMC Pneumatic Solenoid Valve 5/2 Spool Valve G 1/8 Port 24V DC 0.7 MPa Max Pressure SY5000

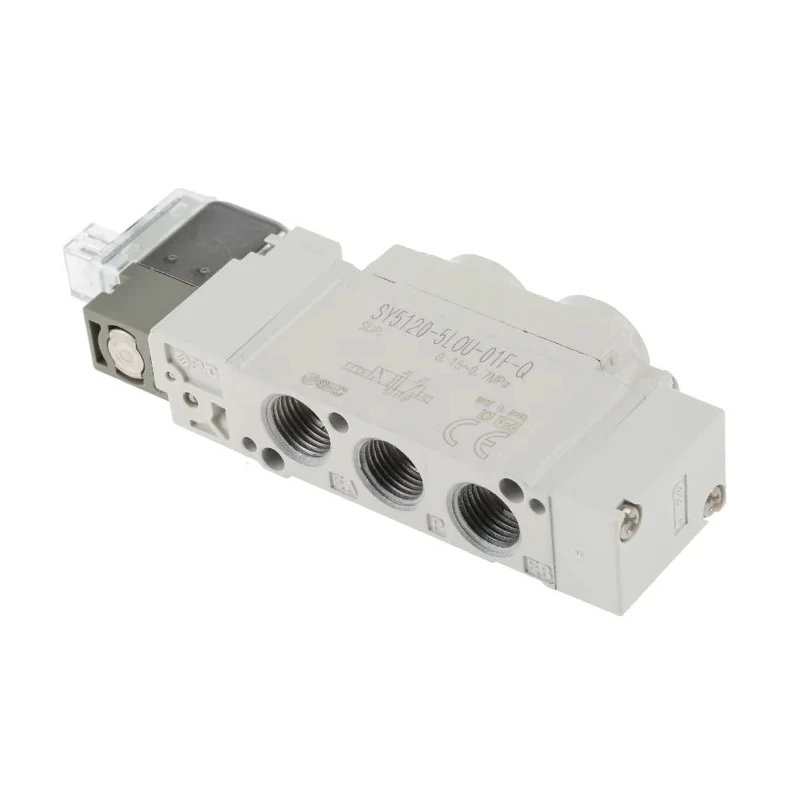

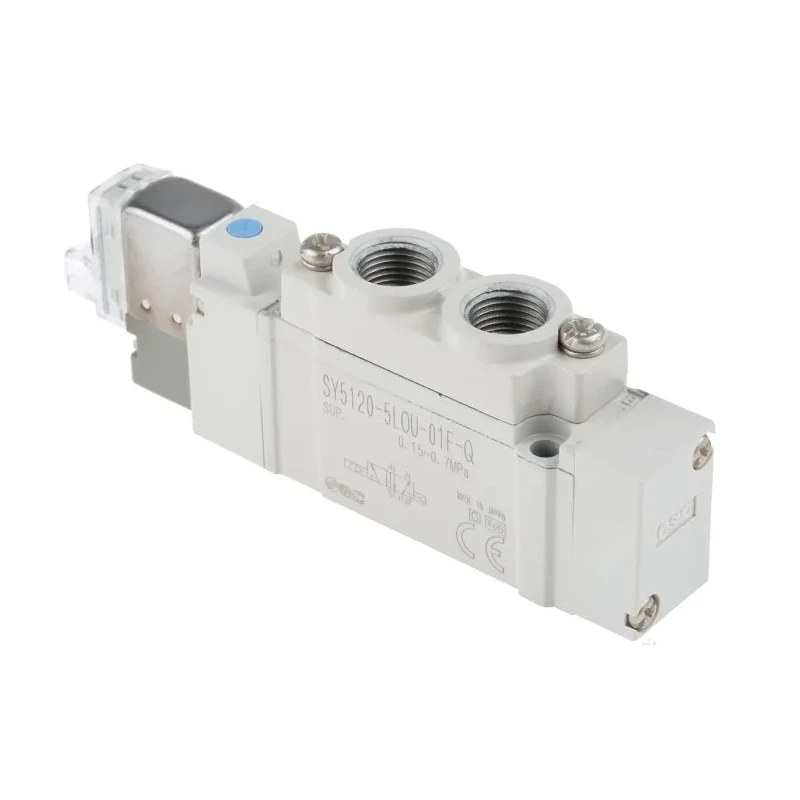

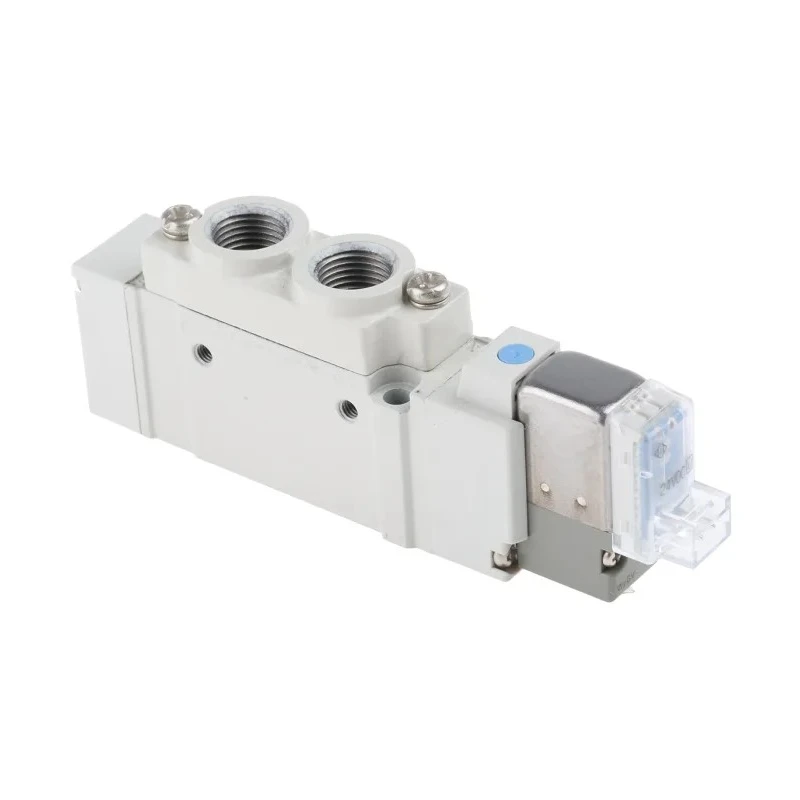

SMC SY5120-5LOU-01F-Q is a high-quality pneumatic solenoid valve from the SY5000 series, designed for controlled and efficient fluid management in industrial automation systems. This valve operates with a 24V DC solenoid and features a 5/2 spool valve function, enabling two positions with five ports to regulate pneumatic flow effectively.

Constructed with a robust die cast aluminium body, it offers excellent mechanical strength and resistance to wear, suitable for demanding industrial environments. The valve includes hydrogenated nitrile butadiene rubber seals to provide a reliable sealing solution against leaks and contamination.

Performance-wise, it accommodates a maximum operating pressure of 0.7 MPa and maintains effective operation within a broad temperature range of -10°C to +50°C. It requires a minimum pilot pressure of 0.15 MPa to ensure dependable switching action, delivering a maximum flow rate of 579 NL/min to support high throughput pneumatic systems.

The valve’s mount type is base and body ported, providing convenient installation options with standard G 1/8 threaded connections. Its compact length of 300 mm allows integration in constrained spaces while maintaining operational efficiency.

Maximum operating pressure: 0.7 MPa for robust performance. Die cast aluminium body ensures durability and longevity. Low solenoid power consumption at 0.4 W for cost-effective operation. Wide operational temperature from -10°C to +50°C suits diverse environments.

Minimum pilot pressure 0.15 MPa supports reliable actuation. High maximum flow rate of 579 NL/min for efficient pneumatic control. G 1/8 connection thread standardizes compatibility. 5/2 spool valve function enables versatile pneumatic control.

Rubber seals made from hydrogenated nitrile butadiene rubber enhance sealing performance. Compact 300 mm length for space-efficient installation.

This Pneumatic Solenoid Valve is ideally used in automated machinery, pilot-operated control mechanisms, and electrical-mechanical integrated systems requiring precise airflow control and high performance. It is suitable for applications in manufacturing, process automation, fluid power control, and pneumatic systems demanding reliable valve solutions.
