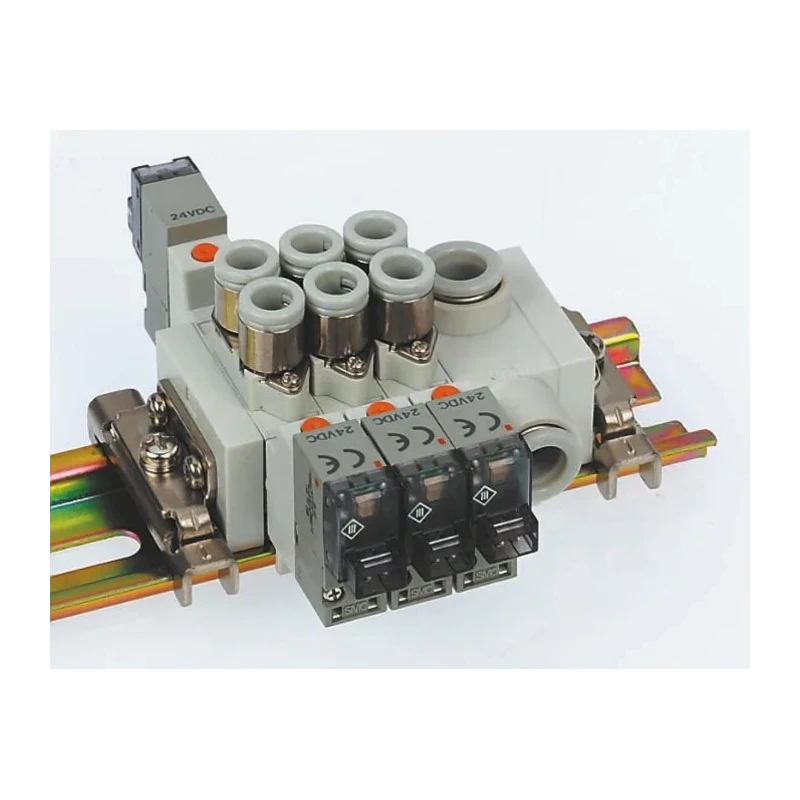

SMC Pneumatic Solenoid Valve Solenoid G 1/8, 24V dc, Die Cast Aluminium Body SY5000

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve Solenoid G 1/8, 24V dc, Die Cast Aluminium Body SY5000



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	0.7 Mpa
Model	SY5000
Mount Type	DIN Rail
Series	SY5000
Number Of Ports	5
Maximum Operating Temperature	50°C
Thread Size	1/8 in
Port Size	G 1/8
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Maximum Flow Rate	559NL/min
Standards/Approvals	CEIP65 (Dust proof)
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	701-3066Brand: SMCManufacturers Part No.: SY5160-5LOU-01F-Q
Connection Thread Standard	G 1/8
Minimum Pilot Pressure	0.15MPa
SMC Pneumatic Solenoid Valve - Solenoid G 1/8 SY5000 SeriesRS Stock No.	701-3066Brand: SMCManufacturers Part No.: SY5160-5LOU-01F-Q

Key Features

The valve body is made of durable die cast aluminium ensuring long service life.
It has a port size of G 1/8 and supports 5 ports in total.
Operates up to a maximum pressure of 0.7 MPa with a minimum pilot pressure of 0.15 MPa.
The valve supports a maximum flow rate of 559 NL/min and functions within -10°C to 50°C operating temperature.
It complies with CEIP65 dustproof standards suitable for industrial environments.
This valve series (SY5000) is easily configurable and expandable with low power consumption.
Mounting is simplified through a standard DIN Rail installation.
The product is manufactured in Japan maintaining high quality.

Product Description

SMC SY5160-5LOU-01F-Q is a high-quality pneumatic solenoid valve from the SY5000 series designed for precise control of pneumatic circuits. It operates with a 24V DC solenoid, ideal for automation in industrial, mechanical, and fluid power applications.

The valve body is constructed from die cast aluminium providing robustness and durability in demanding environments. It features a compact, lightweight form factor with a G 1/8 port size and five ports, making it suitable for complex pneumatic setups.

Designed for mounting on DIN Rails, it supports a maximum operating pressure of 0.7 MPa and a minimum pilot pressure of 0.15 MPa. The device can handle a high flow rate of 559 NL/min while maintaining reliable operation between -10°C and 50°C.

The SY5000 series boasts compliance with CEIP65 dustproof standards, ensuring protection against dust ingress and enhancing operational reliability in industrial environments such as manufacturing lines, automotive assembly, and pneumatic tool control systems.

This valve is part of SMC's modular DIN Rail mounted solenoid valve family, offering easy configuration, expandability, and energy-efficient performance with low power consumption. The solenoid valve is engineered to operate with compressed filtered air, either lubricated or non-lubricated, to extend valve life and ensure smooth performance.

The valve body is made of durable die cast aluminium ensuring long service life. It has a port size of G 1/8 and supports 5 ports in total. Operates up to a maximum pressure of 0.7 MPa with a minimum pilot pressure of 0.15 MPa.

The valve supports a maximum flow rate of 559 NL/min and functions within -10°C to 50°C operating temperature. It complies with CEIP65 dustproof standards suitable for industrial environments. This valve series (SY5000) is easily configurable and expandable with low power consumption.

Mounting is simplified through a standard DIN Rail installation. The product is manufactured in Japan maintaining high quality.

Applications for this Pneumatic Solenoid Valve include industrial automation, machine tooling, HVAC control systems, water treatment plants, and manufacturing assembly lines. This valve ensures reliable pneumatic actuation, enhancing process control and efficiency. Explore the Industrial Valves & Valve Fittings category on EnvMart for compatible pneumatic components.
