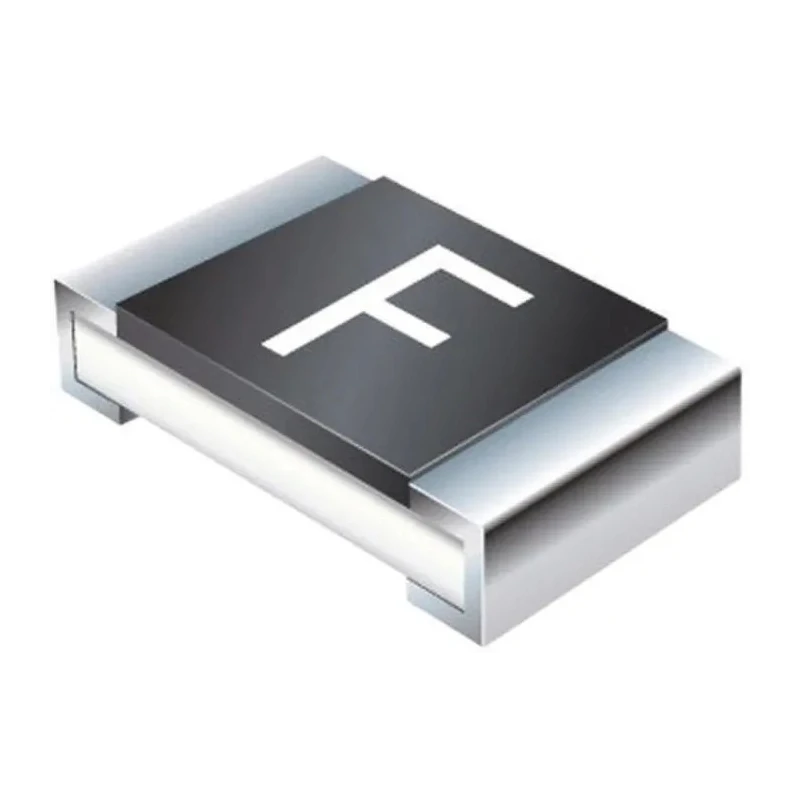

Bourns Non-Resettable Fast Acting Surface Mount Fuse 3.15A 24V DC Ceramic Body SF-0603F315-2

Bourns SF-0603F315-2 is a non-resettable, fast acting surface mount fuse designed for overcurrent protection in low voltage electronic circuits. The fuse features a compact 0603 series thin film chip design with a ceramic body that withstands high temperatures and mechanical stresses.

This fuse operates at 3.15 amperes and 24 volts DC, making it suitable for a wide range of industrial and commercial electronics applications such as alarm systems, audio and visual equipment, computer motherboards, portable telephones, power supplies, and medical devices.

The surface mount technology (SMT) allows efficient use of PCB space and facilitates automated assembly processes. Its low resistance of 0.02 ohms ensures minimal impact on circuit performance. The fuse is rated for a breaking capacity of 50 amperes, supporting reliable and safe circuit interruption during faults.

The fuse is built with tin plated nickel copper terminals to ensure excellent solderability and conductive properties. It complies with recognized safety standards, including UL 248-14, and adheres to RoHS environmental requirements.

Operating temperature ranges from -40°C to 105°C, allowing use in diverse environmental conditions. The 0.45 mm height and 1.6 mm depth dimensions provide a small footprint suited for modern electronics.

Fast acting fuse characteristics ensure rapid response to overcurrent conditions. Compact 0603 package size with a thin film chip fuse design. Ceramic body material provides durability and heat resistance. Surface mount technology suitable for space saving on circuit boards.

Rated breaking capacity of 50A for reliable circuit protection. Operational temperature range from -40°C to 105°C. Low resistance of 0.02Ω ensures minimal voltage drop. Terminals are tin plated nickel copper for excellent conductivity and solderability.

Compliant with UL 248-14 and RoHS standards ensuring safety and environmental compliance. Ideal for protecting high-value silicon ICs in alarm systems, audio/visual equipment, computer boards, and medical apparatus.

This Bourns fuse series is tailored to industrial, laboratory, and commercial electronics sectors requiring dependable, compact circuit protection components. Explore the Bourns fuse range and related electronic protection devices on EnvMart for your next project.
