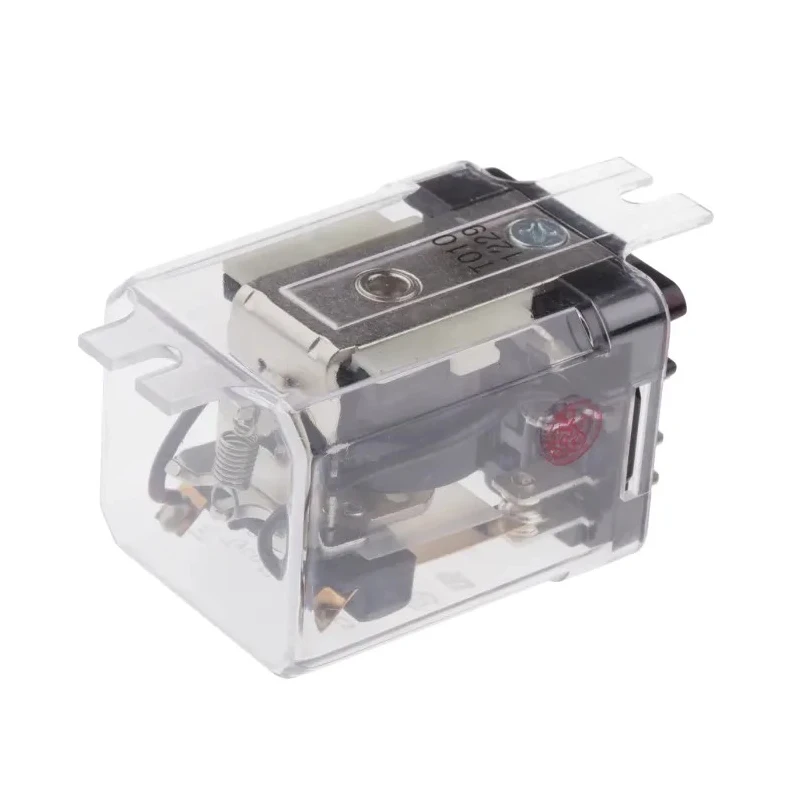

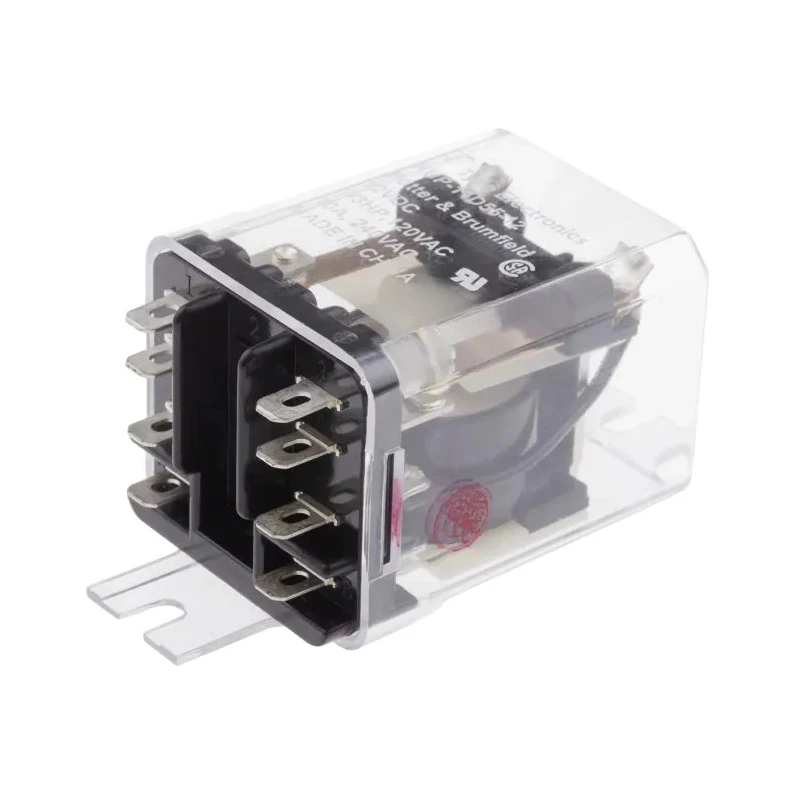

TE Connectivity Panel Power Relay 12V DC Coil 10A Switching Current DPDT KUP-11D55-12 5-1393117-6
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 55.6mm |
| Length | 73.7mm |
| Model | KUP-11D55-12 5-1393117-6 |
| Width | 38.9mm |
| Mount Type | Panel |
| Contact Material | Silver Alloy |
| Series | KUP |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -45°C |
| Switching Current | 10A |
| Terminal type | Quick Connect |
| Standards/Approvals | UL Recognised, RoHS Compliant, File LR15734, File E59244, File E22575, CSA certified |
| Pay online using | Or choose to pay later via bank transfer |
| Coil Resistance | 120Ω |
| Coil Voltage | 12V dc |
Key Features
- Designed for panel mounting with quick-connect terminals.
- Equipped with silver alloy contact material for reliable conductivity.
- Operates within a temperature range from -45°C to 70°C.
- KUP series enclosed relay with bracket mounting case.
- Class B coil insulation ensures durability and performance.
- Compact dimensions with length 73.7mm, width 38.9mm, and height 55.6mm.
- Suitable for industrial and electrical automation applications.
Product Description
TE Connectivity KUP-11D55-12 5-1393117-6 Panel Power Relay is a robust power relay designed for reliable switching in industrial and electrical automation applications. It features a 12V dc coil voltage and supports a switching current of 10 amperes with a DPDT (Double Pole Double Throw) contact configuration, making it ideal for complex control circuits.
The relay is part of the KUP series, featuring an enclosed design with a bracket mounting case that ensures secure installation on panels. Quick connect 187" (4.75mm) terminals facilitate easy and fast wiring connections, while the silver alloy contact material provides excellent electrical conductivity and long service life.
Operating temperature range extends from -45°C to 70°C, supporting use in harsh industrial environments. The coil resistance is rated at 120 ohms, and the component complies with multiple standards and certifications, including UL Recognition, RoHS compliance, and CSA certification, ensuring safety and environmental conformity.
The relay's compact size, with a length of 73.7mm, width of 38.9mm, and height of 55.6mm, allows it to fit easily into control panels without consuming excessive space. Its Class B coil insulation enhances reliability under electrical stress conditions.
Panel mounting power relay with DPDT contact configuration. 12V DC coil voltage and 10A switching current rating. Silver alloy contacts for optimal conductivity and durability. Quick connect solder terminals for simplified installation.
Wide operating temperature range from -45°C to 70°C. Compact dimensions suitable for industrial equipment panels. Certified to UL, RoHS, and CSA standards.
This TE Connectivity power relay is widely used in electrical control systems, automation machinery, industrial equipment, and HVAC controls. Its reliable switching performance and standardized certifications make it a preferred choice for system integrators and engineers.
Explore more TE Connectivity products and Power Relays at EnvMart for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 10 amperes, making it suitable for various control applications.
This model operates with a coil voltage of 12V DC.
The relay has compact dimensions of 73.7mm in length, 38.9mm in width, and 55.6mm in height.
The contacts are made of silver alloy, which provides reliable conductivity and long service life.
It is designed for panel mounting and features quick connect terminals for easy installation.
The relay is UL Recognised, RoHS compliant, and CSA certified, ensuring safety and environmental standards are met.
The coil resistance is rated at 120 ohms, which is important for determining the relay's power requirements.
This relay is part of the KUP series, known for its reliability in industrial applications.
It is suitable for use in electrical control systems, automation machinery, industrial equipment, and HVAC controls.
This relay is equipped with quick connect terminals, facilitating fast and secure wiring connections.
