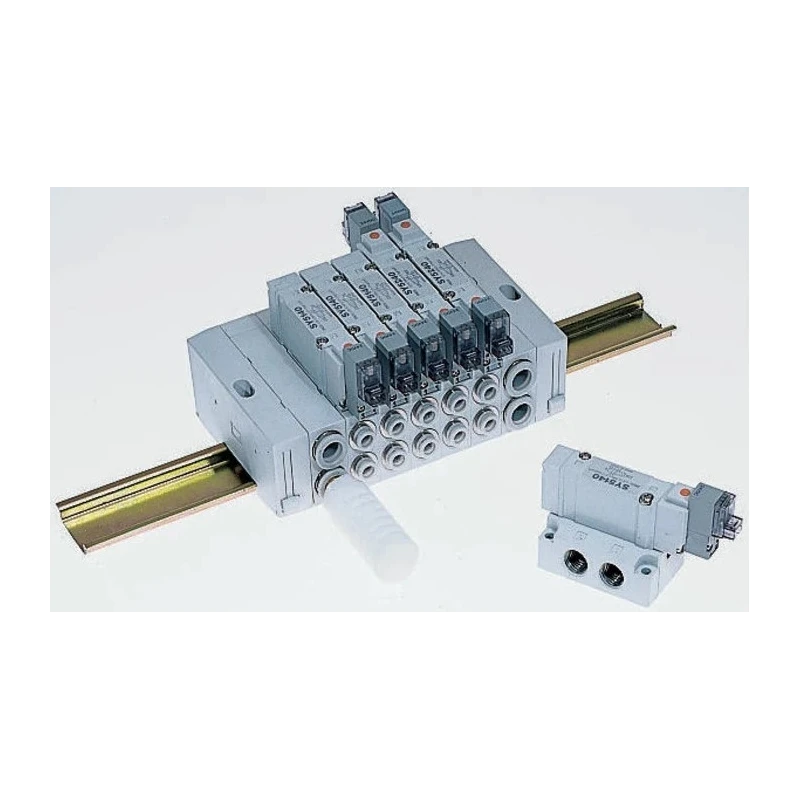

SMC Pneumatic Solenoid Valve 5/2 Solenoid Rc SY Series 230V AC Die Cast Aluminium Body SY5140-4DZ-Q

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 5/2 Solenoid Rc SY Series 230V AC Die Cast Aluminium Body SY5140-4DZ-Q



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	230V ac
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	0.7 Mpa
Model	SY5140-4DZ-Q
Mount Type	Manifold
Series	SY
Number Of Ports	5
Maximum Operating Temperature	50°C
Port Type	One-Touch Fitting
Number of Positions	2
Seal Material	Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Maximum Flow Rate	687NL/min
Standards/Approvals	RoHS
Connection Thread Standard	Rc
Minimum Pilot Pressure	0.15MPa
Valve Function	5/2
Electrical Connection Type	DIN Connector
Solenoid Type	Single

Key Features

The valve functions with 5 ports and 2 positions for versatile pneumatic control.
Features a single solenoid type actuation with DIN connector electrical connection.
Operates within a temperature range of -10°C to 50°C, using rubber seal material for reliable sealing.
Maximum flow rate of 687 NL/min with a low power consumption solenoid of 1.6VA.
Certified RoHS compliant and manufactured in Japan for assured quality and performance.

Product Description

SMC SY5140-4DZ-Q Pneumatic Solenoid Valve is a precision engineered 5/2 solenoid Rc valve designed for efficient pneumatic control in industrial, manufacturing, and automation applications. It features a durable die cast aluminium body combined with a manifold mount type design that ensures compact and secure fitting in various pneumatic systems.

Operating at 230V AC voltage, this valve offers a maximum operating pressure of 0.7 MPa and a maximum pilot pressure of 0.7 MPa, with a minimum pilot pressure requirement of 0.15 MPa. The valve includes 5 ports and 2 positions for accurate directional control of compressed air flow.

Its single solenoid actuation type with DIN connector electrical interface facilitates easy integration and control in complex pneumatic circuits. The rubber seal material ensures excellent leak-tight performance across a temperature range from -10°C to 50°C, suitable for a variety of environmental conditions.

The device achieves a maximum flow rate of 687 NL/min with an efficient solenoid power consumption of only 1.6 VA, promoting energy savings in continuous industrial operations. Manufactured in Japan, the valve complies with RoHS standards, making it an environmentally responsible component for pneumatic systems.

Typical industrial uses include automation, fluid power control, packaging machinery, assembly equipment, and general pneumatic valve applications where reliability and precision are paramount.

The valve functions with 5 ports and 2 positions for versatile pneumatic control. Features a single solenoid type actuation with DIN connector electrical connection. Operates within a temperature range of -10°C to 50°C, using rubber seal material for reliable sealing.

Maximum flow rate of 687 NL/min with low power consumption solenoid of 1.6VA. Certified RoHS compliant and manufactured in Japan for assured quality and performance. Explore EnvMart's comprehensive range of industrial pneumatic valves for enhanced control and automation solutions.
