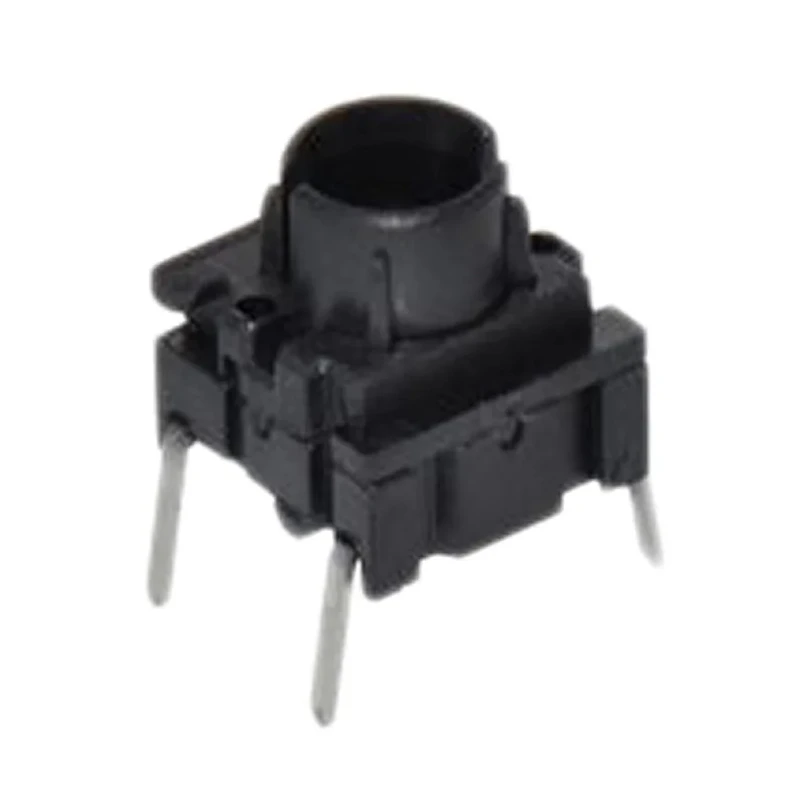

MEC IP67 Green Tactile Switch Side Cap, 6.5 mm, SPST 50mA 24 V dc, PCB
Specifications
| Country of Origin | Denmark |
|---|---|
| Brand | MEC |
| Height | 10mm |
| Length | 12.5mm |
| Model | IP67 |
| IP Rating | IP67 |
| Width | 10.4mm |
| Mount Type | PCB |
| Series | RA3 |
| Maximum Operating Temperature | 160°C |
| Contact Configuration | SPST |
| Switch Configuration | (On)-Off |
| Minimum Operating Temperature | -40°C |
| Terminal type | Terminal |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Green |
| Actuator Length | 6.5mm |
| Contact DC Voltage | 24V dc |
| Actuator Style | Side Cap |
| Actuator Orientation | Straight |
| Switch Contact Current | 50mA |
| Operating Force | 3.5N |
| Mechanical Life | 10000000Operations |
| IP67 Green Plunger Tactile Switch, SPST 50 mA @ 24 V dcBrand | MEC |
Key Features
- The switch features a green side cap actuator measuring 6.5 mm in length.
- It supports a contact current of 50 mA at 24 V dc, suitable for low power circuits.
- The device is sealed to IP67 standard for resistance against dust and water ingress.
- Mechanical life expectancy is rated at 10,000,000 operations ensuring durability.
- The switch operates with a force of 3.5 N and a momentary On-Off configuration.
- Operating temperature range spans from -40°C to 160°C for harsh environments.
- The switch is designed for PCB mounting with a straight actuator orientation.
Product Description
MEC RA3FTH920 IP67 Green Tactile Switch Side Cap is a high-quality, durable tactile switch designed for precise momentary action in electronic applications requiring reliable switching with current ratings of 50 mA at 24 V dc. Featuring a green side cap actuator of 6.5 mm length, it offers excellent tactile feedback and mechanical resilience.
This switch is sealed to IP67 standard, ensuring full protection against dust and immersion in water which makes it ideal for industrial, automation, and outdoor applications. The device operates efficiently under a wide temperature range from -40°C to 160°C, making it suitable for harsh environments.
The RA3FTH920 has a mechanical life rating of 10 million operations, demonstrating exceptional longevity for demanding use cases. With a mounting type designed expressly for PCB installation and a straight actuator orientation, it integrates seamlessly into circuit designs.
Its 3.5 N operating force and momentary normally open (SPST) contact configuration provide reliable switch activation with consistent performance. The illuminated actuator enhances visibility and ease of use in control panels and embedded electronics.
The switch features a green side cap actuator measuring 6.5 mm in length. It supports a contact current of 50 mA at 24 V dc, suitable for low power circuits. The device is sealed to IP67 standard for resistance against dust and water ingress.
Mechanical life expectancy is rated at 10,000,000 operations ensuring durability. The switch operates with a force of 3.5 N and a momentary On-Off configuration. Operating temperature range spans from -40°C to 160°C for harsh environments.
The switch is designed for PCB mounting with a straight actuator orientation.
This tactile switch is ideal for industrial automation, electronic control systems, instrumentation, and demanding environmental conditions. Its robust construction and high ingress protection rating ensure reliable operation in manufacturing, laboratory, and commercial electronics applications.
Explore more Tactile Switch options and products in the MEC range on EnvMart for precise and durable switching solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch supports a contact current of 50 mA at 24 V dc, making it suitable for low power circuits.
It is sealed to IP67 standard, providing resistance against dust and immersion in water.
The operating temperature range spans from -40°C to 160°C, suitable for harsh environments.
This model is designed for PCB mounting with a straight actuator orientation.
The actuator measures 6.5 mm in length.
The mechanical life expectancy is rated at 10,000,000 operations, ensuring longevity.
It features a momentary On-Off configuration with SPST contact arrangement.
The switch operates with a force of 3.5 N for activation.
This model complies with RoHS standards.
The switch has a width of 10.4 mm and a height of 10 mm.
It is ideal for industrial automation, electronic control systems, and applications in demanding environmental conditions.
The switch features a terminal type connection.
