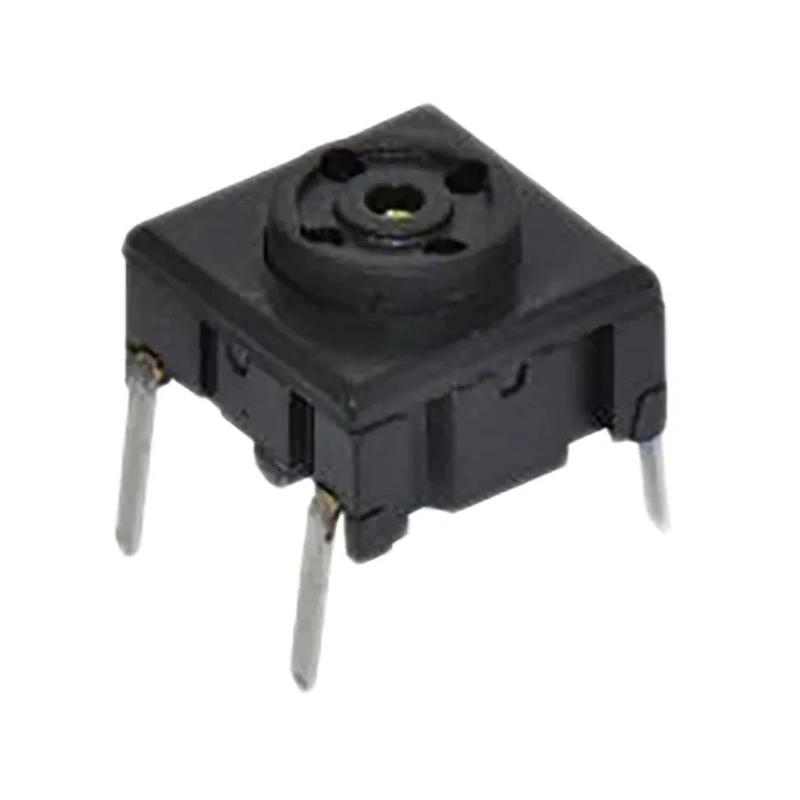

MEC IP67 Black Tactile Switch Flat 6.5 mm SPST 50mA 24 V dc PCB
Specifications
| Country of Origin | Denmark |
|---|---|
| Brand | MEC |
| Height | 8mm |
| Length | 12.5mm |
| Model | IP67 |
| IP Rating | IP67 |
| Width | 6.4mm |
| Mount Type | PCB |
| Series | RA3 |
| Maximum Operating Temperature | 160°C |
| Contact Configuration | SPST |
| Switch Configuration | (On)-Off |
| Minimum Operating Temperature | -40°C |
| Terminal type | Terminal |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Actuator Length | 6.5mm |
| Contact DC Voltage | 24V dc |
| Actuator Style | Flat |
| Actuator Orientation | Straight |
| Switch Contact Current | 50mA |
| Operating Force | 3.5N |
| Mechanical Life | 10000000Operations |
| MEC IP67 Black Tactile Switch Flat, 6.5 mm, SPST 50mA 24 V dc, PCBBrand | MEC |
Key Features
- The switch contact configuration is SPST with momentary operation.
- It supports a maximum contact current of 50mA at 24 V dc.
- The actuator style is flat with straight orientation.
- Operates between -40°C and 160°C with a mechanical life of 10 million operations.
- This sealed switch ensures reliable performance in harsh environments.
Product Description
MEC RA3ETH9-08-0 is a high-quality tactile switch with an IP67 ingress protection rating, suitable for industrial and commercial applications requiring durability and reliability.
Featuring a black flat actuator with a length of 6.5 mm, it is designed for PCB mounting. The switch operates as a Single Pole Single Throw (SPST) with momentary, (On)-Off functionality handling currents up to 50mA at 24 V dc.
This switch has a compact form factor with dimensions 12.5mm length, 6.4mm width, and 8mm height, making it ideal for tight-electronics enclosures.
The device supports an operating temperature range from -40°C to 160°C and withstands a mechanical life cycle of 10 million operations. The operating force required is 3.5 Newtons, providing tactile feedback suited for precision control panels and instrumentation.
Manufactured in Denmark under the RA3 series, the switch complies with RoHS standards, ensuring environmentally safe materials. This tactile switch is well-suited for electronics, automation, instrumentation, and control systems requiring a reliable sealed momentary switch with a long lifespan.
The switch contact configuration is SPST with momentary operation. It supports a maximum contact current of 50mA at 24 V dc. The actuator style is flat with straight orientation. Operates between -40°C and 160°C with a mechanical life of 10 million operations.
This sealed switch ensures reliable performance in harsh environments. Explore more Tactile Switches from MEC and other premium brands at EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum contact current of 50mA at 24 V dc.
The actuator style is flat with a straight orientation, measuring 6.5 mm in length.
It operates between -40°C and 160°C, making it suitable for a wide range of environments.
The switch has a mechanical life of 10 million operations.
This tactile switch has an IP67 ingress protection rating, ensuring it is sealed against dust and water.
It is designed for PCB mounting, making it suitable for various electronic applications.
The contact configuration is Single Pole Single Throw (SPST) with momentary operation.
The operating force required is 3.5 Newtons, providing tactile feedback for operation.
It complies with RoHS standards, ensuring that it is made from environmentally safe materials.
The dimensions are 12.5 mm in length, 6.4 mm in width, and 8 mm in height.
This tactile switch is suitable for electronics, automation, instrumentation, and control systems.
It is manufactured in Denmark under the RA3 series.
