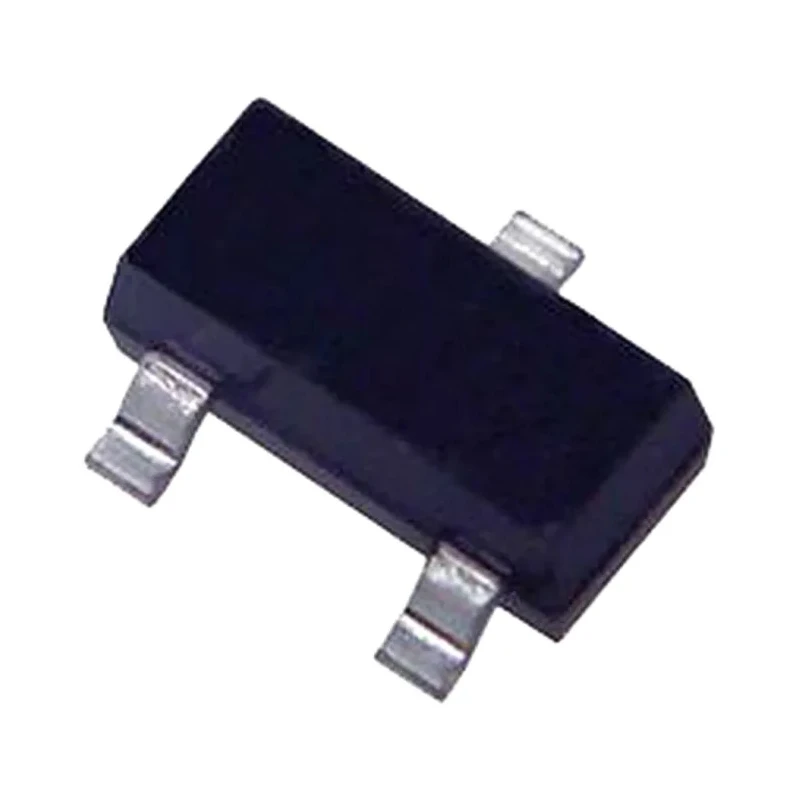

Microchip Voltage Output Temperature Sensor Surface Mount Analogue ±1°C Accuracy 3-Pin SOT-23 MCP9700T
Specifications
| Country of Origin | Thailand |
|---|---|
| Accuracy | ±1°C |
| Brand | Microchip |
| Height | 950μm |
| Length | 2.9mm |
| Model | MCP9700T |
| Width | 1.3mm |
| Mount Type | Surface |
| Output type | Voltage |
| Series | MCP9700T |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | -40°C |
| Interface Type | Analogue |
| Pin Count | 3 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.3V |
| Sensor Gain | 10mV/°C |
Key Features
- Operates on supply voltage range from 2.3V to 5.5V, suitable for diverse electronics applications.
- Provides a linear voltage output proportional to temperature with sensor gain of 10mV/°C.
- Wide operating temperature range from -40°C to 125°C ensures reliability under extreme conditions.
- Compact dimensions of 2.9mm length, 1.3mm width, and 950μm height enable space-saving PCB layouts.
- Designed to resist parasitic capacitance and to drive large capacitive loads effectively.
- Ideal for temperature monitoring in office equipment, home appliances, hard disk drives, and battery packs.
- Surface mount design facilitates high-volume manufacturing processes.
- Thailand origin assures quality manufacturing standards.
Product Description
Microchip MCP9700T series voltage output temperature sensor delivers accurate analogue temperature sensing with ±1°C accuracy. Its surface mount 3-pin SOT-23 package features compact dimensions of 2.9mm length, 1.3mm width, and 950μm height, making it suitable for high-density PCB assemblies.
Operating over a wide temperature range of -40°C to 125°C with supply voltage between 2.3V and 5.5V, the MCP9700T sensor provides a linear voltage output that changes at 10mV per degree Celsius, enabling precise temperature measurement in various environments.
A key strength of this sensor is its resistance to parasitic capacitance effects and capability to drive large capacitive loads, enhancing signal integrity in complex circuits.
Applications include temperature monitoring and control in office equipment, home appliances, entertainment systems, hard disk drives, battery packs, and other electronic devices requiring accurate temperature sensing. Its analogue output interface simplifies integration with microcontrollers and data acquisition systems.
Manufactured in Thailand, the MCP9700T upholds strict quality standards and reliability for industrial and commercial use. Operates with supply voltage range of 2.3V to 5.5V. 3-pin surface mount SOT-23 package ensures compact installation.
Accuracy of ±1°C enables precise temperature monitoring. Wide operating temperature span from -40°C to 125°C. Outputs analogue voltage proportional to temperature with 10mV/°C gain. Resistant to parasitic capacitance; drives large capacitive loads.
Suitable for diverse applications including electronics instrumentation and battery monitoring. Produced under strict manufacturing standards in Thailand.
This sensor is an excellent choice for industrial, laboratory, and consumer electronics applications requiring precise and reliable temperature data. Browse the Electronics & Electricals > Sensors > Temperature Sensor category for related devices on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP9700T temperature sensor has an accuracy of ±1°C, allowing for precise temperature measurements.
This model operates over a wide temperature range from -40°C to 125°C, making it suitable for various environments.
The MCP9700T operates with a supply voltage range of 2.3V to 5.5V, accommodating a variety of electronic applications.
It provides a linear voltage output that changes at a rate of 10mV per degree Celsius, proportional to the temperature.
The MCP9700T has compact dimensions of 2.9mm in length, 1.3mm in width, and 950μm in height, suitable for high-density PCB layouts.
This model features a 3-pin configuration, facilitating easy integration into electronic circuits.
The MCP9700T is packaged in a SOT-23 surface mount configuration, which is ideal for high-volume manufacturing.
Yes, this sensor is designed to resist parasitic capacitance effects, allowing it to drive large capacitive loads effectively.
It is suitable for temperature monitoring in office equipment, home appliances, hard disk drives, and battery packs, among other electronic devices.
The MCP9700T is manufactured in Thailand, ensuring adherence to strict quality standards.
This model utilizes an analogue interface, simplifying integration with microcontrollers and data acquisition systems.
The sensor gain of the MCP9700T is 10mV/°C, which allows for a clear voltage output corresponding to temperature changes.
