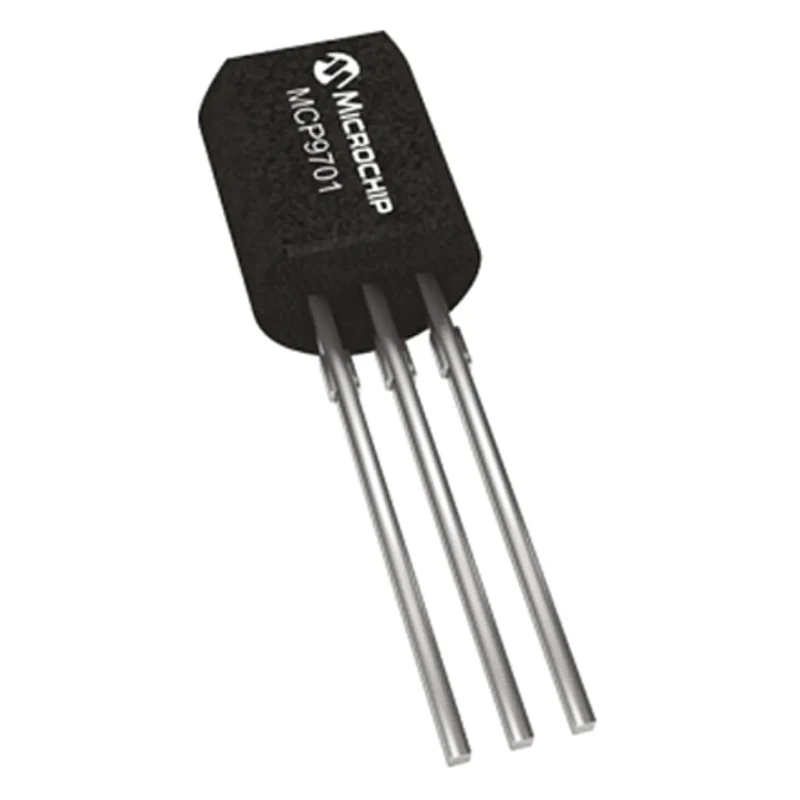

Microchip Voltage Output Temperature Sensor, Analogue, Through Hole Mount, 3-Pin TO-92, ±2°C Accuracy MCP9701
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±2°C |
| Brand | Microchip |
| Height | 4.62mm |
| Length | 4.71mm |
| Model | MCP9701 |
| Width | 3.62mm |
| Mount Type | Through Hole |
| Output type | Voltage |
| Series | MCP9701 |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-92 |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | -10°C |
| Interface Type | Analogue |
| Pin Count | 3 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3.1V |
| Sensor Gain | 19.5mV/°C |
Key Features
- Operates from 3.1V to 5.5V supply voltage.
- Temperature measurement range from -10°C to 125°C.
- Provides analogue voltage output with sensor gain of 19.5mV/°C.
- Compact TO-92 package with 4.71mm length and 3.62mm width.
- Designed for reliable temperature monitoring in electronic and industrial systems.
- Resistant to parasitic capacitance and capable of driving large capacitive loads.
- Suitable for applications in office equipment, home appliances, hard disk drives, and battery packs.
- Simple 3-pin interface enables straightforward integration.
Product Description
Microchip MCP9701 is a voltage output temperature sensor with analogue interface designed for precise and reliable temperature monitoring. Featuring a through hole mount with a 3-pin TO-92 package, it operates effectively across a temperature range from -10°C to 125°C and supply voltage from 3.1V to 5.5V. The device outputs an analogue voltage linear to temperature with a sensor gain of 19.5mV/°C and ±2°C accuracy.
This sensor series offers excellent resistance to parasitic capacitance and the capability to drive large capacitive loads, making it suitable for multiple industrial and laboratory applications. Common uses include temperature monitoring for office equipment, home appliances, entertainment systems, hard disk drives, and battery packs where precise temperature monitoring is critical for device performance and safety.
The compact TO-92 package with dimensions of approximately 4.71mm length, 3.62mm width, and 4.62mm height allows integration into tight spaces on printed circuit boards. Its 3-pin configuration simplifies connection and mounting on the PCB.
The Microchip MCP9701 Temperature Sensor is ideal for engineering applications requiring steady and accurate temperature measurement with a straightforward voltage output interface. Its robust design supports automotive-standard environments, although this specific model does not comply with automotive certification.
Operates with supply voltage from 3.1V to 5.5V. Temperature measuring range from -10°C up to 125°C. Analogue voltage output with 19.5mV/°C sensor gain. Through hole mount TO-92 package with 3 pins. Compact size ensures easy placement on electronic assemblies.
Excellent stability and resistance to parasitic capacitance. Widely used in electronic components, power and connectors, and sensor IC industries. Useful for designing applications in laboratory instruments, industrial tools, and electronic systems.
Explore more Microchip products and detailed technical documents on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP9701 operates with a supply voltage range from 3.1V to 5.5V.
This temperature sensor measures temperatures from -10°C to 125°C.
The sensor has an accuracy of ±2°C.
It provides an analogue voltage output with a sensor gain of 19.5mV/°C.
The TO-92 package has dimensions of approximately 4.71mm in length, 3.62mm in width, and 4.62mm in height.
The MCP9701 features a 3-pin configuration for easy integration.
This model uses a through hole mount type.
Yes, it is capable of driving large capacitive loads and has excellent resistance to parasitic capacitance.
It is suitable for applications in office equipment, home appliances, hard disk drives, and battery packs.
The interface type for this sensor is analogue.
The maximum operating temperature for this model is 125°C.
The minimum operating temperature is -10°C.
