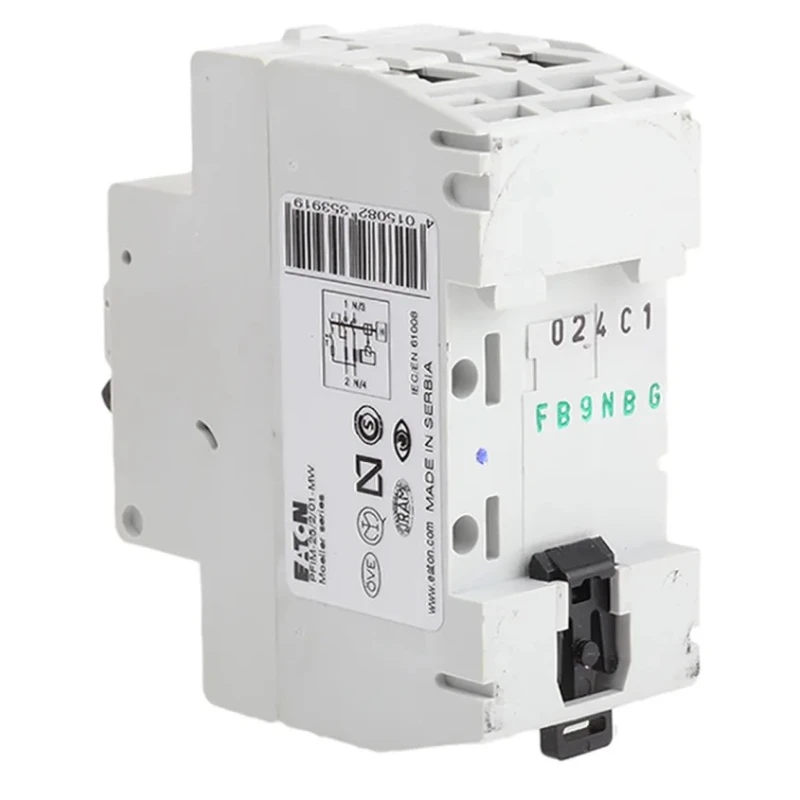

Eaton Xboard Series Residual Current Circuit Breaker, 25A, 1-Pole, 100 mA Trip Sensitivity, Type AC 235391 PFIM-25/2/01-MW
Specifications
| Country of Origin | India |
|---|---|
| Range | Xboard |
| Brand | Eaton |
| Height | 80mm |
| Model | 235391 PFIM-25/2/01-MW |
| Depth | 70.5mm |
| Width | 35mm |
| Mount Type | DIN Rail |
| Current Rating | 25A |
| Series | Xboard |
| Terminal type | Screw |
| Breaking Capacity | 500A |
| Number of Poles | 1 |
| Standards/Approvals | IEC/EN 61008, RoHS |
| Rated AC Voltage | 230V ac |
| Tripping Characteristics | Type AC |
| Reset Actuator Type | Lever |
| Trip Sensitivity | 100mA |
| Break Time | Instantaneous |
| Earth Leakage Protection Type | AC |
| Moeller 2P 25 A RCD, Trip Sensitivity 100mABrand | Moeller |
Key Features
- Designed for residential and commercial applications requiring earth leakage protection.
- Features instantaneous break time for rapid response to faults.
- Mounts securely on DIN rail with screw terminal connections.
- Complies with IEC/EN 61008 standards and RoHS certification.
- Compact dimensions of 80mm height, 70.5mm depth, and 35mm width optimize panel space.
- Equipped with lever reset actuator for easy manual operation.
- Earth leakage protection type is AC suitable for detecting alternating current leakage.
Product Description
Eaton 235391 PFIM-25/2/01-MW Residual Current Circuit Breaker is engineered for high-performance protection in electrical distribution systems. Rated at 25 amps with a single pole configuration, it offers sensitive earth leakage detection at 100 mA trip sensitivity, ensuring personnel safety and equipment protection.
This device features a Type AC tripping characteristic and instantaneous break time, enabling swift disconnection upon detection of leakage currents. The breaker supports up to 500 amps breaking capacity and operates on a rated AC voltage of 230V, fitting seamlessly into residential and commercial electrical installations.
Installation is simplified with DIN rail mounting and screw terminal connections, facilitating secure and reliable wiring. Measuring 80mm in height, 70.5mm in depth, and 35mm in width, the compact design enables efficient panel layouts.
The product conforms to IEC/EN 61008 standards and is RoHS compliant, reflecting adherence to international safety and environmental requirements. Its earth leakage protection type is specifically for AC current leakage and includes a lever reset actuator for convenient manual reset following a trip event.
This Residual Current Circuit Breaker is part of Eaton's Xboard series, known for robust build quality and reliable performance, suitable for spares and replacements in F&G Concept 2000 consumer units.
Designed for residential and commercial earth leakage protection. Instantaneous break time for rapid fault isolation. DIN rail mount with screw terminals for secure installation. Compliant with IEC/EN 61008 and RoHS standards.
Compact size facilitates panel integration. Lever reset actuator offers easy manual reset. 500A breaking capacity with Type AC tripping characteristic.
Ideal for use in electrical, commercial, and residential applications requiring reliable earth leakage protection. Explore more Eaton products and related circuit breakers in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 25A.
It features a trip sensitivity of 100 mA, providing sensitive earth leakage detection.
This circuit breaker has Type AC tripping characteristics, suitable for detecting alternating current leakage.
It supports a breaking capacity of up to 500A.
The dimensions are 80mm in height, 70.5mm in depth, and 35mm in width.
It mounts securely on a DIN rail and features screw terminal connections for reliable wiring.
The rated AC voltage for this circuit breaker is 230V.
It complies with IEC/EN 61008 standards and is RoHS certified.
It is equipped with a lever reset actuator for easy manual operation after a trip event.
This model is designed for residential and commercial applications requiring earth leakage protection.
It features an instantaneous break time for rapid response to faults.
The country of origin for this product is India.
