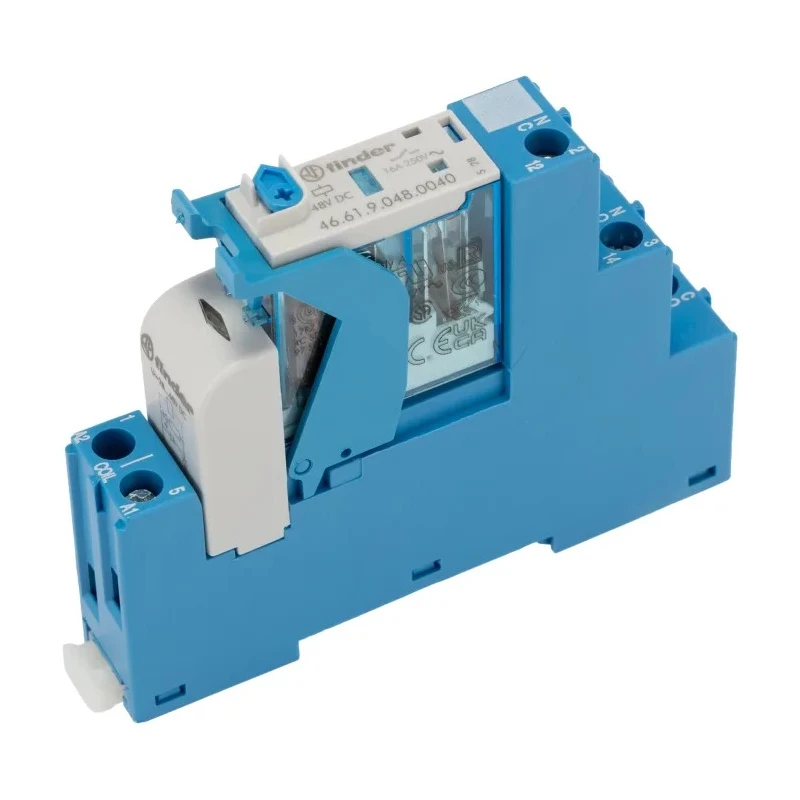

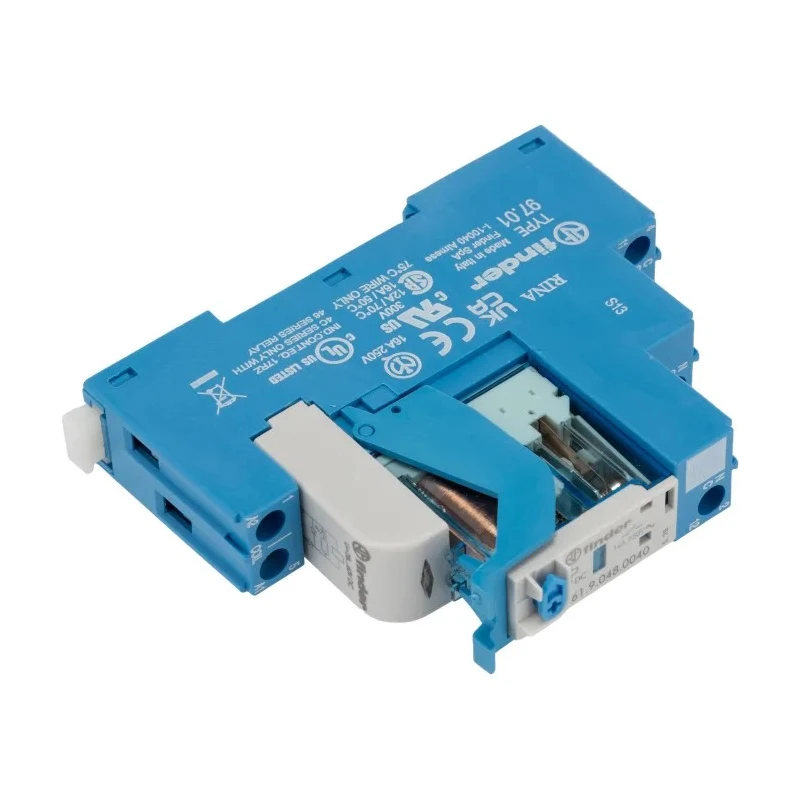

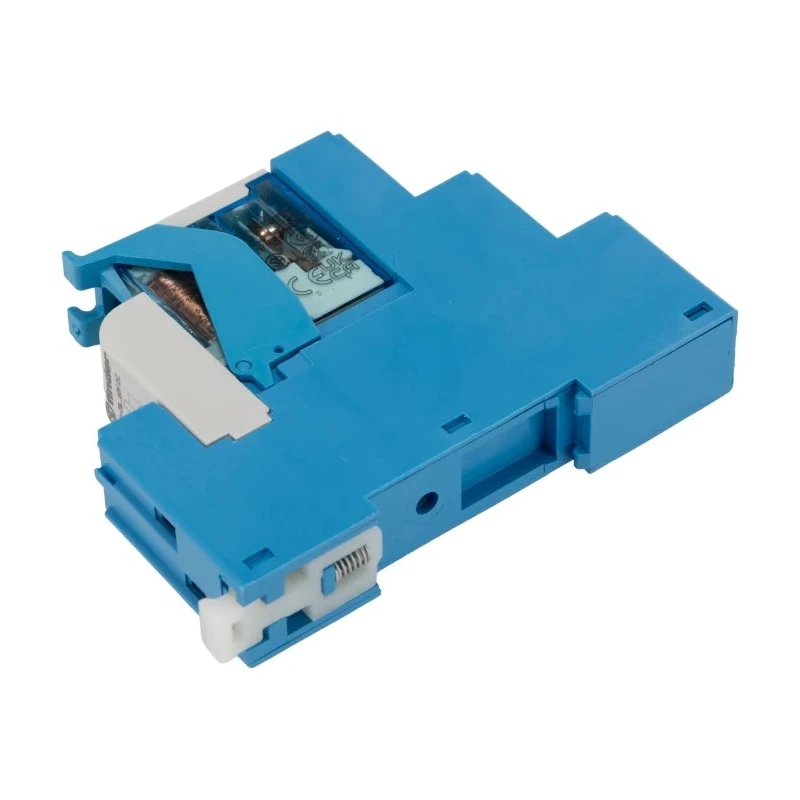

Finder 4C Series Interface Relay DIN Rail Mount 48V DC Coil SPDT Contact Configuration 16A Switching 4C.01.9.048.0050SPA

Finder 4C.01.9.048.0050SPA is a high-performance Interface Relay designed for industrial and electrical automation applications. Featuring a DIN rail mount, this relay includes a 48V DC coil and a single-pole double-throw (SPDT) contact configuration to provide versatile switching capabilities.

This relay supports load currents up to 16A, accommodating both AC and DC applications with high switching voltages up to 250V AC and 48V DC, making it ideal for rigorous industrial environments. Its silver alloy contacts ensure excellent conductivity and resistance to wear, contributing to the relay's durability.

The device maintains reliable operation across a wide temperature range from -40°C to +70°C, making it apt for harsh conditions such as escalator control, tunnel lighting management, hoist and crane operations, carousel warehouses, and electrical distribution panels.

Installation is streamlined through screw terminal connections and DIN rail mounting, allowing for secure physical and electrical contact with minimal effort. The compact size (82.9mm height, 15.8mm length, 64.6mm width) maximizes space efficiency within control cabinets.

Rated for 100,000 electrical cycles, this relay sustains long operational life coupled with compliance to key electrical standards, including cULus, CE, EAC, and DVE, ensuring safety and regulatory adherence.

Designed for DIN rail mounting to simplify installation. Supports switching current up to 16A for various load requirements. Employs silver alloy contacts for durability and excellent conductivity. Wide operating temperature range from -40°C to 70°C for harsh environments.

Features screw terminals for secure and reliable electrical connections. Compact dimensions optimize control panel space usage. Rated for 100,000 electrical cycles to ensure long operating life. Complies with multiple industrial electrical safety standards.

Suitable for escalator control, tunnel lighting, hoists, cranes, and distribution panels.

Environmentally and industrially compliant, Finder Interface Relays provide dependable switching solutions for automation, manufacturing, HVAC control, and electrical distribution systems. Browse EnvMart for more relays and interface control products optimized for your industrial application needs.
