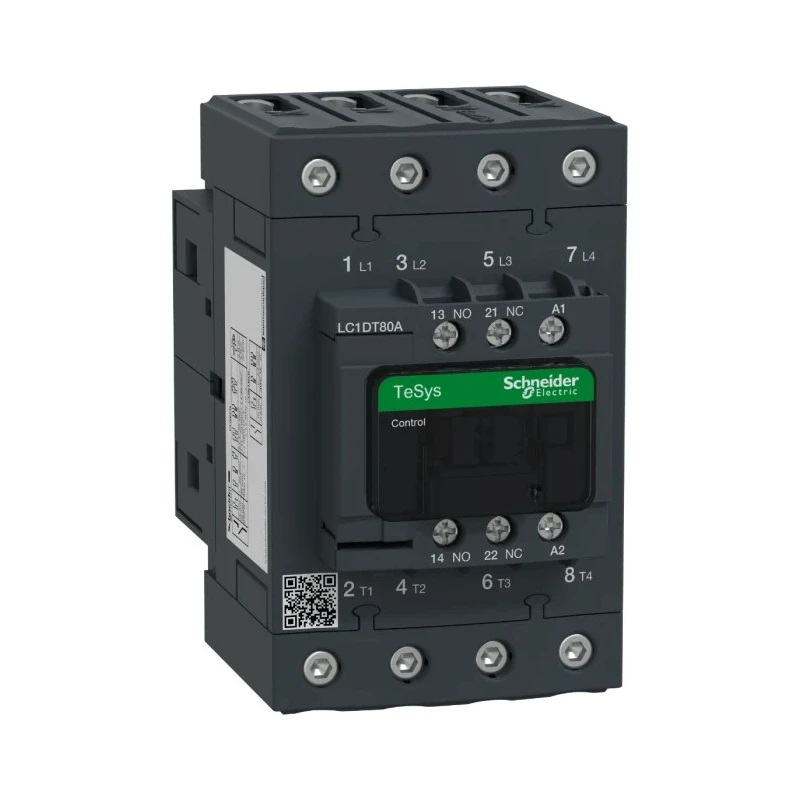

Schneider Electric LC1D Series 4-Pole Contactor, 230V AC Coil, 80A, 10.2W Power, 690V AC Contact Voltage LC1DT80AP7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Load Control |
| Length | 122mm |
| Model | LC1DT80AP7 |
| Depth | 120mm |
| Width | 70mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 10.2W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | CSA, UL, RoHS, IEC, EAC, CCC |
| Contact Voltage | 690V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 80A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 80A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 4 |
Key Features
- Features a 4-pole configuration suitable for robust electrical control setups.
- Operates at a coil voltage of 230V AC with a power rating of 10.2W.
- Supports a maximum contact current of 80A ensuring high load capacity.
- Designed for DIN rail mounting with compact dimensions of 122mm (L) x 70mm (W) x 120mm (D).
- Includes 1 NO and 1 NC auxiliary contact for enhanced control options.
- Rated for contact voltage up to 690V AC supporting industrial voltage requirements.
- Operates reliably within -40°C to +60°C temperature range for harsh environments.
- Suitable for motor control, resistive loads, HVAC systems, and power distribution panels.
Product Description
Schneider Electric LC1DT80AP7 is a 4-pole contactor designed for efficient load control in industrial and commercial electrical installations. Operating at a coil voltage of 230V AC with a power rating of 10.2W, this contactor handles contact currents up to 80A and supports contact voltages of up to 690V AC.
Its robust design ensures reliable performance in demanding environments, tolerating operating temperatures from -40°C to +60°C. The contactor supports load control applications such as motor control and resistive loads, making it ideal for automation systems, power distribution units, and HVAC systems.
The device offers easy installation via DIN rail mounting, with compact dimensions of 122mm length, 70mm width, and 120mm depth. Equipped with 1 normally open (NO) and 1 normally closed (NC) auxiliary contact, it enhances operational flexibility in complex control circuits.
Schneider Electric LC1DT80AP7 complies with international standards including CSA, UL, RoHS, IEC, EAC, and CCC, ensuring high quality, safety, and sustainable manufacturing practices.
Features a 4-pole configuration suitable for robust electrical control setups. Operates at coil voltage of 230V AC with a 10.2W power rating. Maximum contact current rating of 80A for heavy-duty applications. DIN rail mountable for secure and space-efficient installation.
Includes 1 NO and 1 NC auxiliary contact for added functionality. Rated for contact voltage of 690V AC ensuring versatile use cases. Wide operating temperature range from -40°C to +60°C for reliable performance. Suitable for motor control, resistive loads, HVAC systems, and power distribution.
Meets CSA, UL, RoHS, IEC, EAC, and CCC standards for assurance of quality and safety.
This contactor is recommended for industrial, commercial, and HVAC applications requiring reliable and efficient load switching. Browse Schneider Electric and Automation & Control Gear categories on EnvMart for more high-quality electrical control products.
Explore more products in our Contactors & Auxiliary Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact current rating of the LC1DT80AP7 is 80A, making it suitable for heavy-duty applications.
This contactor operates at a coil voltage of 230V AC.
The power rating of the LC1DT80AP7 is 10.2W.
The dimensions of this model are 122mm in length, 70mm in width, and 120mm in depth.
It is rated for a contact voltage of up to 690V AC.
The operational temperature range for the LC1DT80AP7 is from -40°C to +60°C.
This contactor is designed for DIN rail mounting, allowing for secure and space-efficient installation.
It includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact for enhanced control options.
This model is suitable for motor control, resistive loads, HVAC systems, and power distribution panels.
It complies with CSA, UL, RoHS, IEC, EAC, and CCC standards, ensuring quality and safety.
The primary function of this contactor is load control in industrial and commercial electrical installations.
The LC1DT80AP7 features a 4-pole configuration, suitable for robust electrical control setups.
