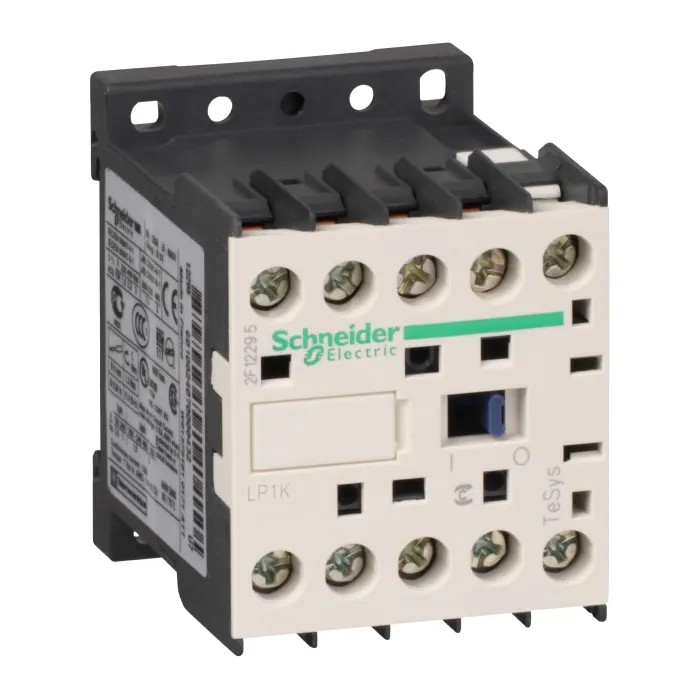

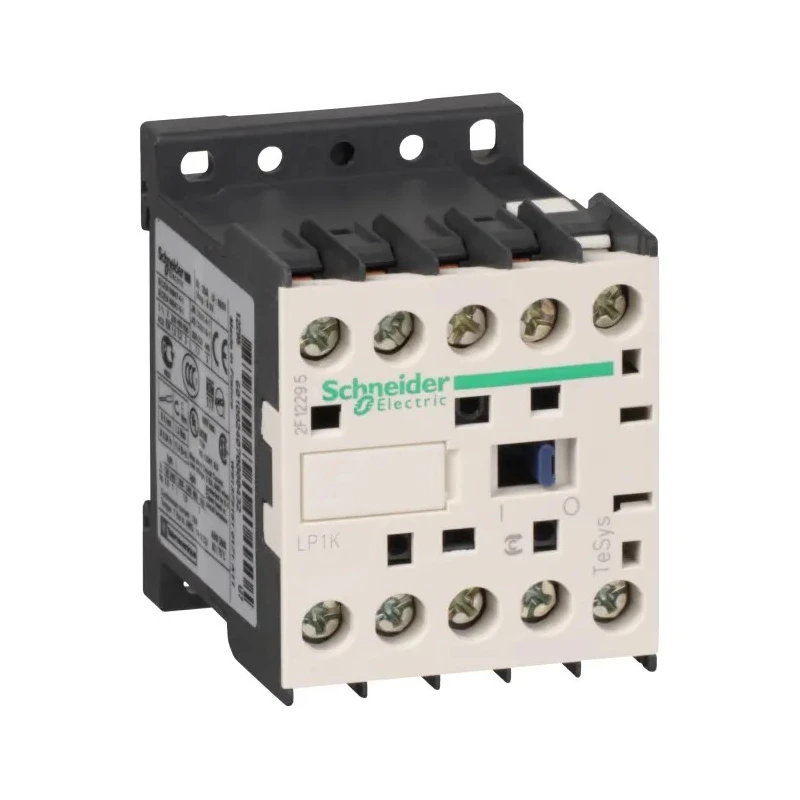

Schneider Electric LP1K Contactor, 24V DC Coil, 4-Pole, 20A, 3W Power Rating, 1.15V Control Voltage, 2 NO/2 NC LP1K09008BD
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 57.91mm |
| Model | LP1K09008BD |
| Depth | 56.8mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LP1K |
| Power Rating | 3W |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | CSA, EAC, IEC, RoHS, UL, CCC |
| Contact Voltage | 600V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 2 NO/2 NC |
| Better World Claim | Designed for Disassembly |
| Contact Current | 20A |
| Operational Current Ie | 20A |
| Control Circuit Voltage Uc | 1.15V |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 4 |
Key Features
- Equipped with a 24V DC coil operating voltage for efficient control.
- 4-pole configuration provides versatile power management.
- Rated for 20A contact current and 600V AC contact voltage.
- Compact size of 45mm width, suitable for DIN rail or screw fixing installation.
- Features a 2 NO/2 NC normal state configuration for flexible circuit design.
- Designed to operate reliably between -25°C and 50°C ambient temperatures.
- Screw-clamp terminals ensure secure connections resistant to vibration.
- Power consumption at coil is 3W with a control circuit voltage of 1.15V.
Product Description
Schneider Electric LP1K09008BD is a 4-pole contactor designed for motor control and resistive load applications. It features a 24V DC coil ensuring reliable switching and efficient power usage in industrial control environments.
This contactor supports a contact current rating of 20A and a contact voltage of 600V AC, making it suitable for heavy-duty electrical automation tasks. The normal state configuration includes 2 normally open (NO) and 2 normally closed (NC) contacts, allowing versatile switching schemes.
Its compact dimensions (45mm width, 56.8mm depth, 57.91mm length) facilitate neat installation even in complex setups. The device mounts conveniently on standard DIN rails or via screw fixing.
With an operating temperature range from -25°C to 50°C and screw-clamp terminals, the contactor is built to endure demanding environments and mechanical vibrations.
It carries multiple global certifications including CSA, UL, IEC, EAC, CCC, and complies with environmental standards such as RoHS and REACh under the Green Premium program. Designed for disassembly, it supports sustainable practices in industrial automation.
Typical applications include HVAC systems, manufacturing equipment, and packaging and fulfillment facilities. The combination of four poles and dual NO/NC contacts provides flexible control options for varied electrical circuits.
Equipped with a 24V DC coil voltage for precise control. 4-pole and 2 NO/2 NC configuration for versatile switching. Rated for 20A current and 600V AC voltage suitable for motor control. Compact and reliable with screw mounting or DIN rail installation.
Wide operating temperature range from -25°C to +50°C. Screw clamp terminals for vibration-resistant electrical connections. Certified by CSA, UL, IEC, EAC, CCC ensuring quality and safety. Environmentally compliant with RoHS and designed for disassembly.
Ideal for industrial automation and HVAC application use cases. Explore more in the Automation & Control Gear category on EnvMart for compatible industrial electrical components.
Explore more products in our Contactors & Auxiliary Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LP1K09008BD contactor has a coil voltage of 24V DC, which ensures efficient control in industrial applications.
This model is rated for a contact current of 20A, making it suitable for heavy-duty electrical automation tasks.
The maximum contact voltage supported by the LP1K09008BD is 600V AC.
This contactor features a 4-pole configuration, providing versatile power management capabilities.
The normal state configuration includes 2 normally open (NO) and 2 normally closed (NC) contacts, allowing for flexible circuit design.
The dimensions of this model are 57.91mm in length, 56.8mm in depth, and 45mm in width.
The LP1K09008BD is designed to operate reliably between -25°C and 50°C ambient temperatures.
It features screw-clamp terminals, which provide secure connections that are resistant to vibration.
This contactor is certified by CSA, UL, IEC, EAC, CCC, and complies with RoHS and REACh environmental standards.
The LP1K09008BD can be mounted on standard DIN rails or via screw fixing, allowing for flexible installation options.
It is suitable for motor control and resistive load applications, commonly used in HVAC systems and manufacturing equipment.
The power consumption at the coil is 3W, with a control circuit voltage of 1.15V.
