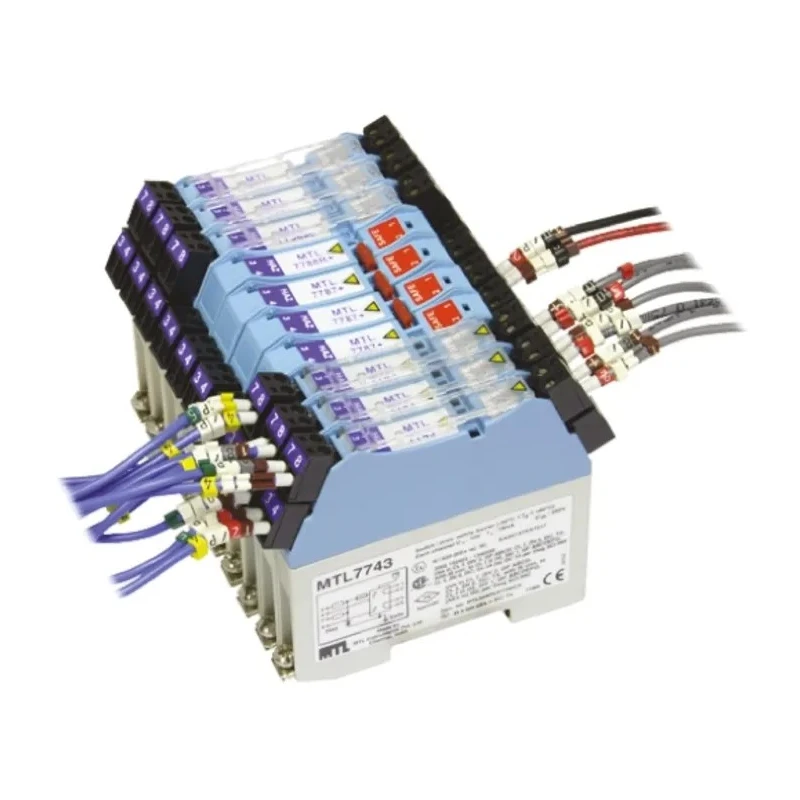

Eaton 2 Channel Zener Barrier, ATEX Certified, DIN Rail Mount MTL7789PLUS/RS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Eaton |
| Model | MTL7789PLUS/RS |
| Mount Type | DIN Rail |
| Series | MTL |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Number Of Channels | 2 |
| Supply Voltage | 26.6V |
| Hazardous Area Certification | ATEX |
| Barrier Type | Zener Barrier |
| Safety Current Resistance | 300Ω |
| Maximum Safety Current | 10mA |
| Maximum Safety Voltage | 28V |
Key Features
- Provides safe electrical signal transfer in explosive atmospheres.
- Operates efficiently between -20°C and 60°C.
- Supplies 26.6V with a maximum safety current of 10mA.
- Includes removable terminals for easy installation.
- Equipped with red LEDs for trip condition indication.
- Can protect up to 40 other modules with high channel packing density.
- Angled wire entry facilitates wiring in tight spaces.
- Clamps securely onto a T-section DIN rail.
Product Description
Eaton's MTL7789PLUS/RS 2 Channel Zener Barrier is engineered for robust performance in hazardous industrial and automation applications. This device is ATEX certified, ensuring safety in environments with flammable gases, dust, and fibers. The barrier safely limits the energy transferred to equipment in explosive atmospheres, preventing ignition risks.
This compact safety barrier is mounted on a DIN rail and includes dual channels with two safety fuses, allowing individual fuse replacement during overloads. Its red LED indicators offer clear trip status for efficient troubleshooting. The unit operates reliably within a temperature range of -20°C to 60°C and supports a supply voltage of 26.6V, with a maximum safety current of 10mA and maximum safety voltage of 28V.
Designed with removable screw terminals and angled wire entry, it simplifies installation and wiring in confined spaces. The high channel-packing density enables protection of up to 40 modules, optimizing space in control panels. Additionally, the barrier can be quickly mounted or removed by easing its metal clip on the DIN rail.
This product meets the Eaton MTL series standards and is made in India, ensuring quality and reliability. Its design supports live maintenance and live calibration without extra protective measures, improving operational efficiency.
Safe signal transfer in explosive industrial environments. Dual channels with individual safety fuses. Easy installation with removable terminals. Red LED trip condition indicators. High channel-packing density to safeguard multiple modules.
DIN rail mounting with secure clip mechanism. Operational temperature range: -20°C to +60°C. Supply voltage of 26.6V with 10mA max safety current. Allows live calibration and maintenance safely.
This Eaton Zener Barrier is ideal for industrial, automation, electrical, and hazardous area safety applications. Explore more signal conditioning and isolator solutions on EnvMart for your engineering needs.
Explore more products in our Zener & Galvanic Barriers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 60°C.
This Zener barrier operates with a supply voltage of 26.6V.
This unit features two channels for signal transfer.
It uses removable screw terminals, facilitating easy installation.
The maximum safety current is 10mA.
Yes, it is ATEX certified, making it suitable for use in explosive atmospheres.
The minimum operating temperature is -20°C.
The angled wire entry facilitates wiring in tight spaces, simplifying installation.
The maximum safety voltage is 28V.
It is equipped with red LED indicators that show the trip status for efficient troubleshooting.
This model mounts securely on a DIN rail using a clip mechanism.
Yes, it allows for live maintenance and calibration without additional protective measures.
