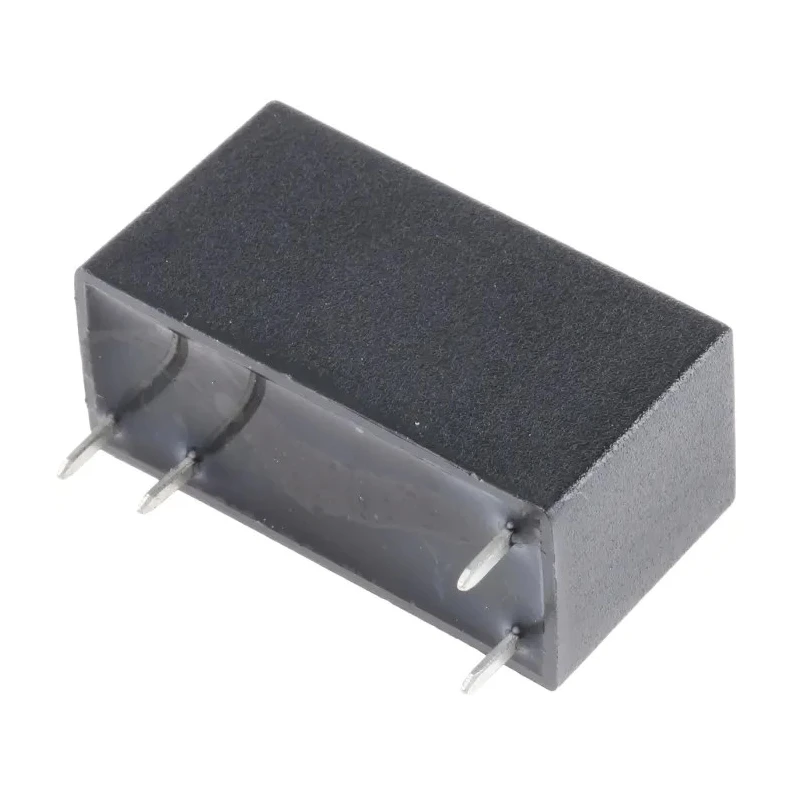

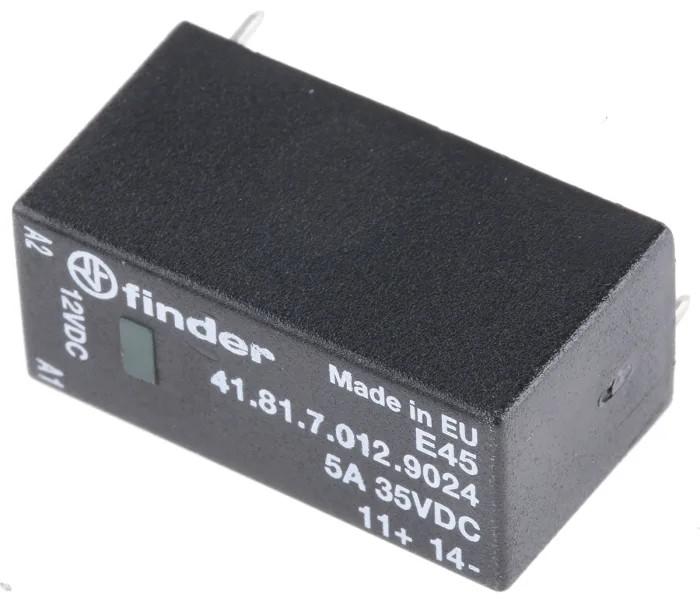

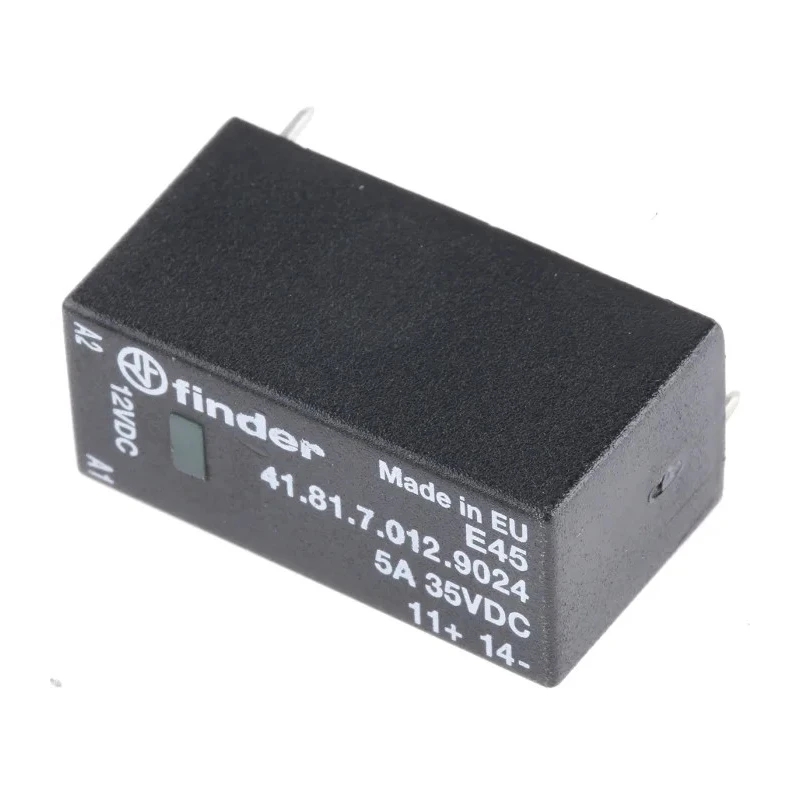

Finder 41 Series Solid State Relay, 5 A Load Current, PCB Mount, 24 V DC Load, 17 V DC Control 41.81.7.012.9024

Finder 41.81.7.012.9024 Solid State Relay is a high-performance component designed for industrial and automation applications requiring silent, high-speed switching with a long electrical life. It supports a 5 A maximum load current and a load voltage of 24 V DC, controlled by a 17 V DC signal, making it suitable for PCB mounting either directly or via PCB sockets.

This relay features zero cross switching that minimizes switching noise and prolongs contact life, which is critical in sensitive electronic environments. The compact dimensions of 15.7 mm height, 29 mm length, and 12.7 mm width enable space-saving integration on printed circuit boards.

Terminal type is through-hole ensuring reliable mechanical and electrical connection suitable for automated PCB assembly processes. The device holds an IP20 rating, providing protection from solid objects and compliance with international standards such as EAC, RoHS, and cLR guarantees quality and safety.

Operating temperature ranges from -20°C to +60°C, ensuring stable operation in varied industrial environments. The off-state leakage current is exceptionally low at 0.01 mA, reducing power consumption when the relay is inactive.

Additionally, the relay is rated as wash tight to RT III standard which allows for cleaning processes without damage, important for applications in hygienic or dusty conditions. Designed for PCB mounting with a low profile and compact size.

Zero cross switching to reduce electrical noise and extend component life. Supports up to 5 A load current and 24 V DC load voltage. Through-hole terminal type for reliable PCB connection. Wide operating temperature and wash tight rating for robust industrial use.

Complies with international standards including RoHS and cLR. IP20 rated for protection against solid object intrusion. Low off state leakage current minimizes power waste.

This solid state relay is ideal for automation, control systems, laboratory equipment, manufacturing machinery, and other industrial applications requiring efficient, silent, and reliable load switching. Explore similar products in the Solid State Relay category on EnvMart for suitable complementary components and automation solutions.
