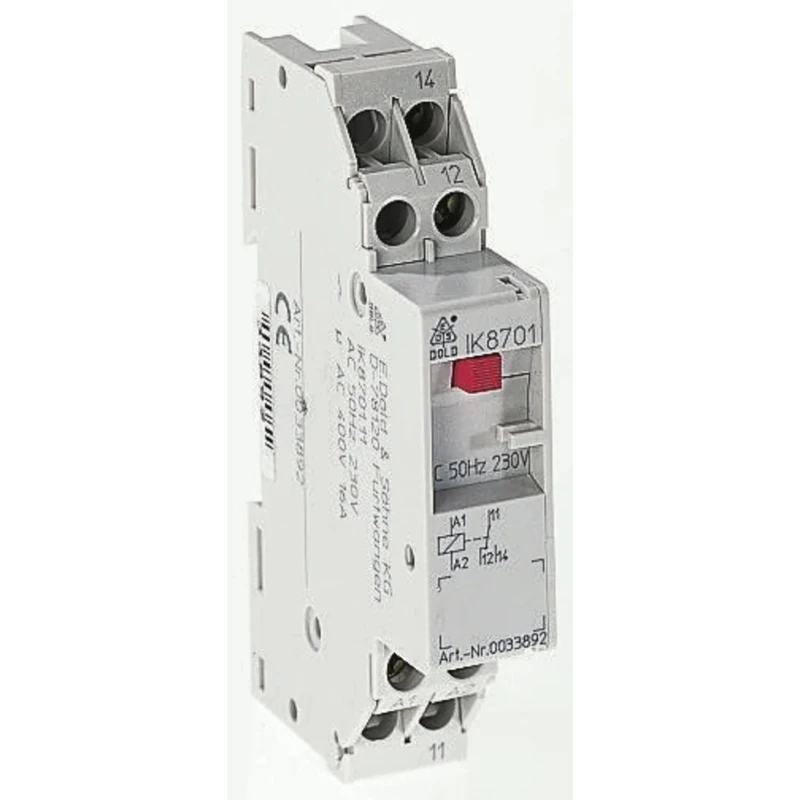

Dold DIN Rail Power Relay 230V AC Coil 16A Switching Current DPDT IK8701.12 AC50HZ 230V
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Dold |
| Height | 58mm |
| Length | 89mm |
| Model | IK8701.12 AC50HZ 230V |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | IK8701 |
| Contact Configuration | DPDT |
| Switching Current | 16A |
| Terminal type | Wire |
| Standards/Approvals | CE, EN, IEC, RoHS |
| Coil Voltage | 230V ac |
| Dold IK8701 Series Interface Relay Module, DIN Rail, 230V ac Coil, 1 NOBrand | Dold |
Key Features
- The relay is designed for DIN Rail mounting for easy installation.
- It includes manual contact operation switch and switch position indication.
- The device has a compact size with dimensions 89mm length, 58mm height, and 17.5mm width.
- The relay complies with CE, EN, IEC, and RoHS standards for reliability and safety.
- Its high thermal current rating of 16 A makes it suitable for demanding industrial applications.
- The terminal type is wire connection ensuring easy wiring compatibility.
- Manufactured in Germany ensuring high quality and performance standards.
Product Description
Dold IK8701.12 AC50HZ 230V DIN Rail Power Relay is a reliable and versatile relay module featuring a 230V AC coil and a 16A switching current with a DPDT contact configuration. Designed for DIN Rail mounting, this relay is suitable for a wide range of electrical and automation applications.
The relay includes a manual operation switch for the contact and provides clear switch position indication, enhancing usability and status monitoring in control panels. Its robust construction ensures a high thermal current Ith of 16 A, which supports high current industrial loads.
With overall dimensions of 89mm length, 58mm height, and 17.5mm width, this compact relay saves panel space without compromising performance. The wire terminal type simplifies installation and wiring tasks.
The product conforms to multiple important international standards including CE, EN, IEC, and RoHS, ensuring compliance with safety and environmental requirements. Manufactured in Germany, the relay upholds high quality and reliability, making it ideal for industrial, commercial, and automation system use cases.
The relay supports high thermal current up to 16A for robust performance. It features a DPDT contact configuration suitable for diverse control applications. Manual operation capability allows for flexible contact switching.
DIN Rail mount facilitates standardized installation and integration. Compact dimensions allow efficient use of panel space. Wire terminal type ensures easy and secure wiring connections. Conforms to CE, EN, IEC safety, and environmental standards.
This Dold DIN Rail Power Relay model IK8701.12 AC50HZ 230V is an essential component in electrical automation, industrial controls, HVAC systems, and manufacturing environments requiring reliable switching performance.
Explore more power relays and electrical control components in the Electronics & Electricals > Relays & Contactors > Power Relays category on EnvMart for complementary solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 16A, making it suitable for high current industrial applications.
This model operates with a coil voltage of 230V AC.
The relay has dimensions of 89mm in length, 58mm in height, and 17.5mm in width.
It features a DPDT (Double Pole Double Throw) contact configuration, suitable for various control applications.
The relay is designed for DIN Rail mounting, facilitating standardized installation.
It utilizes a wire terminal type, ensuring easy and secure wiring connections.
The relay complies with CE, EN, IEC, and RoHS standards, ensuring safety and environmental compliance.
It is manufactured in Germany, ensuring high quality and performance standards.
Yes, it includes a manual operation switch for the contact, allowing for flexible switching.
It is suitable for electrical automation, industrial controls, HVAC systems, and manufacturing environments requiring reliable switching performance.
This relay belongs to the Dold IK8701 series.
The relay has a high thermal current rating of 16A, supporting demanding industrial loads.
