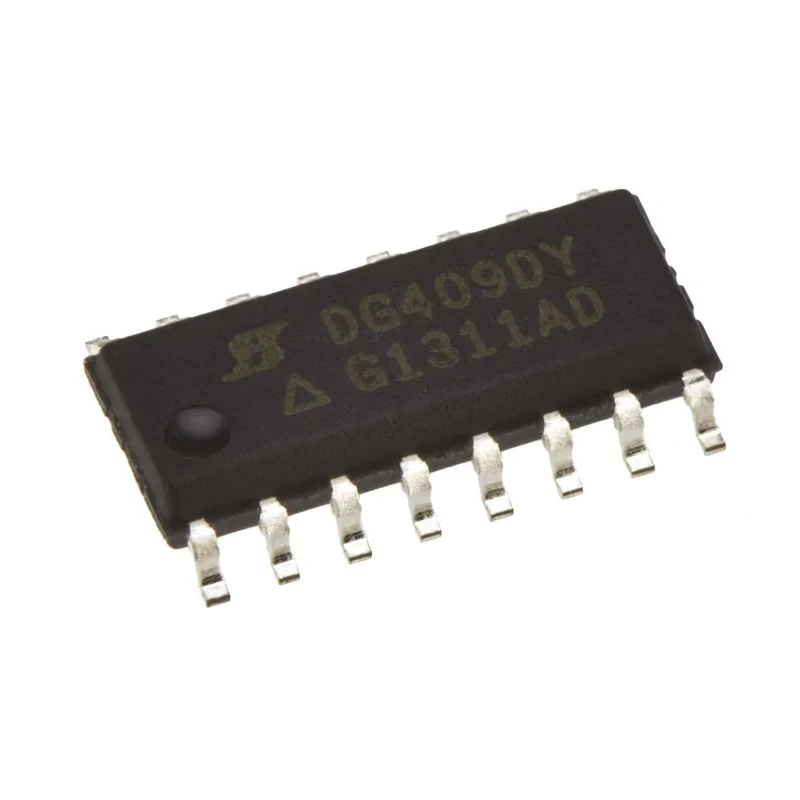

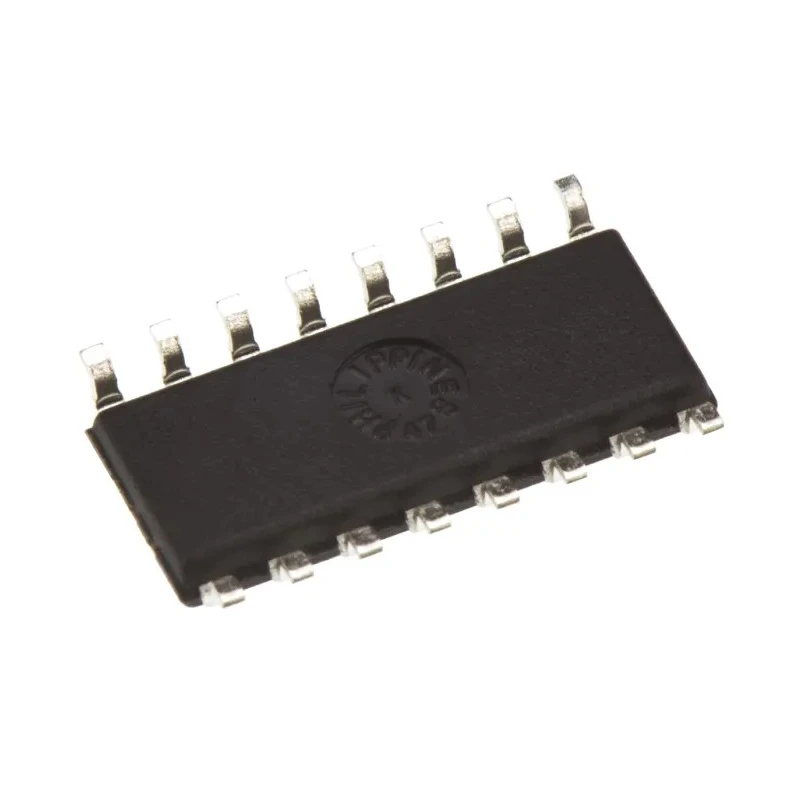

Vishay Analogue Switch 2 CMOS Dual 4:1 Multiplexer 16-Pin SOIC DG409DY-E3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.55mm |
| Length | 10mm |
| Model | DG409DY-E3 |
| Width | 4mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | DG409 |
| Configuration | Dual 4:1 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Pin Count | 16 |
| Number of Elements per Chip | 2 |
| Maximum Supply Voltage | 36V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 5V |
| Multiplexer/Demultiplexer | Multiplexer |
| Maximum On State Resistance | 125Ω |
| ConfigurationDual 4 | 1 |
| Dual 4 | 1 |
| Vishay Analogue Switch, 2 CMOS Dual 4 | 1, Multiplexer, 16-Pin SOIC |
Key Features
- Operates over a wide supply voltage range from 5V to 36V.
- Features a low on-state resistance of 125 Ω to minimize signal loss.
- Compatible with both CMOS and TTL logic input levels.
- Designed for surface-mount applications with a compact 16-pin SOIC footprint.
- Can operate in harsh environments from -40°C up to 85°C.
- Ideal for use in industrial controls and data acquisition systems.
- Supports audio signal selection and instrumentation multiplexing applications.
- Ensures efficient PCB placement and automated assembly integration.
Product Description
Vishay DG409DY-E3 is a versatile analogue switch designed with dual 4:1 CMOS multiplexer channels. It operates at a minimum supply voltage of 5V and supports supply voltages up to 36V, offering flexible power options for varied applications. Packaged in a 16-pin SOIC surface-mount form factor, it ensures easy PCB integration and suitability for automated production.
This device provides low on-state resistance of 125 Ω, minimizing signal attenuation and facilitating high fidelity in mixed-signal circuit designs. Its control inputs accept both CMOS and TTL logic levels, allowing compatibility with standard logic families for straightforward system control.
Featuring a wide operating temperature range from -40°C to 85°C, the DG409DY-E3 analogue switch is well suited for industrial, instrumentation, and data acquisition applications where environmental conditions can be challenging.
The dual 4:1 multiplexer configuration enables two independent signal routing channels making it ideal for sensor input selection, audio signal switching, and multiplexing in compact devices and test equipment. Surface mounting in the SOIC package ensures compact PCB layout and simplifies manufacturing processes.
Dual 4:1 channel analogue switch multiplexing capability. Wide supply voltage operation from 5V to 36V. Low on-state resistance of 125 Ω for efficient switching. Compatible with CMOS and TTL logic levels. Surface-mount 16-pin SOIC package for PCB ease.
Operating temperature range from -40°C to 85°C. Suitable for industrial control and instrumentation applications. This Analogue Switch is a reliable choice for designers requiring compact, efficient multiplexing of analogue signals in industrial, laboratory, and embedded system environments.
Explore more Vishay products and multiplexer ICs in the Electronics & Electricals category on EnvMart to find complementary components for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates over a supply voltage range from 5V to 36V, providing flexibility for various applications.
The maximum on-state resistance is 125 Ω, which helps minimize signal loss during operation.
It is compatible with both CMOS and TTL logic input levels, allowing for easy integration with standard logic families.
This model can operate in temperatures ranging from -40°C to 85°C, making it suitable for harsh environments.
The DG409DY-E3 is packaged in a 16-pin SOIC format with dimensions of 10mm in length, 4mm in width, and 1.55mm in height.
It features a dual 4:1 configuration, allowing for two independent signal routing channels.
It is ideal for industrial controls, data acquisition systems, audio signal selection, and instrumentation multiplexing applications.
It is designed for surface mounting, which facilitates easy PCB integration and automated assembly.
The DG409DY-E3 contains 2 elements per chip, corresponding to its dual multiplexer configuration.
This analogue switch belongs to the CMOS logic family, ensuring compatibility with various CMOS applications.
The DG409DY-E3 is manufactured in India.
The low on-state resistance of 125 Ω is significant as it minimizes signal attenuation, ensuring high fidelity in mixed-signal circuit designs.
