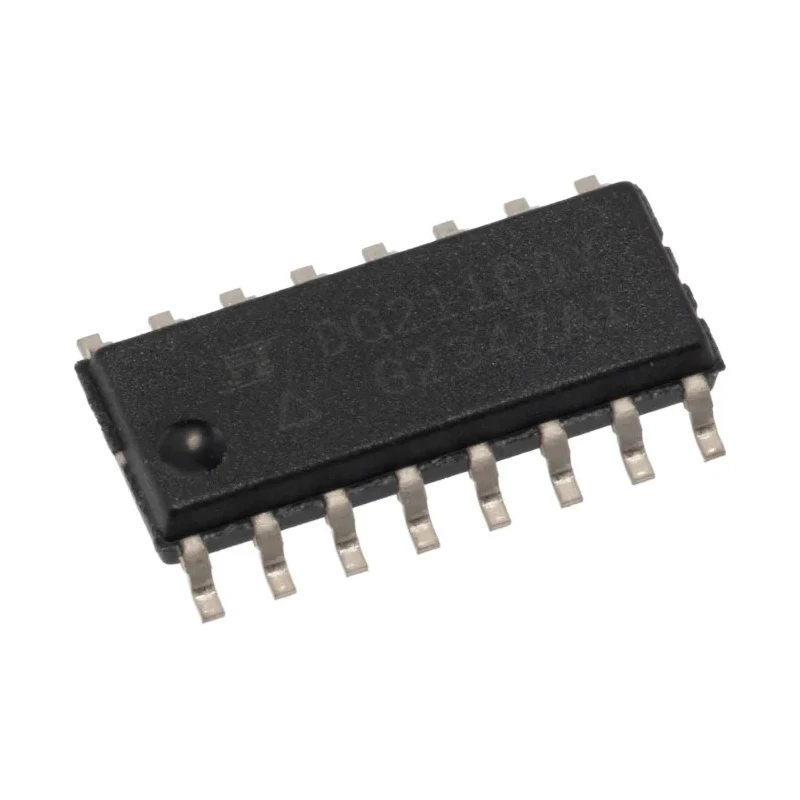

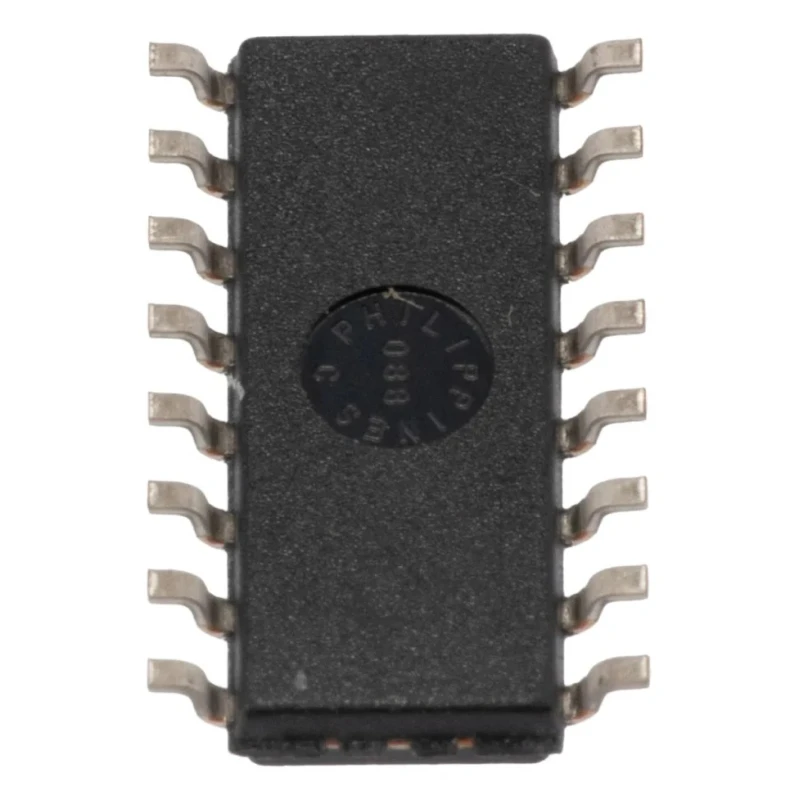

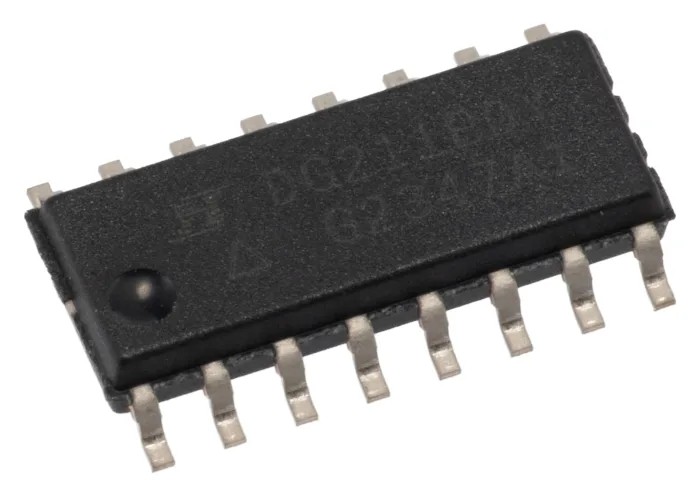

Vishay Analogue Switch 4 CMOS Quad SPST 16-Pin SOIC DG211BDY-E3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.55mm |
| Length | 10mm |
| Model | DG211BDY-E3 |
| Width | 4mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | DG211B |
| Configuration | Quad SPST |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 708-5180PBrand: VishayManufacturers Part No.: DG211BDY-E3 |
| Pin Count | 16 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 22V |
| Logic Family | CMOS |
| Minimum Supply Voltage | -22V |
| Maximum On State Resistance | 200Ω |
Key Features
- Operates from a minimum supply voltage of -22V up to a maximum of 22V.
- Features four independent single-pole single-throw switches on a single chip.
- Maximum on-state resistance is 200 ohms ensuring predictable signal attenuation.
- Suitable for operating temperatures ranging from -40°C to 85°C.
- Compatible with CMOS and TTL output logic levels for easy control.
- Compact 16-pin SOIC surface mount package designed for efficient PCB integration.
- Ideal for audio signal path selection and low-frequency multiplexing in mixed-signal systems.
- Supports applications in industrial sensor input switching and test equipment multiplexing.
Product Description
Vishay DG211BDY-E3 is an analogue switch featuring four independent single-pole single-throw (SPST) switches, integrating 4 CMOS elements in a compact 16-pin SOIC surface-mount package. This device operates efficiently from bipolar supply rails ranging from -22V to +22V, supporting a wide range of mixed-signal applications with CMOS/TTL compatible logic control.
Designed for reliable routing of analogue signals, its maximum on-resistance is 200 ohms, delivering consistent signal attenuation suitable for sensitive audio path selections and low-frequency measurement multiplexing. The DG211BDY-E3 supports ambient operating temperatures from -40°C to 85°C, making it robust for typical industrial and commercial environments.
Its compact form factor enables space-saving PCB assembly in consumer electronics, test instrumentation, industrial sensors, and mixed-signal control logic systems. The surface-mount SOIC package facilitates easy automated assembly processes.
Applications include switching audio signals in analogue circuits, multiplexing multiple low-frequency channels for measurement equipment, and selective routing of sensor inputs in industrial automation setups. This device is not automotive grade and should not be used in automotive-certified applications.
Operates with supply voltages from -22V to +22V supporting broad power ranges. Four independent SPST switches integrated on one silicon die for versatile signal routing. Robust operation within -40°C to 85°C ambient temperature for wide industrial usability.
Low on-state resistance ensures minimal signal loss during switching. RoHS compliant construction adheres to industry environmental standards. Compact 16-pin SOIC packaging enhances PCB space efficiency and assembly speed.
Ideal for mixed-signal control logic and multiplexing applications. Suitable for audio, sensor input switching, and test equipment multiplexers.
Choose the Vishay DG211BDY-E3 Analogue Switch for reliable multiple channel routing in laboratory, industrial, consumer electronics, and manufacturing environments. Explore our broad Electronics & Electricals categories for more Vishay semiconductor solutions.
