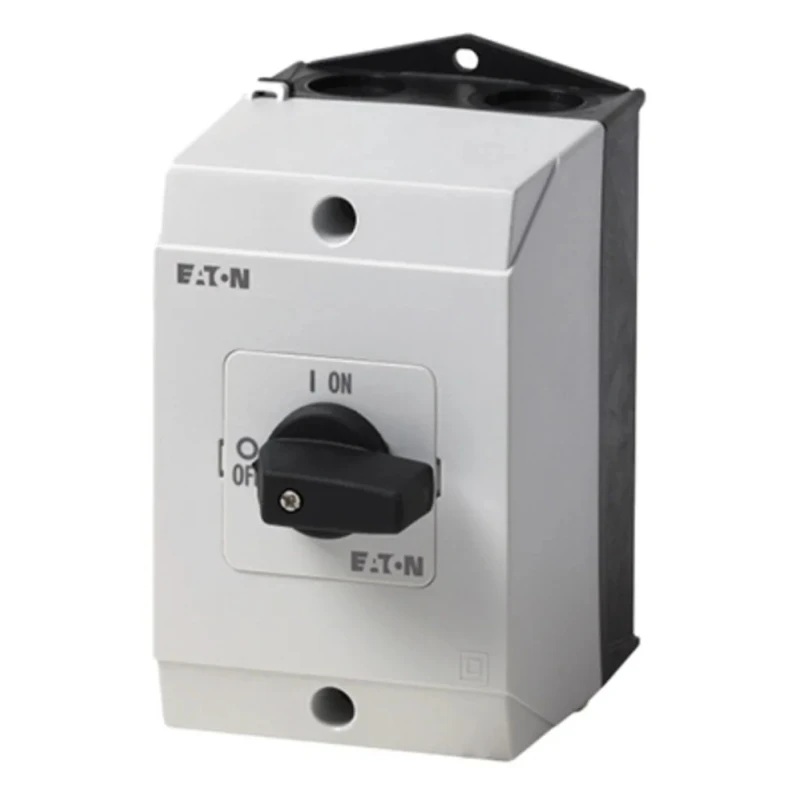

Eaton 3-Pole Surface Isolator Switch IP65 20A 5.5kW T0-2-1/I1H/K-CI-K1/2(RS629-2126)

Eaton IP65 3-Pole Surface Isolator Switch model T0-2-1/I1H/K-CI-K1/2(RS629-2126) is a robust electrical switch designed for safely isolating circuits in industrial, commercial, and manufacturing environments. It supports a three-pole configuration with a switching current of 20 amperes and a power rating of 5.5 kilowatts under AC23A use at 380-440V AC.

The IP65 rated enclosure provides complete protection against dust ingress and water jets, making it highly suitable for harsh and outdoor applications. The switch features a black thumb grip handle with a grey front plate, engineered for ergonomic control, with options available for emergency stop with red/yellow plates.

This surface-mounted device is designed to be padlock compatible, facilitating lockout/tagout safety procedures during maintenance and repair tasks to prevent accidental energization. It can switch DC voltages up to 60 volts and AC voltages up to 400 volts reliably.

Certified under internationally recognized standards including CSA, EN, IEC, and UL, this isolator switch meets rigorous safety and performance requirements. Its operational temperature range of -25°C to 50°C ensures dependable performance in varied climatic conditions, including hazardous areas compliant with ATEX certification.

The switch is built with screw type terminals to secure wiring connections safely and conveniently. The compact dimensions (120mm width, 75mm depth, 80mm length) facilitate installation in tight spaces without compromising accessibility.

Black handle and grey front plate for operational clarity. Padlock compatible for enhanced safety procedures. IP65 enclosure for dust and water resistance. 3-pole configuration suitable for three-phase electrical systems.

Switching power of 5.5kW and current rating of 20A. Meets CSA, EN, IEC, UL standards and ATEX hazardous area certification. Wide operating temperature range from -25°C to 50°C. Screw terminal connections for secure installation.

This Eaton Isolator Switch is ideal for electrical distribution, automation, and control systems in industrial plants, manufacturing facilities, laboratories, and commercial installations, providing safe and reliable manual disconnection of circuits.
