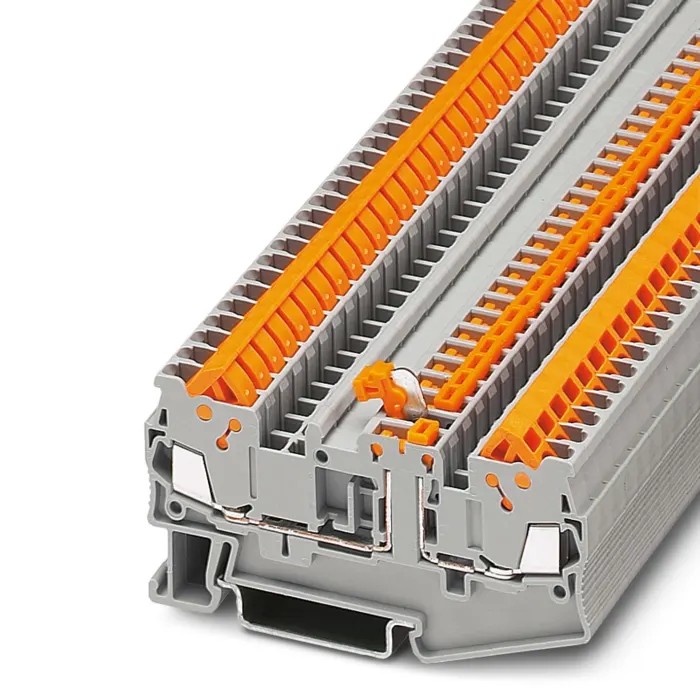

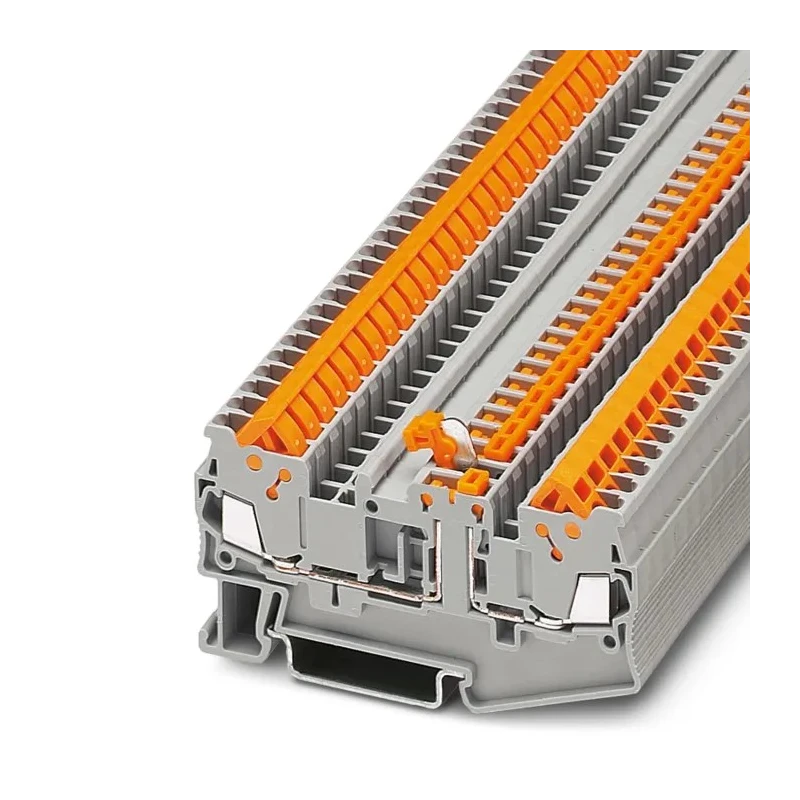

Phoenix Contact Knife Disconnect Terminal Block Grey 0.25 mm² to 1.5 mm² 17.5A 400V 1-Level Quick Connect 3205103
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 400V |
| Brand | Phoenix Contact |
| Colour | Grey |
| Model | 3205103 |
| Series | QTC 1.5-MT |
| Termination Type | Quick Connect |
| Maximum Operating Temperature | 105°C |
| Number of Levels | 1 |
| Sub Type | Disconnect |
| Minimum Operating Temperature | -60°C |
| Hazardous Area Certification | IECEx, ATEX |
| Standards/Approvals | NK, LR, IEC 60947-7-1, EAC, DNV, cULus, CSA, Bureau Veritas, ABS |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 16AWG |
| Cable CSA | 0.25, 1.5mm² |
| Terminal Block Current | 17.5A |
Key Features
- Suitable for wire sizes 0.25 mm² to 1.5 mm² with AWG 24 to AWG 16 compatibility.
- Rated for a terminal block current of 17.5 amperes and voltage up to 400 volts.
- Features a single-level knife disconnect for rapid system fault localization.
- Equipped with quick connect termination type for efficient wiring.
- Constructed for operation between -60° Celsius minimum and 105° Celsius maximum temperatures.
- Grey color providing clear system identification and grouping.
- Conforms to multiple international hazardous area certifications including IECEx and ATEX.
- Complies with standards such as IEC 60947-7-1, NK, LR, EAC, DNV, cULus, CSA, Bureau Veritas, and ABS.
Product Description
Phoenix Contact 3205103 is a Knife Disconnect Terminal Block in grey color, designed for fast and reliable wire connections supporting wire cross sections from 0.25 mm² to 1.5 mm² (AWG 24 to AWG 16). This 1-level terminal block supports a current rating of 17.5A and a voltage rating of 400V, suitable for a variety of industrial electronics and electrical connection applications.
The knife disconnect feature allows for rapid fault localization, enabling simplified service and maintenance operations in electrical systems. The terminal block utilizes a quick connect termination type, facilitating efficient and secure wiring connections that save installation time.
Engineered to operate reliably in harsh environments, this product supports an operating temperature range from -60°C up to 105°C, making it suitable for demanding industrial applications including control panels, power distribution, and automation systems.
Meeting multiple international hazardous area certifications IECEx and ATEX, it is compliant with rigorous safety and quality standards. The product proudly conforms to standards such as IEC 60947-7-1 along with approvals from NK, LR, EAC, DNV, cULus, CSA, Bureau Veritas, and ABS, ensuring dependable performance in critical conditions.
Its modular design includes compatible endplates and separators that allow for optical and electrical group separation, ideal for complex installations ensuring clear organization and safety.
Supports wire sizes from 0.25 mm² to 1.5 mm² and AWG 24 to AWG 16. Rated 17.5A current and 400V voltage. Single-level knife disconnect function ensures quick fault isolation. Quick connect termination type eases installation.
Wide operating temperature range from -60°C to 105°C. Certified for use in hazardous areas with IECEx and ATEX approvals. Compliant with IEC 60947-7-1 and other international standards including NK, LR, EAC, DNV, cULus, CSA, Bureau Veritas, and ABS.
Modular accessories available for enhanced system separation and finishing. This terminal block is ideal for industrial, commercial, and automation electrical connection tasks requiring durable, certified, and easy-to-install components.
Explore more Phoenix Contact products and DIN Rail Terminal Blocks on EnvMart for comprehensive electrical component solutions.
