Phoenix Contact Feed Through Terminal Block UT 35 Series Grey 1-Level 2 Positions Screw Termination 1kV 125A 3044225

Free Delivery in India | Lowest Global Shipping Charges

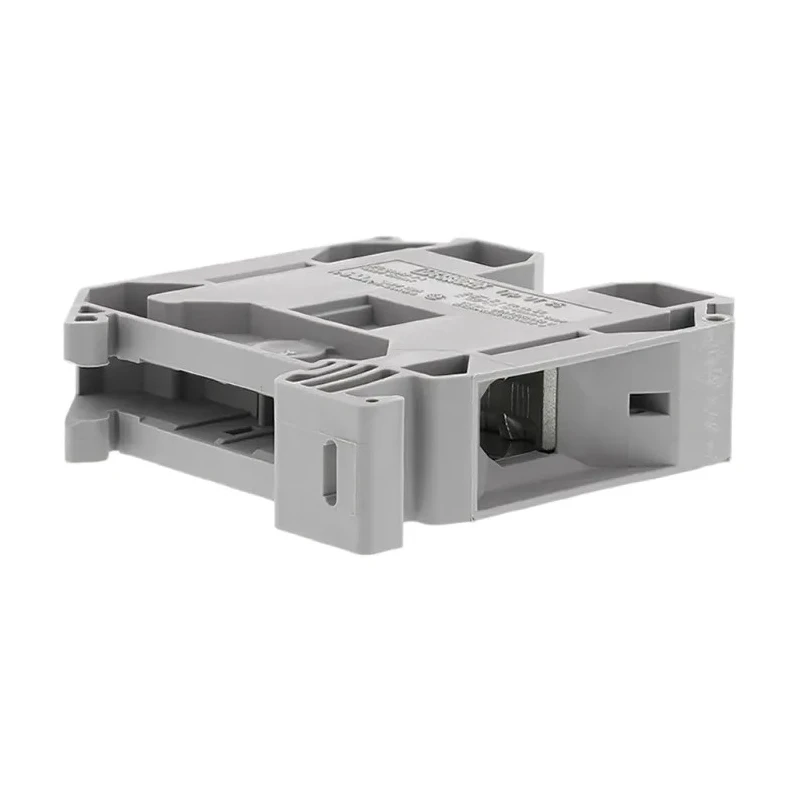

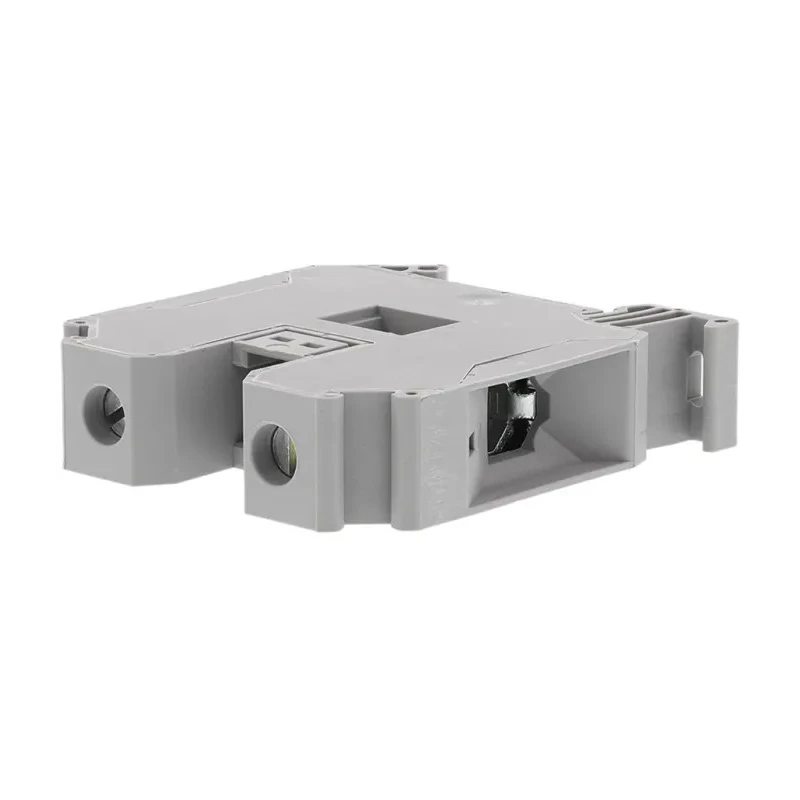

Phoenix Contact Feed Through Terminal Block UT 35 Series Grey 1-Level 2 Positions Screw Termination 1kV 125A 3044225

Name: Phoenix Contact Feed Through Terminal Block UT 35 Series Grey 1-Level 2 Positions Screw Termination 1kV 125A 3044225
Brand: PHOENIX CONTACT
SKU: 343107
Price: 20.42 USD
Availability: InStock



Category Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Turkey
Voltage	1kV
Brand	Phoenix Contact
Colour	Grey
Model	3044225
Series	UT 35
Termination Type	Screw
Maximum Operating Temperature	110°C
Number of Levels	1
Number of Positions	2
Sub Type	Feed Through
Minimum Operating Temperature	-60°C
Pitch	16mm
Hazardous Area Certification	ATEX
Minimum Wire Size AWG	16AWG
Maximum Wire Size AWG	0AWG
Cable CSA	1.5, 50mm²
Terminal Block Current	125A

Key Features

The terminal block supports a rated voltage of 1kV and a current rating of 125A.
Constructed in grey PA insulation material ensuring protection against electric shock and fire risks.
Operates efficiently in temperature ranges from -60°C up to 110°C, suitable for harsh industrial environments.
Pitched at 16mm, it facilitates easy wiring and stable connections.
Certified with ATEX hazardous area certification and complies with multiple international standards for safety and performance.
The screw termination ensures secure and reliable electrical contact.
Ideal for packaging equipment control systems and various industrial electrical applications.
Compact design allows for space-efficient DIN rail assembly.

Product Description

Phoenix Contact 3044225 feed through terminal block UT 35 series features a robust design suited for industrial and electrical equipment wiring requiring reliable high current transmission. The grey 1-level terminal block supports 2 positions with screw type termination, accommodating wire sizes from AWG16 to AWG0 with a cable cross-sectional area of 1.5 to 50 mm².

The product is rated for operational voltages up to 1kV and currents up to 125A, allowing it to be used safely in demanding power distribution setups. Its durable PA insulation provides protection against electric shock and reduces fire hazards, making it suitable for sensitive or critical areas.

Designed to withstand temperature extremes from -60°C to 110°C, this terminal block ensures consistent performance in harsh conditions such as industrial manufacturing, automation systems, and electrical panels. The 16mm pitch spacing enhances wiring neatness and accessibility on standard DIN rails.

This model has been rigorously tested and certified, carrying approvals like ATEX for hazardous area safety, CSA, UL listed markings, IEC standards (60947-7-1, 60079-7), and other international certificates, verifying its compliance with global industry requirements.

The high surge voltage resistance of 8kV protects electrical circuits from transient spikes. The screw termination system enables reliable electrical connections with minimal contact resistance (0.08 mΩ). It is engineered to facilitate fast and secure installation onto DIN rails without additional tools.

The block is widely used in packaging machinery and industrial control systems requiring dependable electrical interface solutions. Manufactured in Turkey, maintaining strict quality standards.

This terminal block is a critical component for engineers and maintenance technicians working in electrical engineering, industrial automation, HVAC, and power distribution sectors. EnvMart offers this reliable Phoenix Contact UT 35 series terminal block 3044225 for professional grade installations and upgrades.
