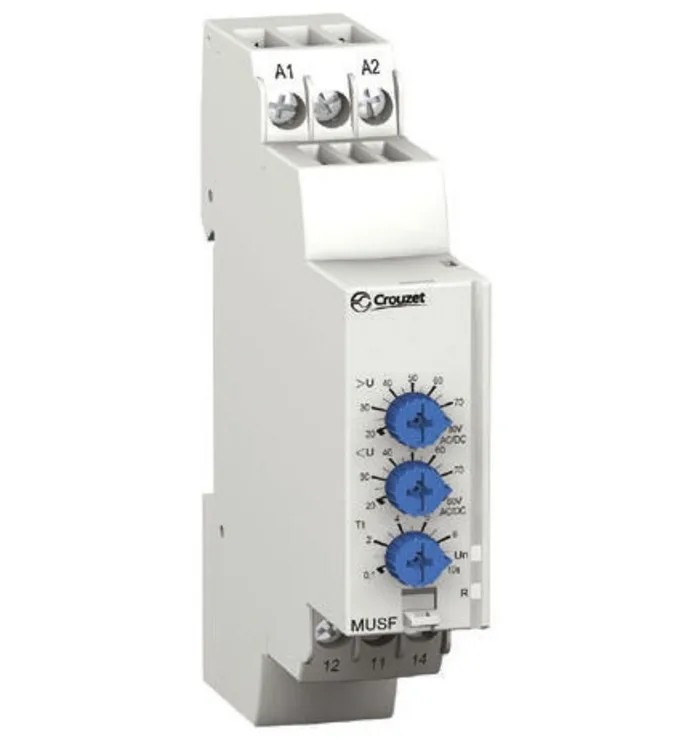

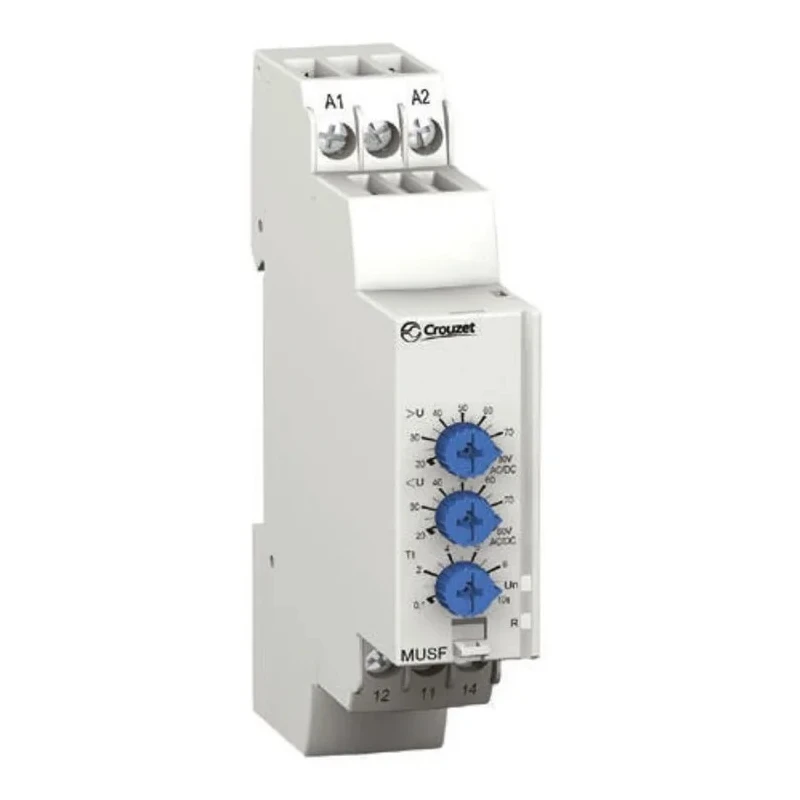

Crouzet Monitoring Relay 1 Phase 20 to 80 VAC/VDC Monitor Range SPDT DIN Rail Mount 24 V AC 24 to 48 V DC 84872151
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crouzet |
| Height | 92.6mm |
| Function | Undervoltage Monitoring |
| Length | 69mm |
| Model | 84872151 |
| IP Rating | IP30, IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | MUS/MUSF |
| Maximum Operating Temperature | 50°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | +50°C |
| Electrical Phase | 1 |
| Switching Voltage | 250V ac/dc |
| Contact Current | 5A |
| Supply DC Voltage | 24 to 48 V dc |
| Supply AC Voltage | 24, 48V |
| MUS | controls over- or undervoltage with a selectable |
| MUSF | controls over- or undervoltage |
Key Features
- Supports undervoltage monitoring function with adjustable time delays.
- Suitable for 24V AC and 24 to 48V DC supply voltages.
- Switching voltage up to 250V AC/DC with 5A contact current capacity.
- Compact DIN rail mount design with 17.5mm width and 69mm length.
- LED status display enables clear operation monitoring.
- Operates reliably within a temperature range of +50°C to 50°C.
- Complies with multiple international standards including EMC, RoHS, UL, and CE.
Product Description
Crouzet 84872151 monitoring relay is designed for industrial and automation applications requiring reliable voltage monitoring. This single-phase relay monitors undervoltage conditions within a range of 20 to 80 VAC/VDC, providing precise switching control via a Single-Pole Double-Throw (SPDT) contact configuration. It is mounted easily on standard DIN rails, making it suitable for compact electrical panels.
This model supports control relay functions with selectable memory and adjustable time delays, enabling flexible undervoltage monitoring with high reliability. It operates accurately at 50 Hz, 60 Hz, or DC voltage inputs and uses true RMS measurement to ensure precision.
The relay supports both 24V and 48V AC supply voltages as well as DC supply from 24 to 48V. It allows switching voltages of up to 250V AC/DC with a contact current rating of 5A, suitable for various industrial switching tasks. The compact dimensions (17.5mm width, 69mm length, 92.6mm height) contribute to space-saving control cabinet integration.
The device features an LED status indicator for real-time operation feedback and maintains stable performance between minimum and maximum operating temperatures of +50°C and 50°C. The robust IP30 and IP20 protection ratings ensure durability in typical industrial environments.
Supports undervoltage monitoring with time delay settings. True RMS voltage measurement for accuracy. Compact DIN rail mount design to fit standard electrical enclosures. Wide compatibility with AC and DC supply voltages.
Switching voltage and current suitable for various control applications. LED indicator for clear status display. Compliance with EMC, RoHS, UL, CE, and other international standards.
This relay is ideal for applications in industrial automation, electrical panel control, HVAC systems, and manufacturing machinery protection. Incorporating this Monitoring Relay enhances system reliability by preventing undervoltage damage and ensuring continuous operational health.
Explore more high-quality relays and monitoring devices in EnvMart's extensive Electronics & Electricals catalog, offering trusted industrial control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This monitoring relay has an undervoltage monitoring range of 20 to 80 VAC/VDC.
It supports supply voltages of 24V AC and 24 to 48V DC.
The contact current capacity of this relay is 5A.
The maximum switching voltage for this monitoring relay is 250V AC/DC.
This model has a width of 17.5mm, a length of 69mm, and a height of 92.6mm.
It is designed for DIN rail mounting, making it suitable for standard electrical panels.
It operates reliably within a temperature range of +50°C to 50°C.
The relay features a Single-Pole Double-Throw (SPDT) contact configuration.
Yes, it features an LED status indicator for clear operation monitoring.
It complies with multiple international standards including EMC, RoHS, UL, and CE.
This model supports undervoltage monitoring with adjustable time delays and selectable memory.
It is suitable for industrial automation, electrical panel control, HVAC systems, and manufacturing machinery protection.
