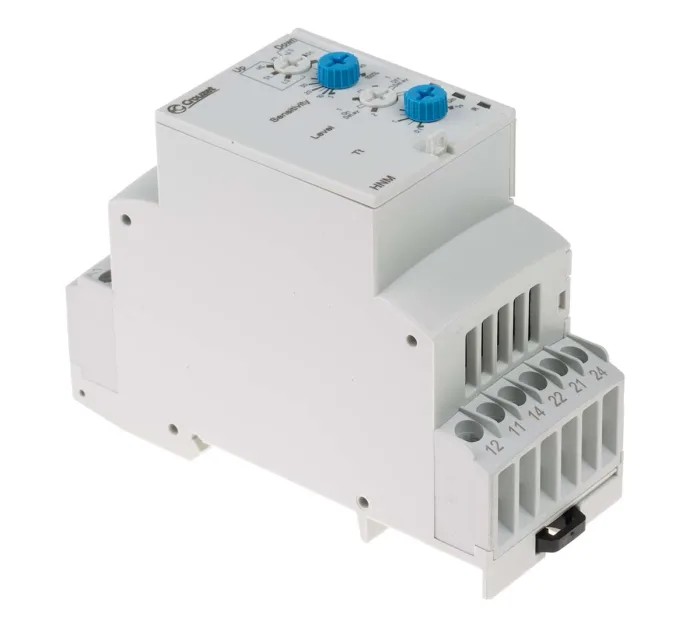

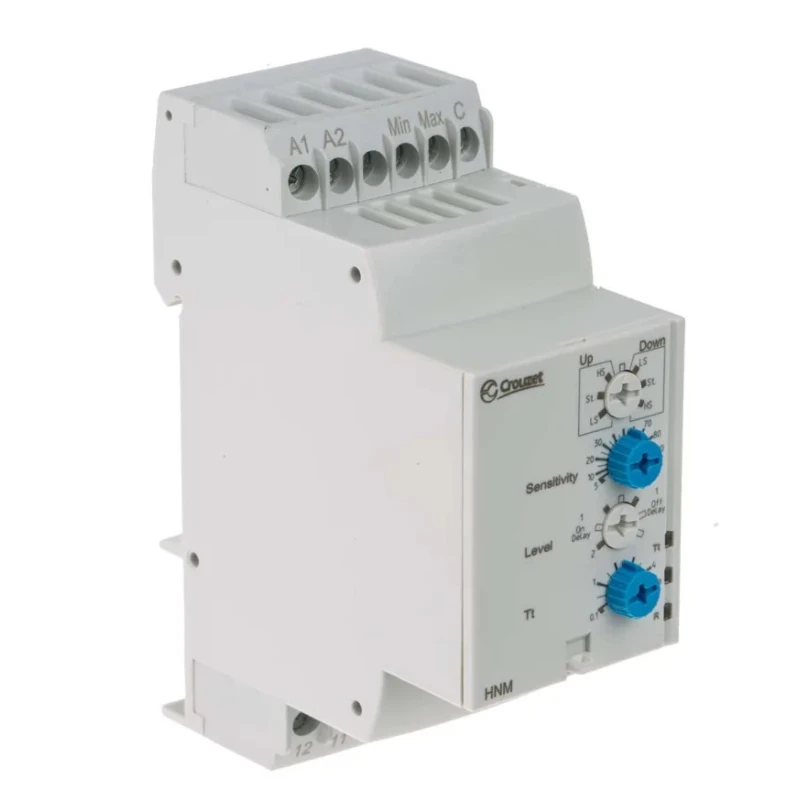

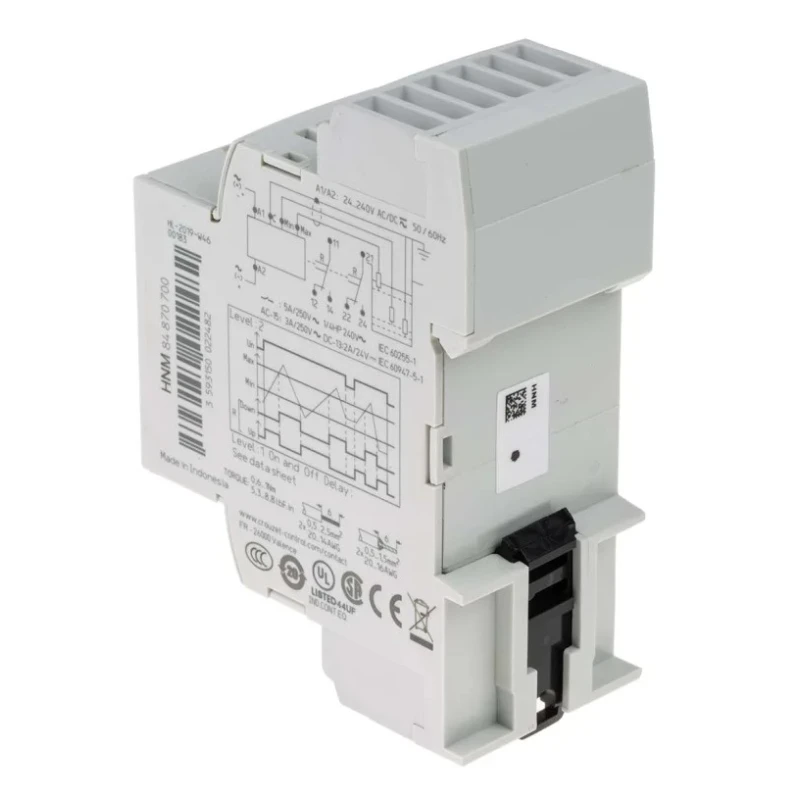

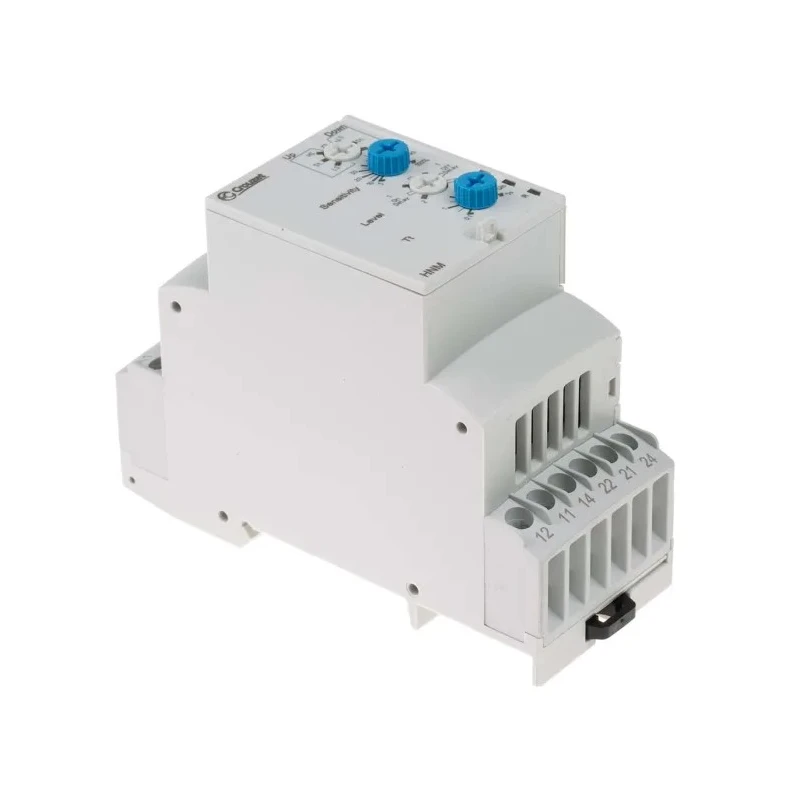

Crouzet Monitoring Relay DPDT DIN Rail 240V AC 240V DC 1.5W Power Consumption 0.1 to 5 s Time Delay 84870700
Specifications
| Country of Origin | Indonesia |
|---|---|
| Power Consumption | 1.5W |
| Brand | Crouzet |
| Height | 92.6mm |
| Length | 69mm |
| Model | 84870700 |
| IP Rating | IP30, IP20 |
| Width | 35mm |
| Mount Type | DIN Rail |
| Series | HNM |
| Maximum Operating Temperature | 50°C |
| Contact Configuration | DPDT |
| Time Delay | 0.1 to 5 s |
| Minimum Operating Temperature | +50°C |
| Terminal type | Screw |
| Supply DC Voltage | 240 V dc |
| Supply AC Voltage | 240V ac |
| Sensitivity adjustable in 3 ranges | - 250Ω → 5KΩ, 5Kohm → 100KΩ, 100KΩ → 1MΩ |
| Crouzet Level Controller - DIN Rail, 24 → 240 V ac/dc 2Brand | Crouzet |
| Crouzet Level Control Monitoring Relay, DPDTBrand | Crouzet |
Key Features
- The relay is designed for level control in conductive liquids with DPDT contact configuration.
- It supports DIN rail mounting with screw terminal types for secure installation.
- Operates within a temperature range of -20 to 50°C for reliable industrial use.
- The device includes adjustable sensitivity in three ranges up to 1 MΩ for flexible detection.
- IP30 and IP20 ratings offer protection suitable for industrial environments.
- Compact dimensions with height 92.6mm, width 35mm, and length 69mm achieve space-saving setups.
- Standards compliance includes WEEE, NF EN 60255-6, IEC 60255-6, UL 508, CSA C22.2 No. 14, and RoHS.
- Designed for monitoring and controlling liquid levels, pump protection against dry running, and leak detection.
Product Description
Crouzet 84870700 Monitoring Relay DPDT DIN Rail is a professional electrical device designed for level control of conductive liquids, operating at 240V AC/DC with a power consumption of 1.5W and an adjustable time delay of 0.1 to 5 seconds. This relay offers reliable and precise liquid level monitoring suitable for industrial and commercial applications.
Its DPDT contact configuration and DIN rail mount type with screw terminals provide ease of integration and robust mechanical connection. The relay functions effectively within an operating temperature range of -20 to 50 degrees Celsius, suitable for varied industrial environments.
The device sensitivity is adjustable across three ranges, from 250Ω to 1 MΩ, catering to diverse monitoring needs. This ensures accurate response to liquid level changes and control of filling or emptying processes with anti-wave effect delay.
Compact in design, the relay measures 92.6 mm in height, 35 mm in width, and 69 mm in length, allowing easy installation in constrained panel spaces. Its IP30 and IP20 protection ratings secure internal components against dust and accidental contact, enhancing durability.
Certified to international standards such as UL 508, CSA C22.2 No. 14, IEC 60255-6, NF EN 60255-6, and compliant with WEEE and RoHS directives, it assures safety and environmental compliance.
The relay is ideal for industrial control systems to monitor conductive liquid levels. It protects pumps from dry running by controlling minimum and maximum liquid levels. Suitable for leak detection and managing corrosive liquid media.

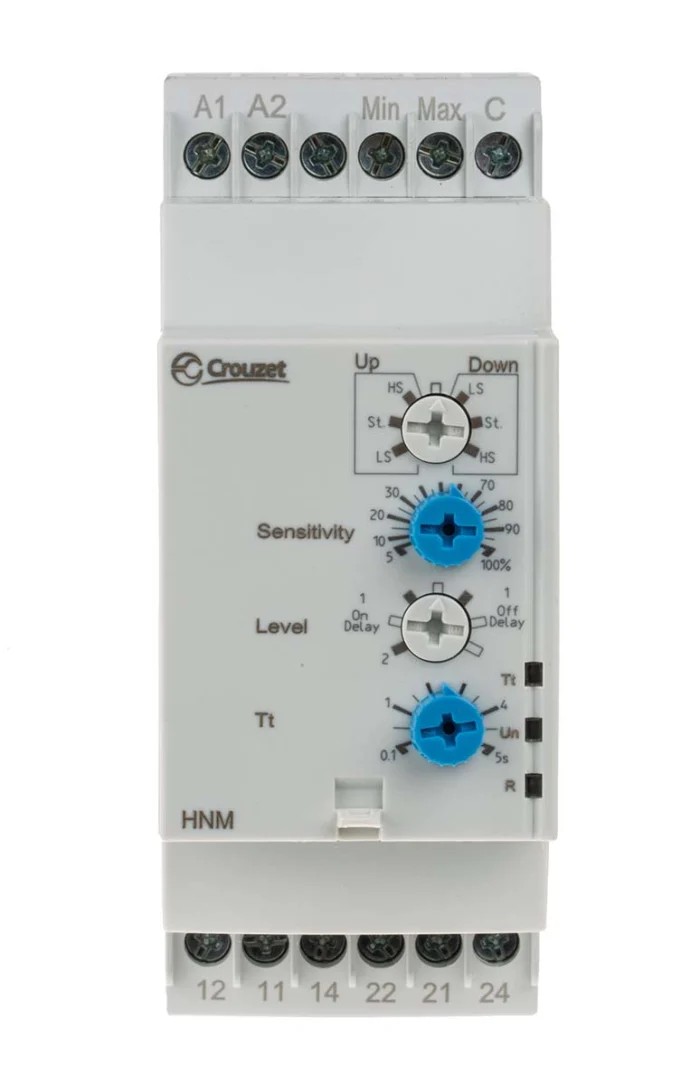

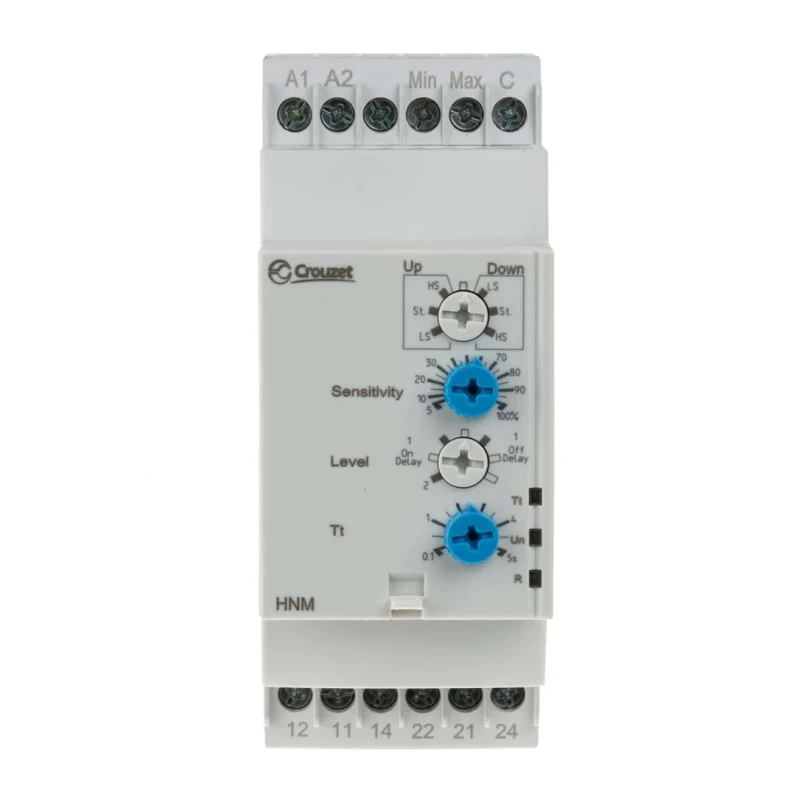

Its use extends to wastewater management, media mixing ratio control, and process automation. The front panel includes a switch for selecting monitoring direction (filling or emptying).
Set your monitoring applications with this durable and precise Crouzet monitoring relay and ensure enhanced process control in your electrical automation systems. Explore more Crouzet automation components and Monitoring Relays at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power consumption of this monitoring relay is 1.5W.
This model features a DPDT (Double Pole Double Throw) contact configuration.
The adjustable time delay for this relay ranges from 0.1 to 5 seconds.
The relay has a height of 92.6mm, a width of 35mm, and a length of 69mm.
It operates within a temperature range of -20 to 50°C.
This relay supports DIN rail mounting with screw terminal types for secure installation.
The monitoring relay has IP30 and IP20 ratings, providing protection against dust and accidental contact.
The sensitivity is adjustable in three ranges: 250Ω to 5KΩ, 5KΩ to 100KΩ, and 100KΩ to 1MΩ.
This relay is designed for monitoring and controlling liquid levels, pump protection against dry running, and leak detection.
It complies with several standards including UL 508, CSA C22.2 No. 14, IEC 60255-6, NF EN 60255-6, and is RoHS compliant.
It requires a supply voltage of 240V AC or 240V DC.
The country of origin for this monitoring relay is Indonesia.
