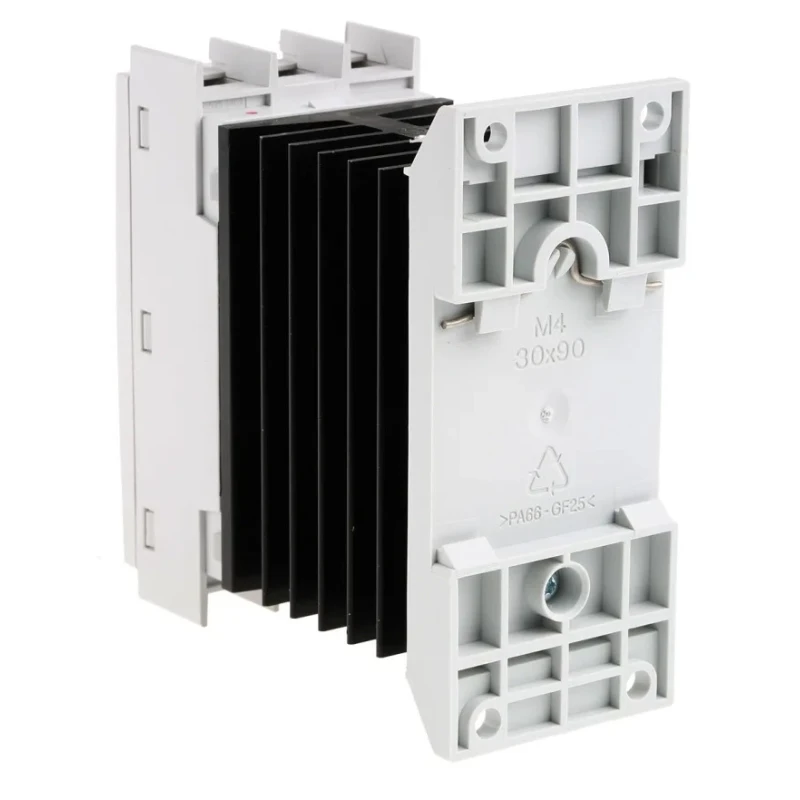

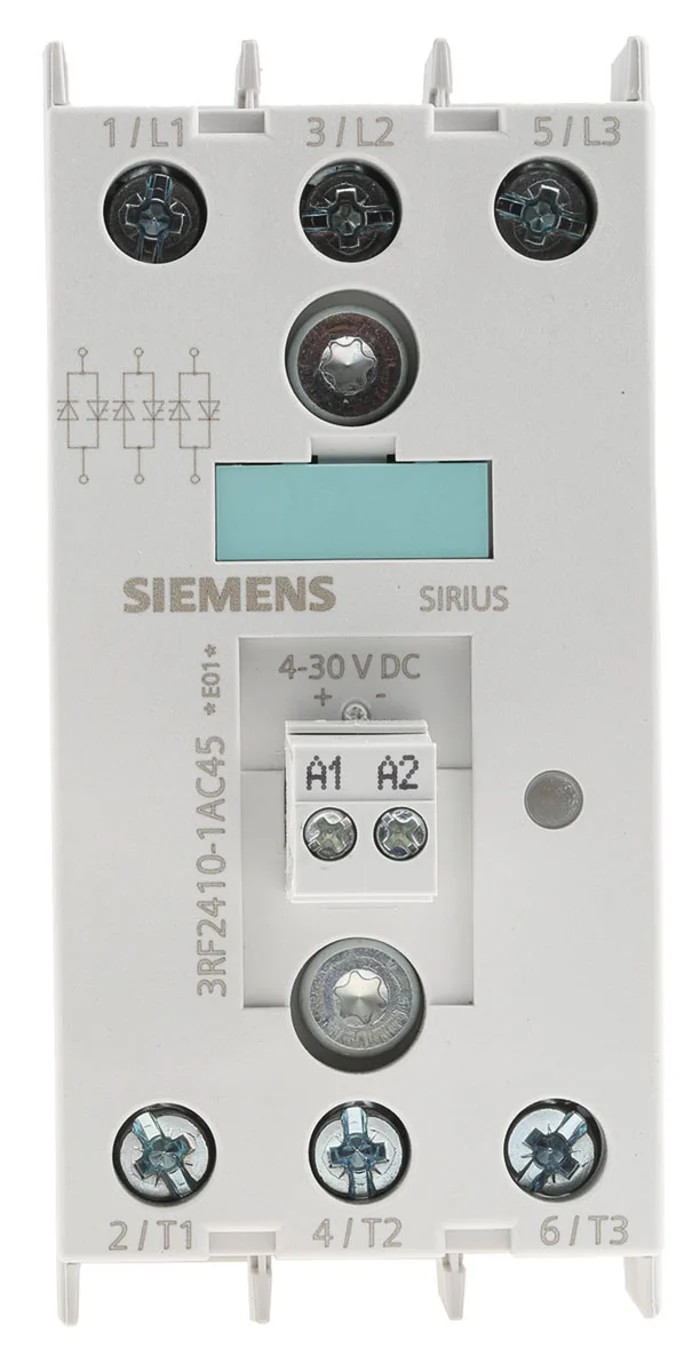

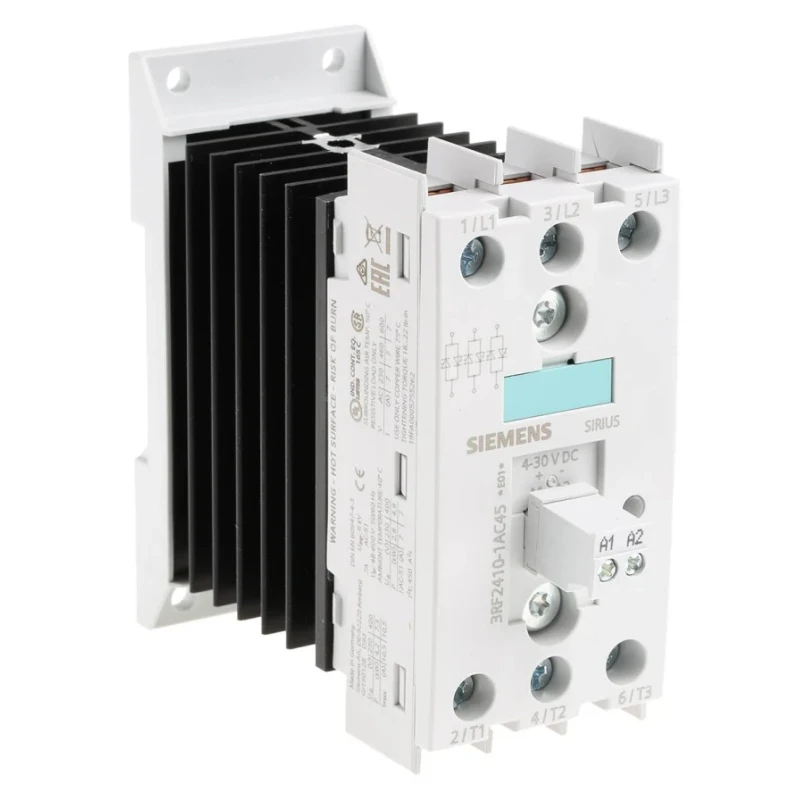

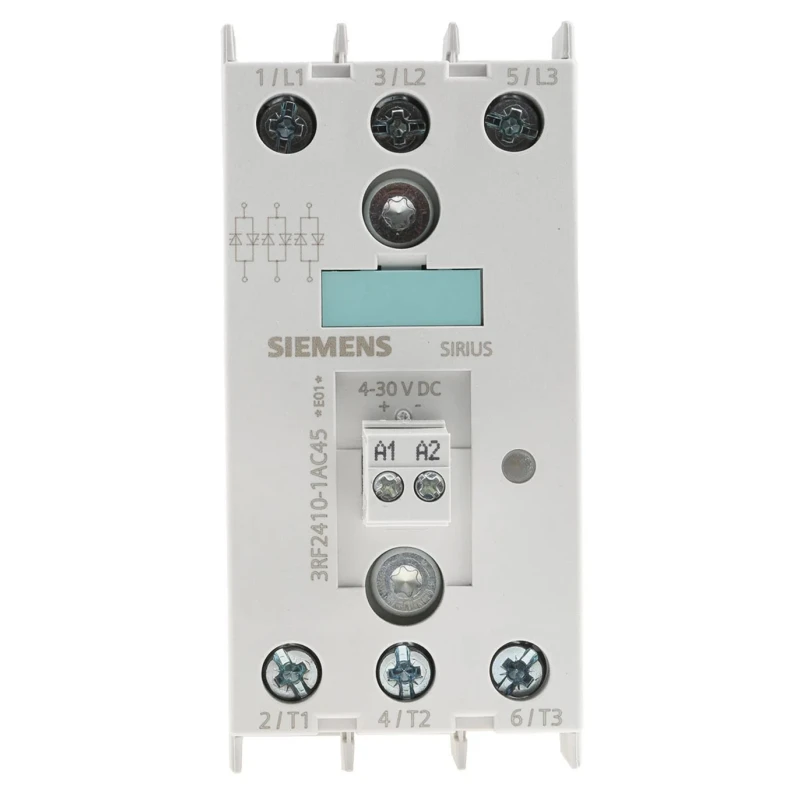

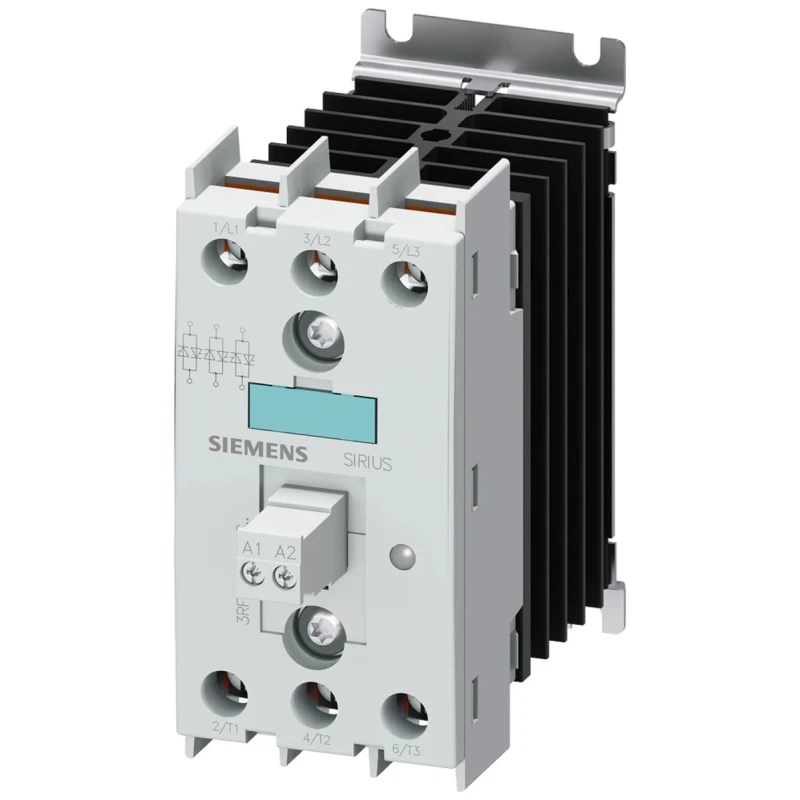

Siemens 3RF2 Series Solid State Relay 10.5 A Load 600 V Load 30V DC Control DIN Rail Mount 3PNO Thyristor 3RF2410-1AC45

Siemens 3RF2410-1AC45 is a SIRIUS series solid state relay designed for high-performance industrial applications. This relay supports a maximum load current of 10.5A and a maximum load voltage of 600V, making it suitable for controlling high-voltage loads such as electrical motors, heating equipment, and lighting circuits.

The relay features a 3PNO (3-pole normally open) thyristor output and zero cross switching, which reduces inrush currents and protects connected equipment during power transitions. This solid state relay mounts on DIN rails, allowing for quick and secure installation in control panels and electrical enclosures.

It operates efficiently across a wide temperature range from -25°C to +60°C, ensuring reliability in varied industrial environments. The device has compact dimensions: 45mm width, 100mm height, and 45mm length, ideal for space-constrained applications.

Safety is a key feature, with an IP20 rating providing touch protection and a built-in cooling element to prevent overheating. Its surge current resistance up to 300A further enhances operational durability against electrical spikes.

Manufactured in Germany, the relay meets rigorous international standards including CE, CSA, EAC, RCM, RoHS, UKCA, UL, and VDE certifications, ensuring compliance and quality assurance for industrial and commercial deployments.

Supports a maximum load current of 10.5 A for robust circuit handling. Operates at a maximum load voltage of 600 V ensuring compatibility with high-voltage systems. Equipped with a 3PNO (3-pole normally open) thyristor output configuration.

Mounts easily on DIN rails for convenient and compact installation. Zero cross switching function protects against inrush currents by switching at 0V supply. Wide operating temperature range from -25°C to 60°C suitable for varied ambient conditions.

Compact dimensions of 45mm width, 100mm height, and 45mm length optimize space usage. Incorporates IP20 touch-proof rating for safe handling in electrical environments. Off-state leakage current is low at 10mA to reduce standby loss.

High surge current resistance of 300A ensures durability under transient conditions. Manufactured in Germany maintaining high-quality standards with CE, CSA, EAC, RCM, RoHS, UKCA, UL, and VDE approvals.

This Solid State Relay is ideal for industrial, manufacturing, electrical automation, HVAC, and commercial applications requiring reliable high-capacity electrical load switching. Choose Siemens 3RF2410-1AC45 for durable and high-performance relay applications.
