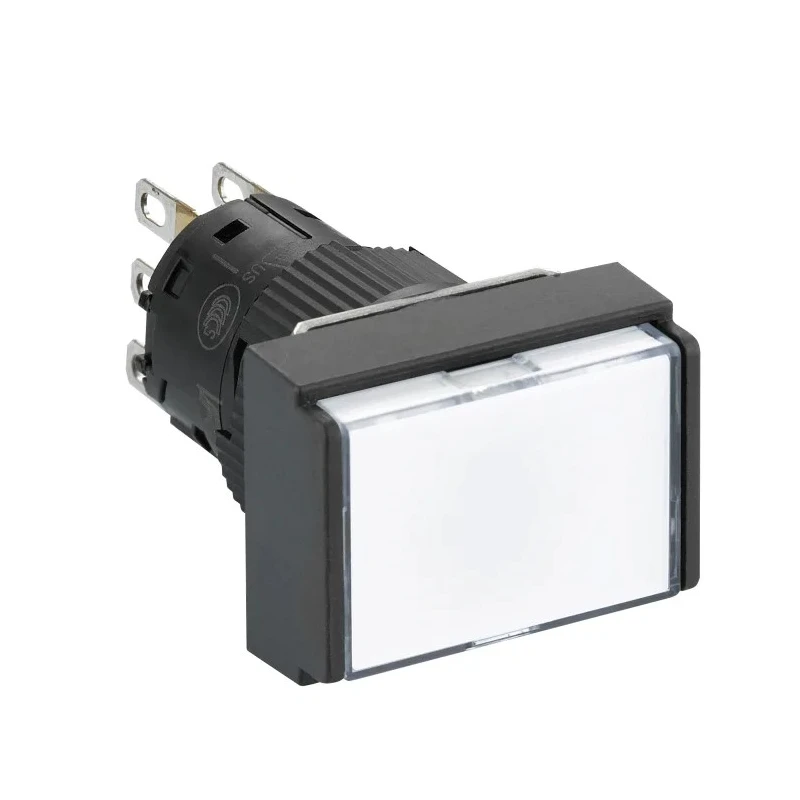

Schneider Electric Harmony XB6E Series Illuminated Push Button Switch, Spring Return, Panel Mount, 16 mm Cutout XB6EDW1B1P
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 30mm |
| Length | 200mm |
| Model | XB6EDW1B1P |
| IP Rating | IP65 |
| Width | 95mm |
| Mount Type | Panel |
| Series | Harmony XB6E |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Switch Configuration | 1 CO |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 16 mm |
| Terminal type | Quick Connect, Solder Tag |
| LED Colour | White |
| Switch Operation | Spring Return |
| Actuator Colour | White |
| Contact DC Voltage | 110V |
| Actuator Style | Rectangular |
| Switch Contact Current | 1A |
| Contact AC Voltage | 250V |
| Legend | Blank |
| Schneider Electric XB6 Series Push Button, Panel Mount, DPDT, IP65Brand | Schneider Electric |
Key Features
- This push button switch includes a spring return operation ensuring the actuator returns to its original position.
- The white rectangular actuator is illuminated by a built-in LED light for visibility in low light.
- It supports a single-pole double-throw (SPDT) contact configuration for versatile switching.
- Designed with IP65 rating, it offers protection against dust ingress and low-pressure water jets.
- The durable plastic bezel provides resistance to certain liquids and easy maintenance.
- Suitable for panel mounting with quick connect and solder tag terminals for ease of installation.
- Operates reliably across a temperature range from -25°C to 55°C, ensuring durability in various environments.
- The device has a mechanical durability rated for 1,000,000 cycles, offering long service life.
Product Description
Schneider Electric XB6EDW1B1P is part of the Harmony XB6E Series of illuminated push button switches designed for high reliability and versatility in industrial control applications. The push button features a spring return operation where the rectangular white actuator automatically returns to the off position after being pressed. The integral white LED illuminates the actuator for clear visibility in low-light conditions.
This panel mount push button switch fits a 16 mm cutout and supports a single-pole double-throw (SPDT) contact configuration, offering flexible control options. It is equipped with quick connect and solder tag terminals facilitating easy and secure wiring connections.
The push button is constructed with a durable plastic bezel, resistant to liquids and designed for easy cleaning. Its IP65 rating provides full protection from dust ingress and low pressure water jets, making it suitable for harsh industrial environments including wash down procedures.
Operating temperature ranges from -25°C to 55°C, allowing use in diverse climates. The switch contact current is rated at 1A for both AC (up to 250V) and DC (up to 110V) voltages.
With a mechanical durability rated at 1,000,000 operational cycles, the device offers dependable long-term performance in control panels, automation lines, automotive and manufacturing industries, as well as commercial applications requiring robust push button controls.
Approved to international standards including IEC 60947-1, IEC 60947-5-1, UL 508, CSA C22.2 No 14, and JIS C standards, ensuring compliance with global electrical safety and quality requirements.
This push button switch combines high mechanical endurance and solid protection for demanding industrial control stations. Ideal for use in emergency stop functions, factory automation, commercial food processing units, and automotive manufacturing controls.
Explore more Push Button Switches and components from Schneider Electric’s Harmony XB6E Series at EnvMart for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single-pole double-throw (SPDT) contact configuration, allowing for versatile switching options.
It has an IP65 rating, providing protection against dust ingress and low-pressure water jets, making it suitable for harsh environments.
The operating temperature range is from -25°C to 55°C, allowing it to function in diverse climatic conditions.
It is equipped with quick connect and solder tag terminals for easy and secure wiring connections.
This unit requires a 16 mm cutout for panel mounting.
It has a mechanical durability rated for 1,000,000 cycles, ensuring long service life in various applications.
The actuator is illuminated by a white LED, providing visibility in low-light conditions.
The switch contact current is rated at 1A for both AC (up to 250V) and DC (up to 110V) voltages.
The bezel is made of durable plastic, resistant to certain liquids and designed for easy maintenance.
The dimensions are 30 mm in height, 95 mm in width, and 200 mm in length.
It is approved to several international standards including IEC 60947-1, IEC 60947-5-1, UL 508, and CSA C22.2 No 14.
The actuator style is rectangular, designed for spring return operation.
