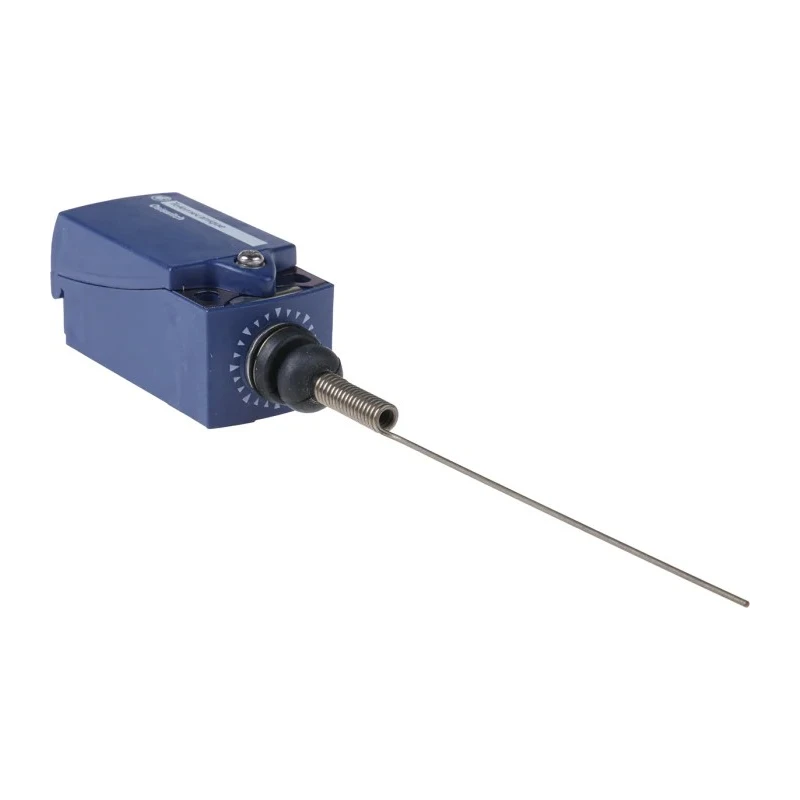

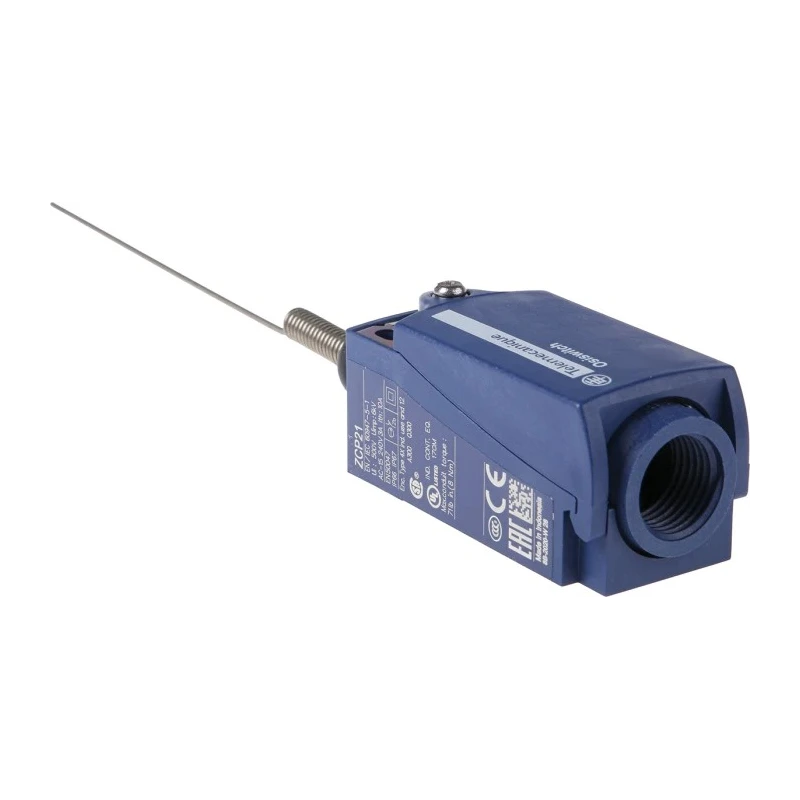

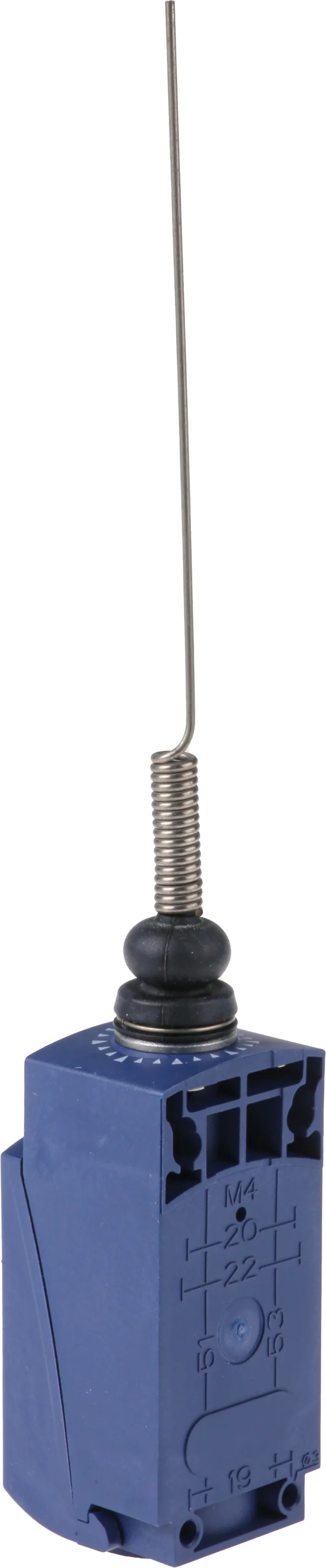

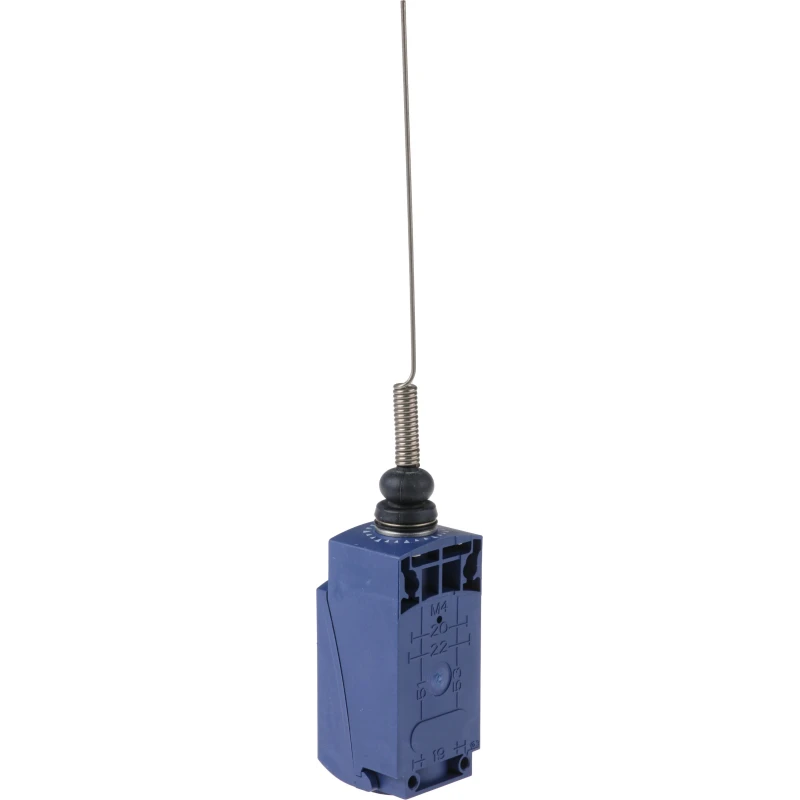

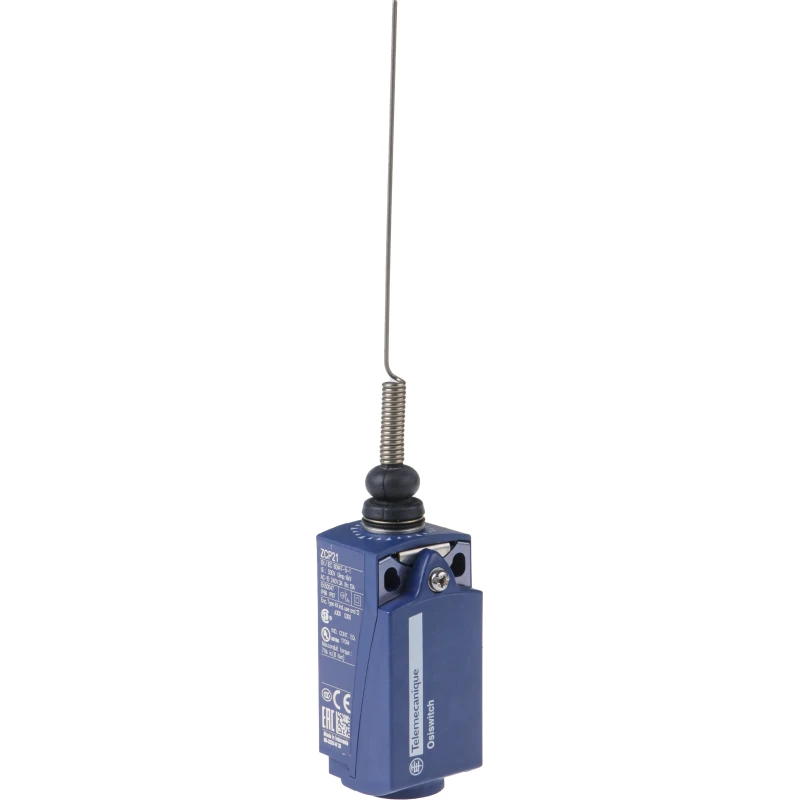

Telemecanique Sensors OsiSense XC Series Cats Whisker Limit Switch 1 NO/1 NC Plastic Housing 240V AC 10A XCKP2106P16
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Telemecanique Sensors |
| Length | 65mm |
| Model | XCKP2106P16 |
| Depth | 30mm |
| IP Rating | IP67, IP66 |
| Width | 31mm |
| Housing Material | Plastic |
| Series | OsiSense XC |
| Maximum Operating Temperature | 70°C |
| Mounting Orientation | Multi Directional |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Cats Whisker |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 10A |
| Terminal type | Screw |
| Standards/Approvals | UL, IEC 60204-1, EN 60204-1, CSA, CCC |
| Operating Force | 0.13Nm |
| Mechanical Life | 5000000Cycles |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 240V ac |
| Conduit Entry | M20 |
Key Features
- Rated for 10 amp switching current at 240V AC and 250V DC voltages.
- Durable plastic housing with IP67 and IP66 protection ratings.
- Mechanical life expectancy of 5,000,000 cycles ensures long-term reliability.
- Operates in temperatures ranging from -25°C to 70°C for versatile use.
- Includes screw terminal type for secure electrical connection.
- Suitable for multidirectional mounting with an operating force of 0.13 Nm.
- Compliant with UL, IEC 60204-1, EN 60204-1, CSA, and CCC standards.
Product Description
Telemecanique Sensors XCKP2106P16 is an OsiSense XC Series Cats Whisker limit switch designed for precise and reliable operation in industrial control systems. It features a snap action contact mechanism with a configuration of one normally open (1 NO) and one normally closed (1 NC) contact, suitable for a broad range of switching applications.
This limit switch is housed in a robust plastic casing that provides excellent protection with IP67 and IP66 ratings against dust and water ingress, making it suitable for harsh environments and outdoor use. The actuator is a cats whisker type, providing a responsive mechanical interface to detect position changes.
Designed to operate under a wide temperature range from -25°C to 70°C, it withstands demanding industrial conditions. The device supports switching currents up to 10 amps at 240V AC and 250V DC, making it versatile for controlling various electrical loads.
The compact form factor with precise dimensions of 65mm length, 31mm width, and 30mm depth enables easy integration into machinery and equipment. Screw terminals ensure secure and reliable electrical connections. The mechanical life rating of 5 million cycles underscores its durability and endurance for long-term installation.
Telemecanique Sensors limit switches are widely used in automation, manufacturing, material handling, and conveyor systems to provide accurate position sensing and safety interlocking. Their robust construction and compliance with international standards including UL, IEC, EN, CSA, and CCC make them a trusted choice in industrial applications.
Rated 10A switching current at 240V AC and 250V DC voltages. Compact, IP67 and IP66-rated plastic housing. Snap action contacts, 1 NO/1 NC configuration. Mechanical life of 5,000,000 cycles guarantees durability. Wide operating temperature from -25°C to 70°C.
Multi-directional mounting capability with 0.13 Nm operating force. Complies with multiple international safety standards.
This product is manufactured in Indonesia and is designed for industrial automation, manufacturing, and control system applications. Explore more sensors and Limit Switches from Telemecanique Sensors available at EnvMart for your automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a switching current of 10 amps at 240V AC and 250V DC.
The dimensions of this limit switch are 65mm in length, 31mm in width, and 30mm in depth.
It operates effectively within a temperature range of -25°C to 70°C.
This unit features a cats whisker type actuator, which provides a responsive mechanical interface for position detection.
The mechanical life expectancy is rated at 5,000,000 cycles, ensuring long-term reliability.
The housing has IP67 and IP66 protection ratings, making it suitable for harsh environments and outdoor use.
It includes screw terminals for secure and reliable electrical connections.
Yes, it supports multi-directional mounting, providing flexibility in installation.
This model has a contact configuration of one normally open (1 NO) and one normally closed (1 NC) contact.
It complies with multiple international standards including UL, IEC 60204-1, EN 60204-1, CSA, and CCC.
The operating force for this model is 0.13 Nm.
This limit switch is manufactured in Indonesia.
