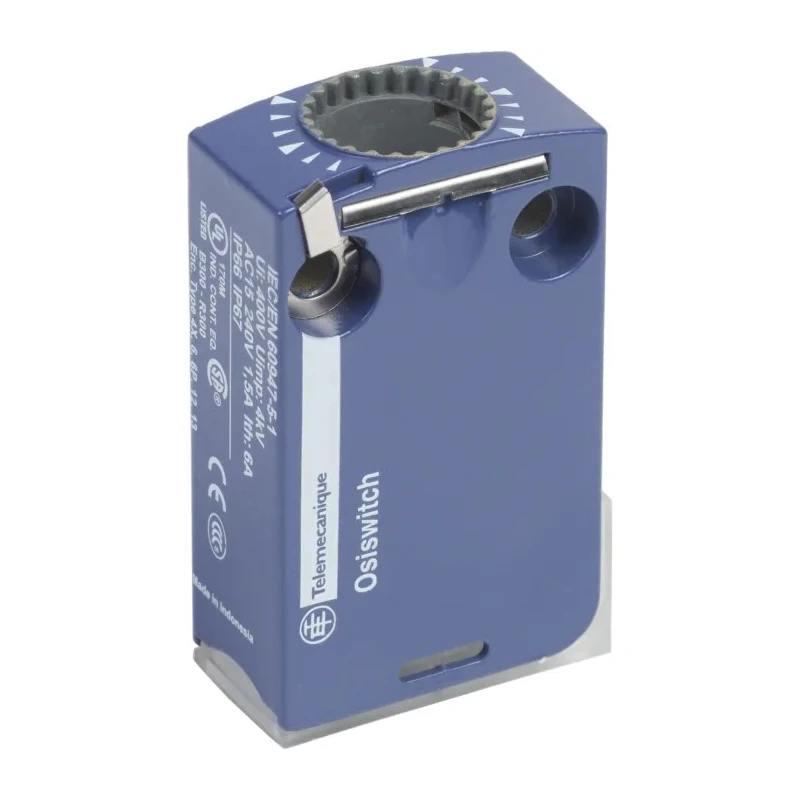

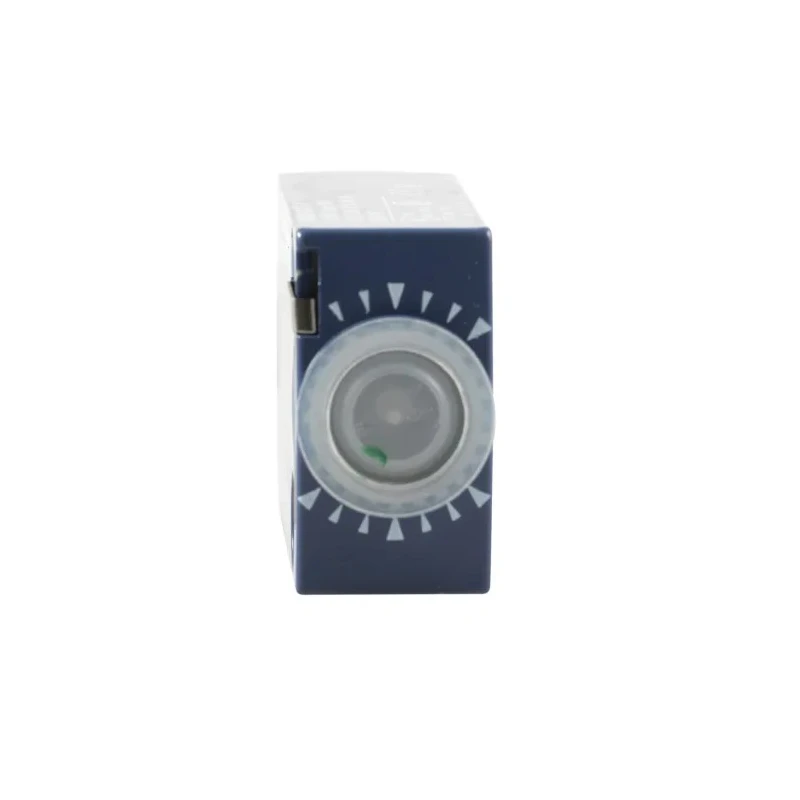

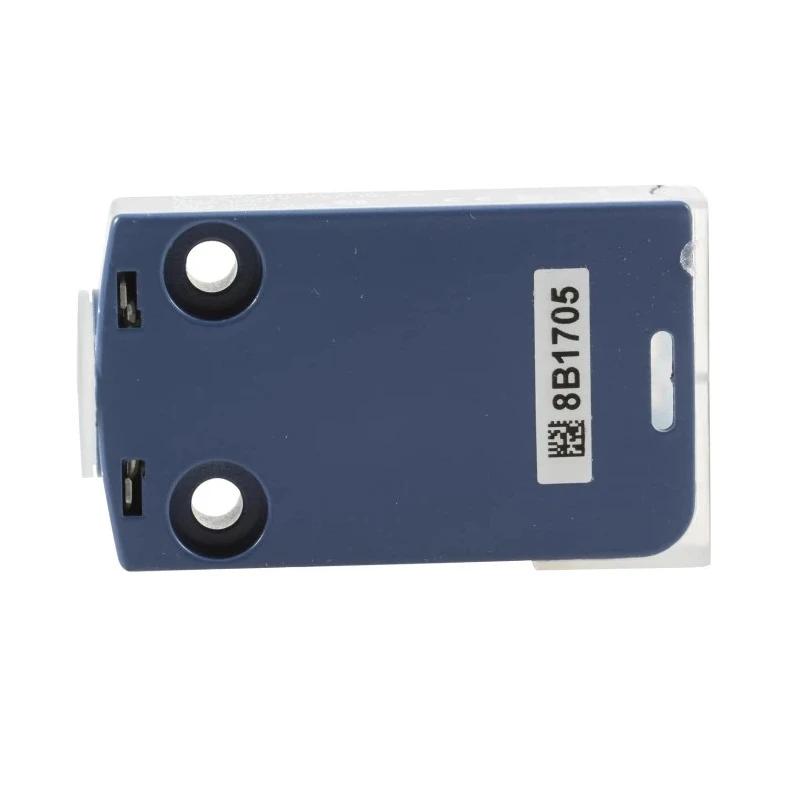

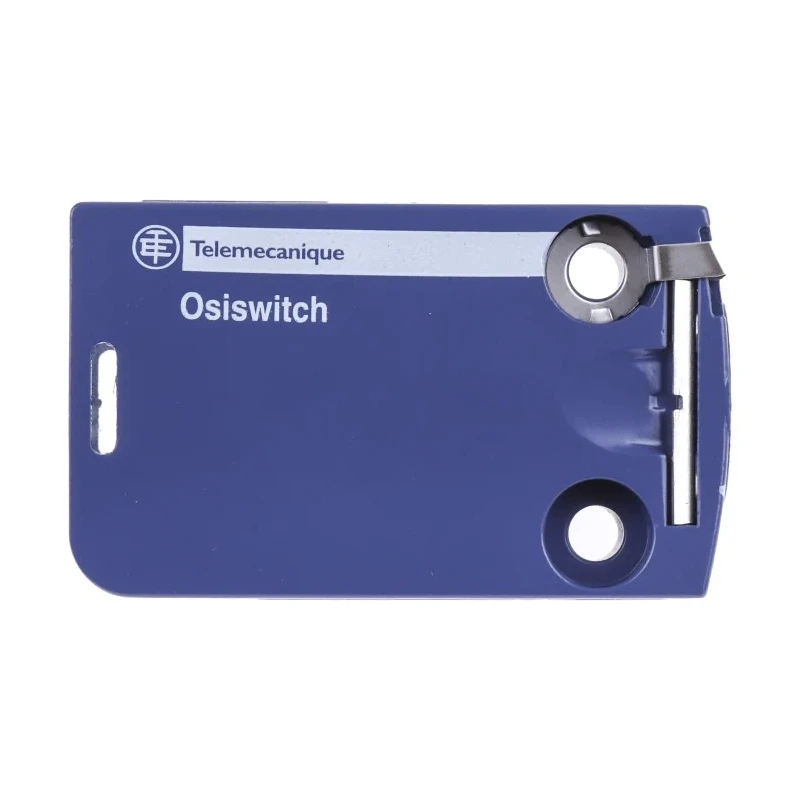

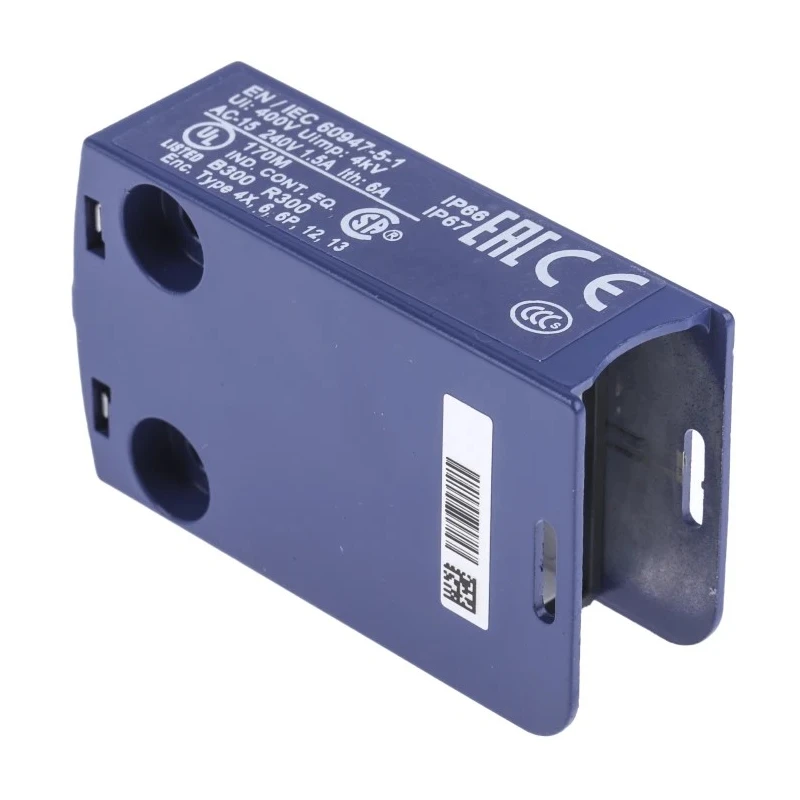

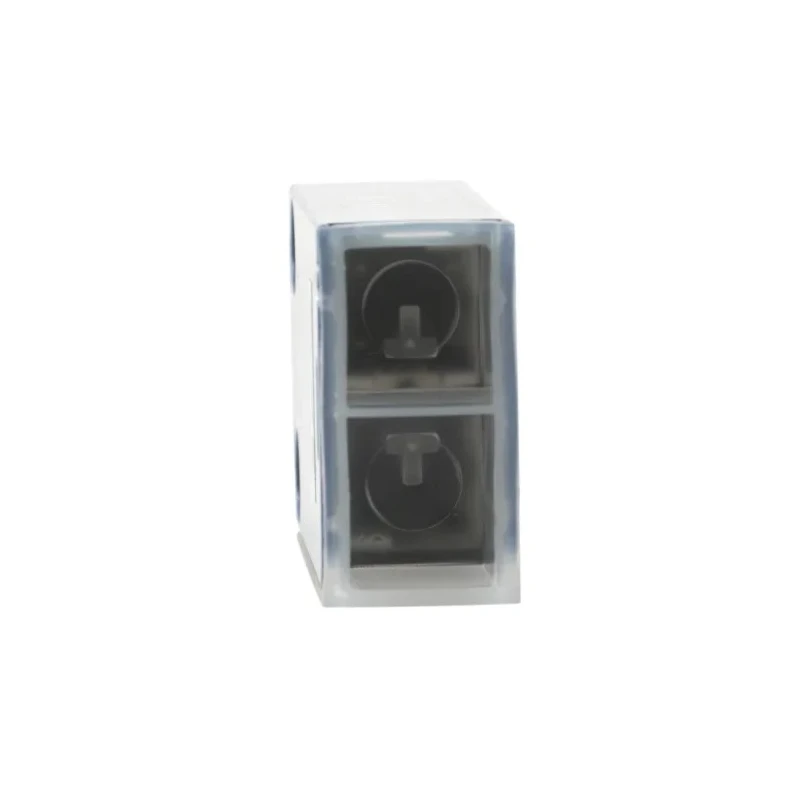

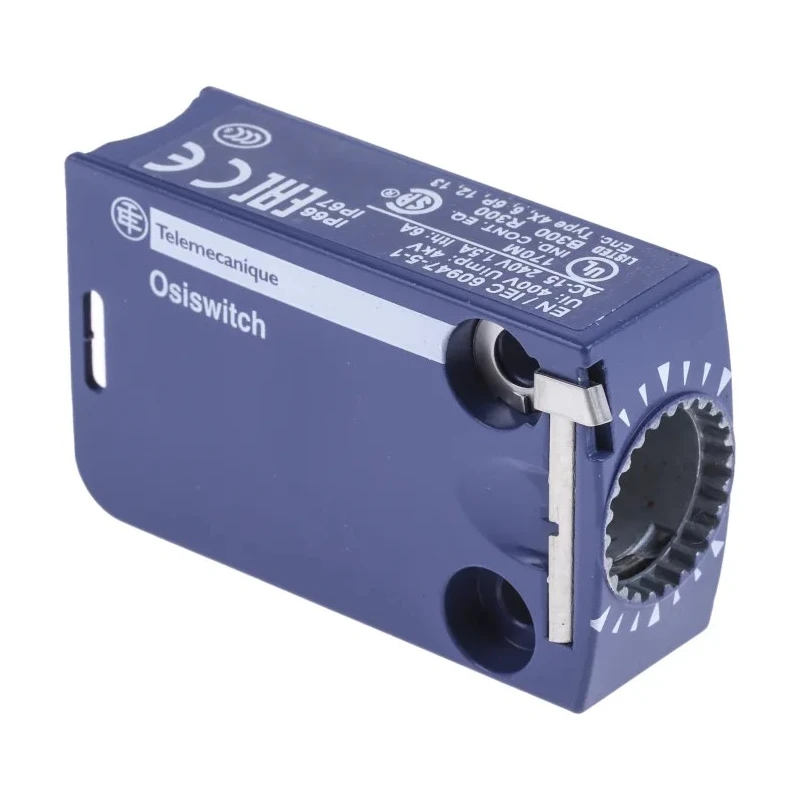

Telemecanique Sensors ZCMD Series Limit Switch Body, 1 NO/1 NC, IP66, Zamak Housing, 240V AC, 1.5A

Telemecanique Sensors ZCMD21 Limit Switch Body is engineered for industrial automation as a compact, reliable device for position sensing and limit detection. With a robust zamak housing and IP66 rating, it is suitable for use in dusty, wet, and demanding factory or process control environments. It features 1 normally open and 1 normally closed snap-action contact, delivering rapid and durable electrical switching performance rated for up to 240V AC and 250V DC applications.

This limit switch body benefits from a mechanical life of 5 million cycles, ensuring extended operational reliability while minimizing maintenance intervals. It operates within a wide temperature range from -25°C to 70°C, enabling use in cold storage adjacent areas and warm industrial spaces without derating.

Designed for easy installation, the switch utilizes a plug-in mounting orientation and connector type terminals, allowing fast wiring into modular control assemblies or machine panels. The compact footprint with dimensions of 50mm length, 30mm width, and 16mm depth provides seamless integration into machine enclosures with tight space constraints.

The snap-action mechanism provides precise electrical changeover for control signaling and safety interlock feedback in automation, packaging machinery, conveyor monitoring, and end-of-travel detection on industrial actuators. It complies with international standards UL 508, IEC 60947-1, EN/IEC 60947-5-1, and CSA C22.2 No 14, supporting deployments that demand certified and safe electrical components.

Snap-action contacts enable rapid and precise switching for accurate control. 1 NO/1 NC configuration supports both make and break electrical signals. Rated for 240V AC and 250V DC, compatible with various circuits. Zamak housing ensures durability and resistance against mechanical stress.

IP66 enclosure provides complete dust tightness and water resistance against powerful jets. Mechanical life rated at 5,000,000 cycles, reducing maintenance needs. Compact size with 50mm length, 30mm width, and 16mm depth for easy installation.

Wide operating temperature range from -25°C to 70°C. Plug-in mounting orientation with connector terminals for easy wiring. Certified to UL 508, IEC 60947-1, EN/IEC 60947-5-1, and CSA C22.2 No 14 standards.

This Telemecanique limit switch is ideal for industrial automation applications including safety interlock feedback systems, machine door monitoring, conveyor position sensing, and packaging machinery limit detection. Its robust construction and certified compliance make it suitable for demanding manufacturing, HVAC, and control panel environments. Browse the full collection of Limit Switches and sensing devices at EnvMart for reliable industrial automation solutions.
