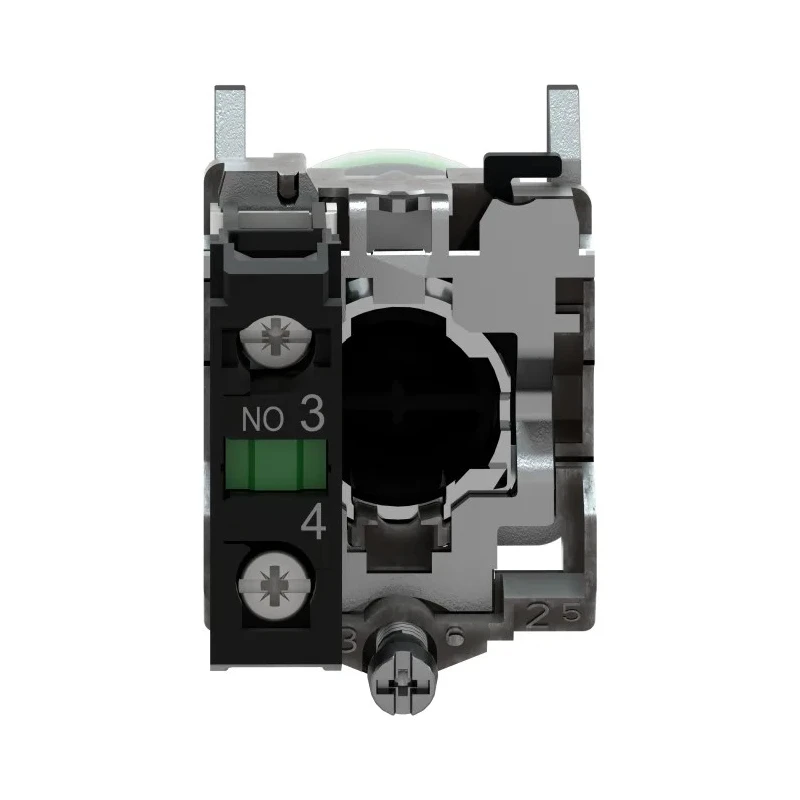

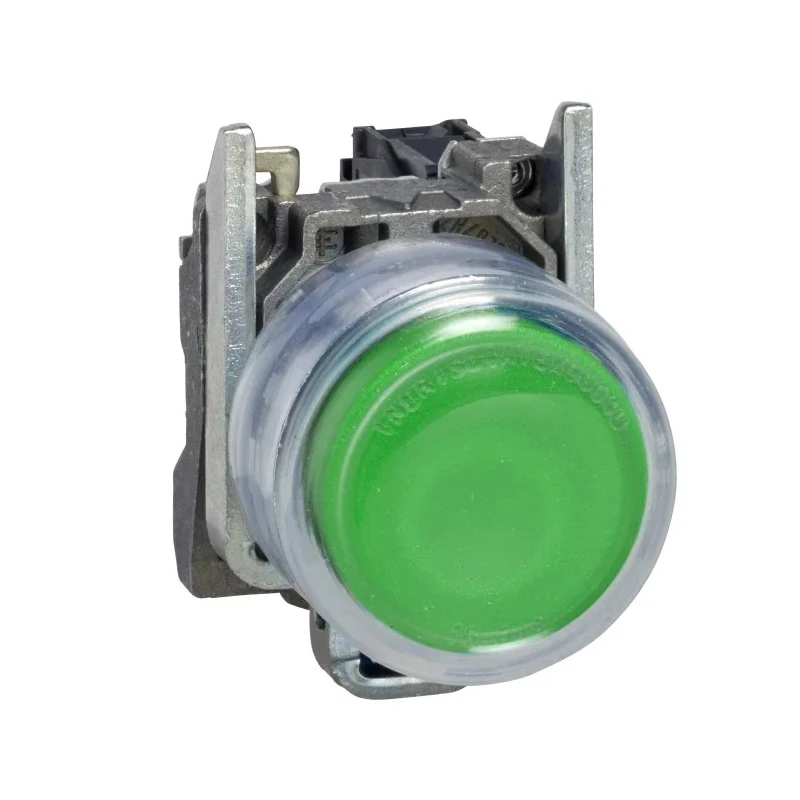

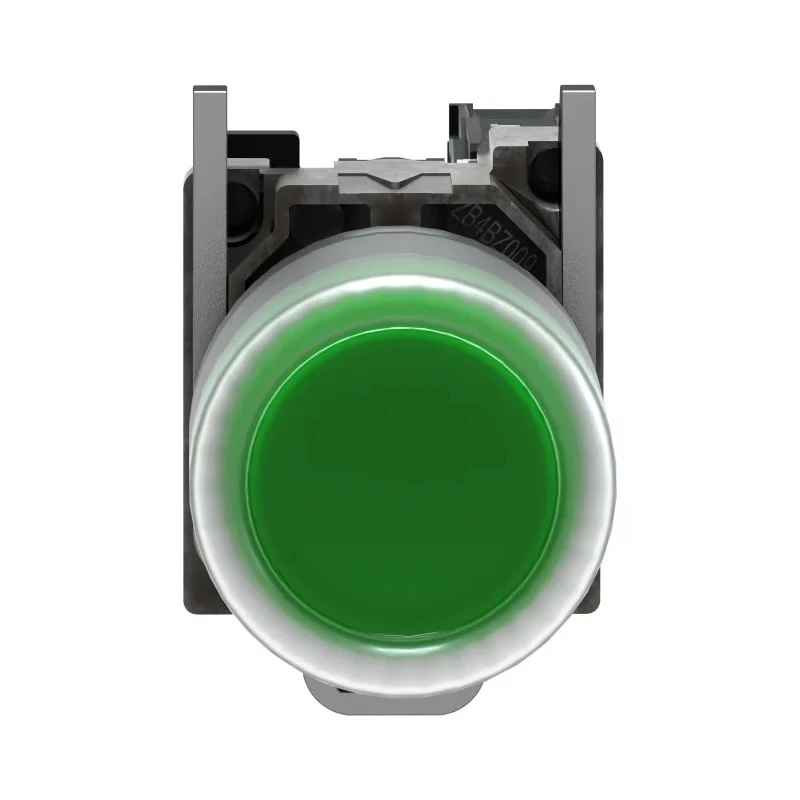

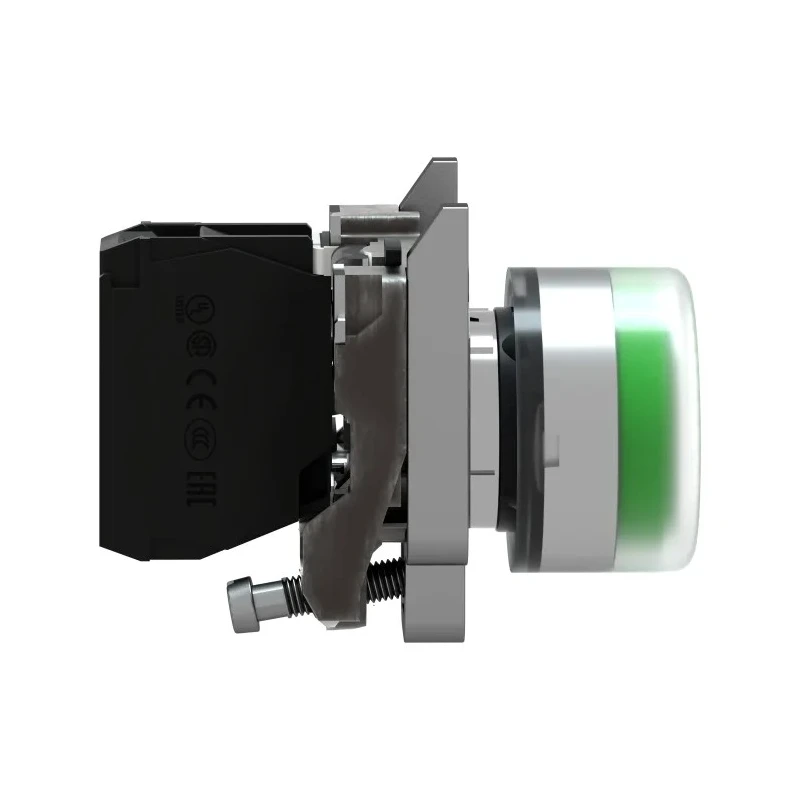

Schneider Electric Harmony XB4 Series Push Button Switch Spring Return Panel Mount 22 mm Cutout SPST Green LED IP66 XB4BP31EX

Name: Schneider Electric Harmony XB4 Series Push Button Switch Spring Return Panel Mount 22 mm Cutout SPST Green LED IP66 XB4BP31EX
Brand: Schneider Electric
SKU: 342057
Price: 7198.08 INR
Availability: InStock



Category Push Button Switches Brand Schneider Electric Condition New

Specifications

Country of Origin	India
Brand	Schneider Electric
Height	35mm
Length	200mm
Model	XB4BP31EX
IP Rating	IP66, IP67
Width	140mm
Mount Type	Panel
Series	Harmony XB4
Maximum Operating Temperature	70°C
Contact Configuration	SPST
Switch Configuration	1 NO
Minimum Operating Temperature	-25°C
Panel Cutout Size	22 mm
Terminal type	Screw
LED Colour	Green
Switch Operation	Spring Return
Actuator Colour	Green
Contact DC Voltage	600V dc
Actuator Style	Round
Switch Contact Current	10A
Contact AC Voltage	600V
Better World Claim	Repairable by the End User
Legend	Blank

Key Features

The switch is designed for panel mounting with a compact 22 mm cutout size.
It features a chromium plated metal bezel with zamak fixing collar for durability and ease of maintenance.
The device is rated IP66 and IP67, providing excellent protection against dust and water ingress.
Operating temperature range is from -25°C to 70°C ensuring reliable performance in varied environments.
The switch supports AC and DC voltages up to 600V and a contact current of 10A.
It offers high mechanical durability with one million operational cycles.
The product complies with EN 50014, EN 50281-1-1, IEC 61241-0, IEC 61241-1, and ATEX directives for safety and performance.
Suitable for industrial control stations and emergency stop scenarios in automation and manufacturing sectors.

Product Description

Schneider Electric XB4BP31EX Harmony XB4 Series Push Button Switch is engineered for industrial and automation applications, providing reliable control with its spring return actuator and enhanced protection features.

This panel-mounted push button switch requires a 22 mm cutout and offers single pole, single throw (SPST) contact configuration. Its green LED illumination ensures clear visual status indication during operation, although it is specified as non-illuminated switch operation, the LED color is green indicating status.

The chromium plated metal bezel coupled with a zamak fixing collar ensures robustness and ease of maintenance, making the switch suitable for harsh environments. It supports operating temperatures from -25°C up to 70°C, enabling deployment in diverse industrial conditions.

Rated IP66 and IP67, the switch is highly resistant to dust and water ingress, including protection against water immersion and high-pressure steam cleaning (IP69). These features make it ideal for use in systems exposed to challenging environmental factors such as oils, greases, steam, and water jets.

Its contact ratings of 600V AC/DC and 10A current, along with compliance to international standards including EN 50014, EN 50281-1-1, IEC 61241-0, IEC 61241-1, and ATEX directives, ensure safe and reliable operation in electrical control panels and safety devices.

With mechanical durability rated to a million cycles, this push button switch suits control stations, panels, and emergency stop applications, particularly in factory automation and automotive industries.

The switch's compact 22 mm mounting diameter is perfect for panels with limited space. Its robust construction provides resistance to chemicals, oils, and mechanical wear. Integration of a green LED color enhances operator feedback without requiring separate indicator lamps.

Compliance with international safety standards endorses its use in hazardous and industrial environments. Its spring return operation supports safety-driven applications requiring momentary activation.

Overall, the Schneider Electric Harmony XB4 Series push button switch XB4BP31EX is a high-quality component designed for durable, reliable industrial operation. Explore more products in the Push Button Switches category at EnvMart for your automation and control needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The switch has an IP rating of IP66 and IP67, providing excellent protection against dust and water ingress, including resistance to water immersion and high-pressure steam cleaning.

This model operates within a temperature range of -25°C to 70°C, making it suitable for diverse industrial environments.

The switch features a single pole, single throw (SPST) contact configuration, which is commonly used in various control applications.

It supports AC and DC voltages up to 600V and has a contact current rating of 10A, making it versatile for different electrical systems.

The switch requires a panel cutout size of 22 mm for installation, allowing it to fit into compact spaces.

It features a chromium plated metal bezel and a zamak fixing collar, which enhance its durability and ease of maintenance in harsh environments.

The switch is rated for high mechanical durability with one million operational cycles, ensuring long-term reliability in use.

This unit utilizes screw terminals for secure electrical connections, facilitating easier installation and maintenance.

Yes, it complies with international safety standards including EN 50014 and ATEX directives, making it suitable for use in hazardous environments.

The actuator style is round, and it features a green color for enhanced visibility during operation.

It is suitable for industrial control stations and emergency stop scenarios, particularly in automation and manufacturing sectors.

Yes, it is designed to be repairable by the end user, supporting sustainability and ease of maintenance.
