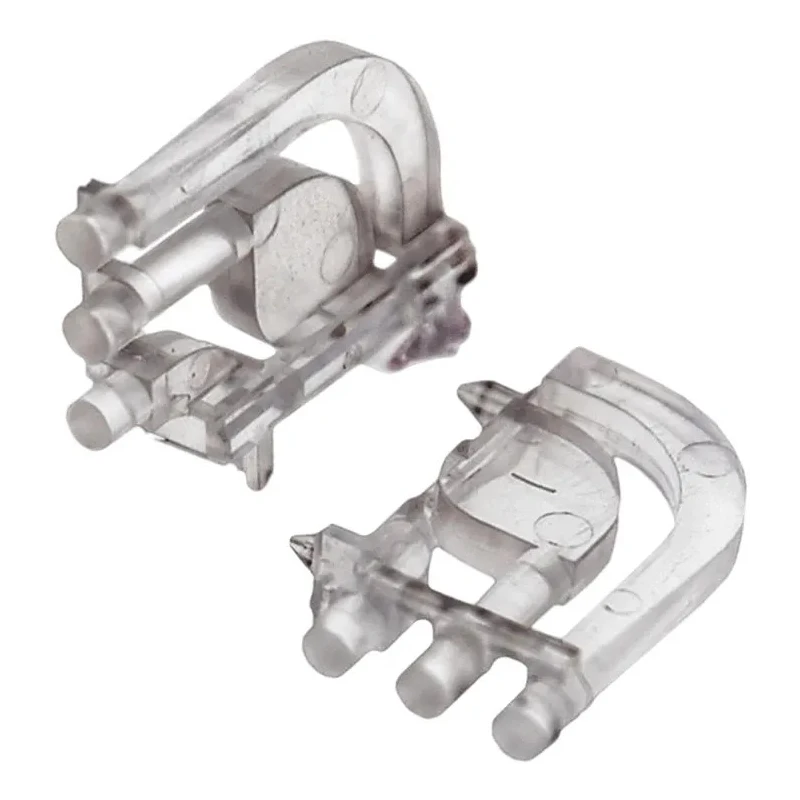

Dialight PCB 3-Way Right Angle Rigid LED Light Pipe Clear 3 x 3 mm 515-1064F

Dialight 515-1064F PCB 3-Way Right Angle Rigid LED Light Pipe is a high-quality optical component designed for LED lighting applications that require efficient and controlled light transmission through PCBs. This rigid light pipe, crafted from high-transmissivity polycarbonate material, ensures durability and excellent light conductivity.

Its configuration features three light channels arranged in a right angle orientation, enabling multi-directional lighting with a compact footprint. Engineered to be compatible with MicroLED® SMD LEDs, specifically the PLCC-2 and PLCC-4 SMT packages, the 515-1064F light pipe provides reliable performance in industrial, electronic, and display applications.

The component includes ESD protection, which guards the underlying circuits from potential electrostatic discharge damage by providing isolation from the front panel. This improves device longevity and operational safety.

The clear lens color enhances light fidelity and brightness, ensuring that light from the LEDs is transmitted with minimal attenuation. The component meets RoHS compliance standards, reflecting its environmentally responsible manufacturing process.

With a length of 22.9 mm, a lens size of 3 x 3 mm, and an outside diameter of 2.5 mm, this compact LED light pipe is easy to integrate into printed circuit boards using its press-fit mount mechanism.

Constructed with rigid polycarbonate material for durability and high transmissivity. Designed for use with PLCC-2 and PLCC-4 package SMT LEDs. Features a right angle orientation with three light paths for multi-directional illumination.

Secure press-fit mounting on PCB ensures stable installation. Offers ESD protection to isolate circuitry from front panel damage. Clear lens color provides optimal light passage with minimal loss. Complies with RoHS standards for environmental safety.

Measures 22.9 mm in length with a 3 x 3 mm lens size and 2.5 mm outside diameter. Part of the Optopipe series known for wide viewing angle and cost-effective array options.

This LED Light Pipe is suitable for use in electronics manufacturing, display technologies, and other industrial applications requiring precise optical guidance of LED output. Its robust construction, standard mounting, and environmental compliance make it a reliable choice for varied professional uses.
