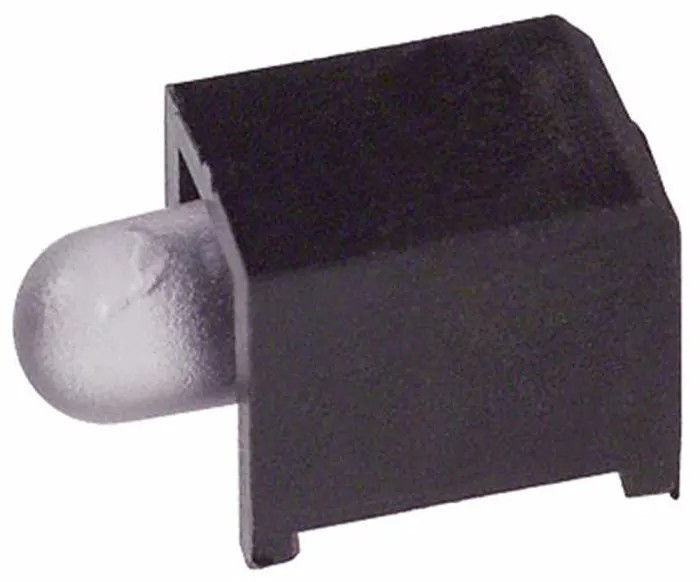

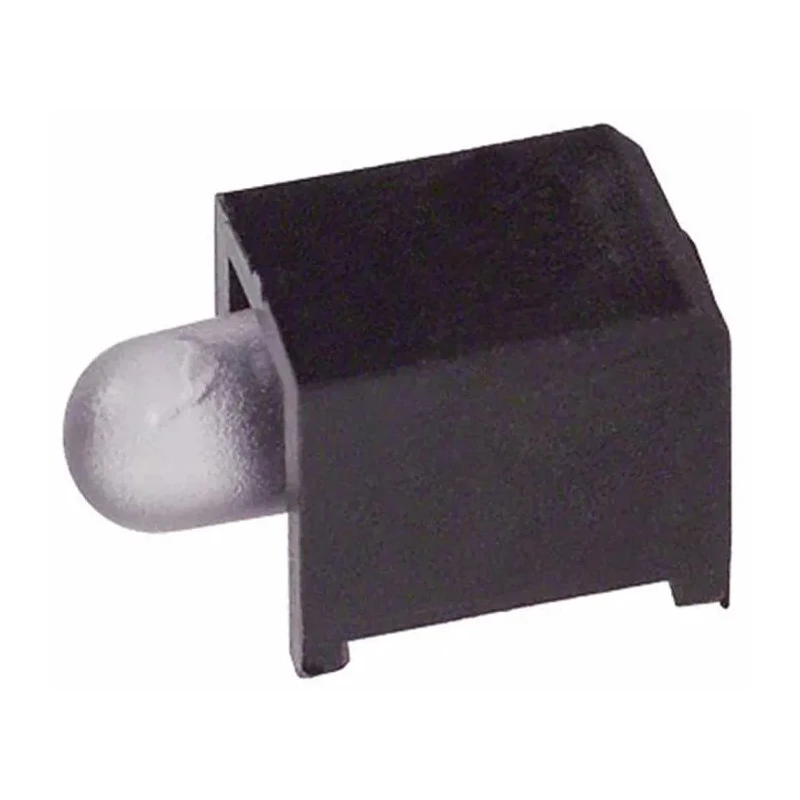

Dialight 2.5 V Red Green Surface Mount LED ELA-481-2 with 2 LEDs 591-3001-002F

Dialight 591-3001-002F is a high-quality surface mount LED indicator featuring dual red and green LEDs, designed for use in electronic and electrical applications where clear visual indicators are needed.

The device operates at a forward voltage of 2.5 V with a maximum forward current rating of 30mA, ensuring efficient low-power operation. The LED supports a maximum power dissipation of 100mW, making it suitable for various PCB indicator implementations within industrial, manufacturing, and automation environments.

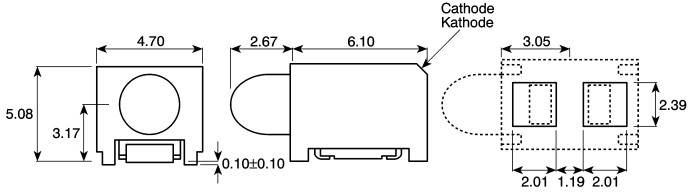

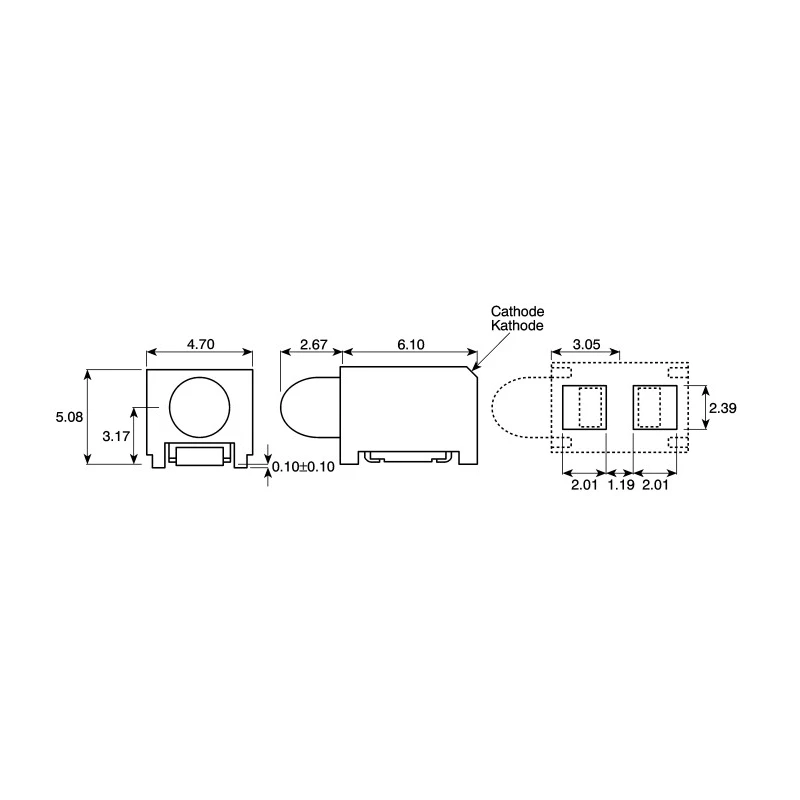

The black plastic housing enhances the contrast for the LED light, while the lens is round shaped with clear finish and dimensions of 8.77 x 4.32 x 5.03 mm. The 40° viewing angle ensures the LED is easily visible from typical operational perspectives. The LED luminosity is rated at 6.58 mcd, providing distinct indication output for control panels, circuit boards, and power distribution boards.

The LED features two pins and is designed for surface mounting (SMD), promoting ease of integration into automated assembly processes and compact designs. This model is part of the Prism® series with a CBI® circuit board indicator design, known for their rugged construction and reliability in industrial indicator applications.

The LED package type is ELA-481-2 with a bi-colour (red/green) LED configuration suitable for multiplex indicator functions. It is provided in tape and reel packaging to facilitate automated insertion in manufacturing. The product is not qualified under automotive standards and is intended primarily for industrial and commercial electronic component applications.

This LED indicator is ideal for use in industrial control systems, laboratory instruments, power supplies, and any electronic assembly requiring robust visual signaling. Explore further technical specifications and more products in the Dialight LED category on EnvMart.
