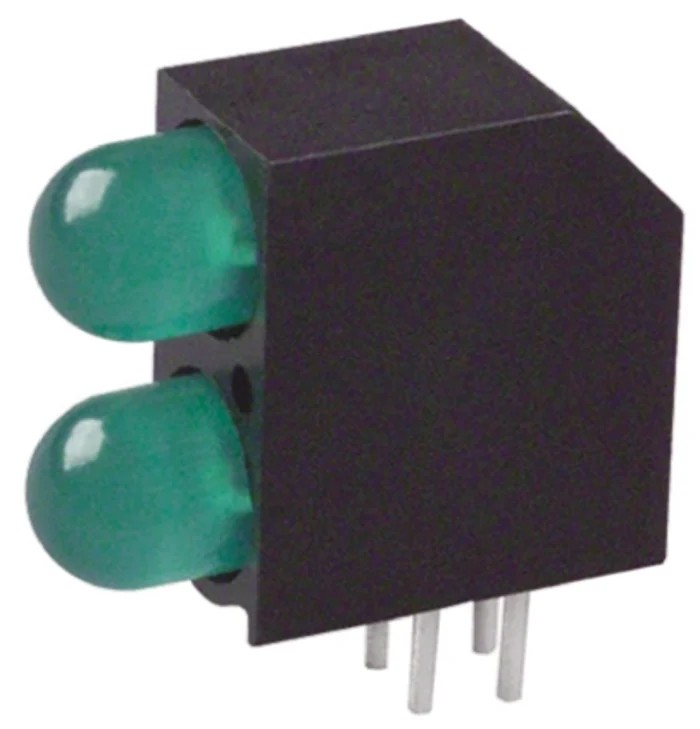

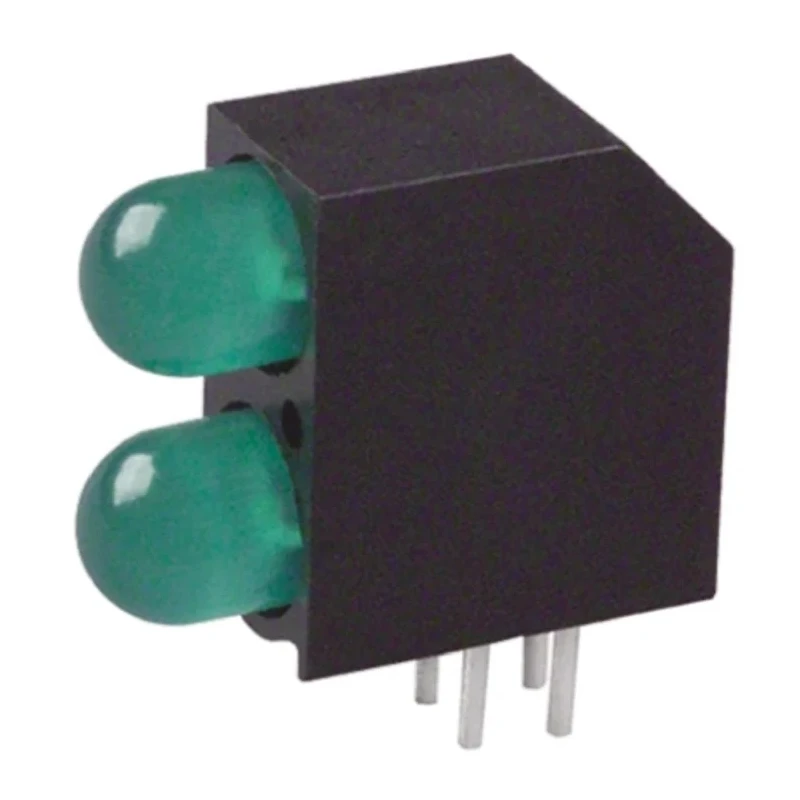

Dialight Green Right Angle PCB LED Indicator 5 mm (T-1 3/4), 2 LEDs, 1.8 V Single Colour 552-0922F
Specifications
| Country of Origin | India |
|---|---|
| Brand | Dialight |
| Length | 15.35mm |
| Model | 552-0922F |
| Mount Type | Through Hole |
| Number Of Leds | 2 |
| Maximum forward current | 30mA |
| Viewing angle | 50 ° |
| Sub Type | Single Colour |
| Power Dissipation | 80mW |
| Lens Colour | Green |
| Luminous Intensity | 34mcd |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Number of Pins | 4 |
| Lens Finish | Diffused |
| Minimum Supply Voltage | 1.8V |
| LED Material | GaP, GaAsP |
| Multicolour/Single Colour | Single Colour |
| LED Orientation | Right Angle |
| LED Size | 5 mm (T-1 3/4) |
| DUAL PCB MNTG LED GREENBrand | NEUTRAL |
Key Features
- This PCB LED indicator features two green LEDs with right angle orientation.
- The indicator provides a luminous intensity of 34 mcd for clear visibility.
- Its LED size is 5 mm with a diffused lens finish and green lens colour.
- The maximum forward current is 30 mA, ensuring power efficiency.
- Mount type is through hole with 4 pins for secure PCB integration.
- The viewing angle is 50° to provide focused illumination on PCBs.
- Constructed from GaP and GaAsP LED materials for durability and brightness.
- Power dissipation is rated at 80 mW for efficient operation.
Product Description
Dialight 552-0922F Green Right Angle PCB LED Indicator 5 mm (T-1 3/4) with 2 LEDs and 1.8 V single colour is designed for through hole mounting applications in electronics and electrical assemblies. It is ideal for use in PCB indicators where reliable visual signalling is required.
This LED indicator features two green LEDs arranged at a right angle, providing a luminous intensity of 34 mcd and a viewing angle of 50°. The LEDs are constructed from high-quality GaP and GaAsP materials, ensuring brightness and durability with a diffused green lens finish to reduce glare and enhance visibility.
The component supports a maximum forward current of 30 mA and power dissipation of 80 mW, making it energy efficient for continuous operation on printed circuit boards. The device has 4 pins configured for secure through hole mounting, and its length is 15.35 mm, allowing compact PCB design flexibility.
This model complies with RoHS standards, confirming its suitability for environmentally responsible manufacturing environments. Its high-contrast black UL 94V-0 rated housing provides stability and stands off from the PCB for easy cleaning and soldering.
Commonly used for industrial, manufacturing, and electrical control assemblies, this PCB LED indicator from Dialight's 552-0xxx CBI® series supports various signalling needs with reliable and efficient performance.
This PCB LED indicator features two green LEDs with right angle orientation. The indicator provides a luminous intensity of 34 mcd for clear visibility. LED size is 5 mm with a diffused green lens finish. Maximum forward current is 30 mA to optimize power usage.
Through hole mount with 4 pins ensures secure PCB fitting. Viewing angle is 50 degrees for focused light emission. Constructed from GaP and GaAsP materials for long-lasting brightness. Power dissipation rating is 80 mW. Meets RoHS compliance for environmental safety.
Compact length of 15.35 mm allows efficient PCB integration. Explore more PCB LED Indicators and electronic components on EnvMart to support your industrial and manufacturing needs with trusted quality and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of this LED indicator is 34 mcd, providing clear visibility.
The maximum forward current for this model is 30 mA, which ensures power efficiency during operation.
The viewing angle of the LEDs is 50°, allowing for focused illumination on PCBs.
The power dissipation rating for this LED indicator is 80 mW, making it suitable for continuous operation.
This indicator uses a through hole mounting type with 4 pins for secure integration into PCBs.
The LEDs are constructed from GaP and GaAsP materials, which contribute to their brightness and durability.
The size of the LEDs is 5 mm (T-1 3/4), which is standard for PCB applications.
Yes, this model complies with RoHS standards, confirming its suitability for environmentally responsible manufacturing.
The length of this LED indicator is 15.35 mm, allowing for compact PCB design flexibility.
The lens finish of this LED is diffused, which helps reduce glare and enhance visibility.
This LED indicator is commonly used in industrial, manufacturing, and electrical control assemblies for reliable visual signalling.
The minimum supply voltage required for operation of this model is 1.8 V.
