Dialight Right Angle Rigid LED Light Pipe PCB Mount 3 x 3 mm 515-1105F
Specifications
| Country of Origin | India |
|---|---|
| Brand | Dialight |
| Orientation | Right Angle |
| Length | 17.8mm |
| Model | 515-1105F |
| Number Of Ways | 1 |
| Mount Type | PCB |
| Series | Optopipe |
| Outside diameter | 3mm |
| Standards/Approvals | RoHS |
| Flexible/Rigid | Rigid |
| Lens Size | 3 x 3 mm |
| Light Pipe Shape | Rectangle |
| Number of Light Pipes | 1 |
| Configuration Rows x Columns | 1 x 1 |
| 515-1105 Dialight, LED Light PipeBrand | Dialight |
Key Features
- Constructed from high transmissivity polycarbonate material for excellent light transmission.
- Features a right angle rigid design suited for PCB mounting applications.
- Measures 17.8 mm in length with a 3 x 3 mm lens size and 3 mm outside diameter.
- Compatible with PLCC-2 and PLCC-4 SMT LEDs to facilitate efficient light piping.
- Complies with RoHS standards ensuring environmentally compliant manufacturing.
- Offers ESD protection providing circuit isolation from the front panel.
- Includes a single 1-way light pipe with a rectangular shape.
- Secures onto PCB by press fitting for stable installation.
Product Description

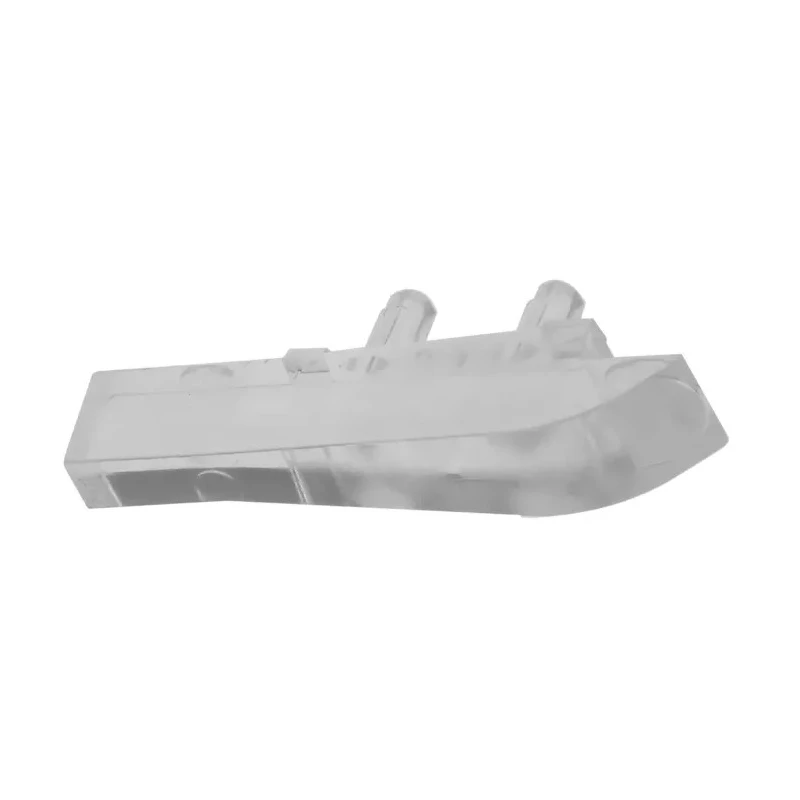

Dialight 515-1105F right angle rigid LED Light Pipe is designed for use with PCB mounted LEDs, measuring 3 x 3 mm, and 17.8 mm in length. It is constructed from high clarity polycarbonate material that ensures high transmissivity and reliable optical signal guidance. This product is part of the Dialight Optopipe™ series, which are specifically designed for MicroLeD® SMD LEDs in PLCC-2 and PLCC-4 packages.
The rigid right angle configuration allows for efficient directional light output and easy integration on PCBs. The light pipe provides essential ESD protection, isolating the circuit from the front panel, enhancing device longevity and reliability. The rectangular profile and 3 mm outside diameter facilitate secure press-fit mounting directly to the PCB.
Manufactured to RoHS standards, the product complies with environmental regulations and is suitable for industrial and commercial applications including electronics manufacturing, lighting fixtures, and control panel displays. Its compact size and high-quality material make this suitable for precise lighting applications where efficient light transmission and durability are critical.
The Dialight 515-1105F light pipe provides an effective solution for guiding LED light through PCBs while protecting sensitive components from electrostatic discharge. This product can be used in a wide range of lighting applications requiring precise and reliable light piping on printed circuit boards.
High transmissivity polycarbonate material for clear light transmission. Right angle rigid design facilitates directional light output on PCBs. Measures 17.8 mm length, 3 x 3 mm lens size, and 3 mm outside diameter. Compatible with SMT PLCC-2 and PLCC-4 LEDs.
ESD protection for circuit isolation from front panel. RoHS compliant ensuring environmental safety. Press-fit mount securing directly on PCB. Explore more LED lighting components at EnvMart for advanced industrial and commercial lighting solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures 17.8 mm in length.
It features a lens size of 3 x 3 mm.
The outside diameter of this unit is 3 mm.
It is compatible with PLCC-2 and PLCC-4 SMT LEDs.
It secures onto the PCB by press fitting for stable installation.
It is constructed from high transmissivity polycarbonate material for excellent light transmission.
This model features a right angle rigid design suited for PCB mounting applications.
Yes, it offers ESD protection, isolating the circuit from the front panel.
Yes, it complies with RoHS standards, ensuring environmentally compliant manufacturing.
The light pipe has a rectangular shape.
It is part of the Dialight Optopipe™ series.
This unit includes a single 1-way light pipe.
