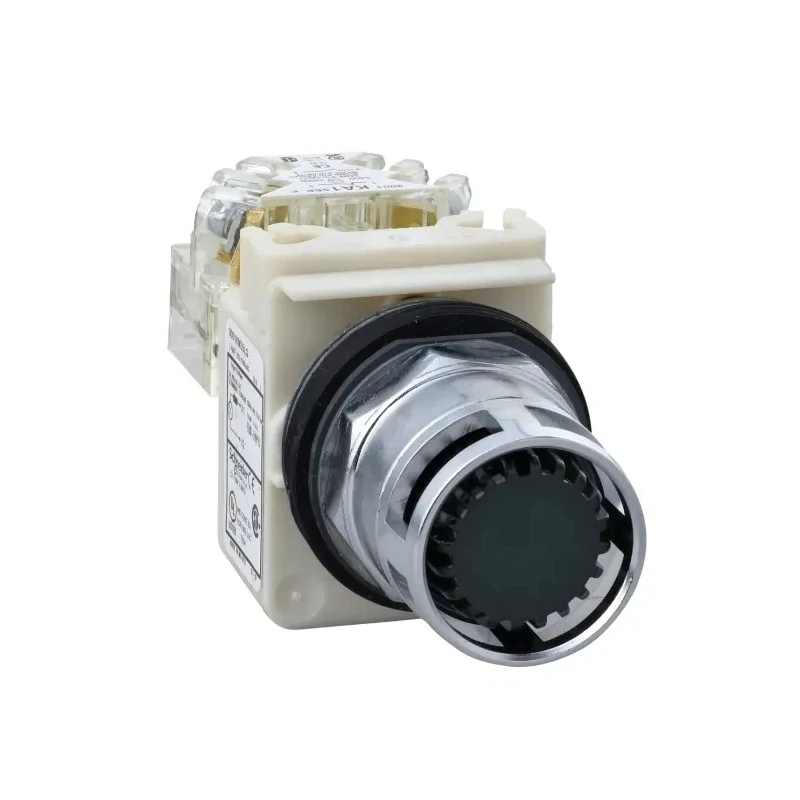

Schneider Electric Harmony 9001K Series Illuminated Push Button Switch, Spring Return, Panel Mount, 30 mm 9001K3L35LGGH13

Name: Schneider Electric Harmony 9001K Series Illuminated Push Button Switch, Spring Return, Panel Mount, 30 mm 9001K3L35LGGH13
Brand: Schneider Electric
SKU: 341212
Price: 22340.03 INR
Availability: InStock



Category Push Button Switches & Components Brand Schneider Electric Condition New

Specifications

Country of Origin	India
Brand	Schneider Electric
Height	60mm
Length	50mm
Model	9001K3L35LGGH13
IP Rating	IP66
Width	113mm
Mount Type	Panel
Series	Harmony 9001K
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Switch Configuration	1 CO
Minimum Operating Temperature	-25°C
Panel Cutout Size	30 mm
Terminal type	Screw
LED Colour	Green
Switch Operation	Spring Return
Actuator Colour	Green
Contact DC Voltage	24V
Actuator Style	Octagonal
Switch Contact Current	3A
Legend	Unmarked

Key Features

Features a green illuminated LED with superbright BA9s base for clear visibility.
SPDT contact configuration provides flexibility with single pole double throw switching.
Panel mounting with 30 mm cutout ensures compatibility with standardized industrial panels.
IP66 rated for dust-tight and water-resistant operation in demanding environments.
Operates in temperature range from -25°C to 70°C for versatile use.
Complies with UL 508, JIS C 852, JIS C 4520, EN/IEC 60947 standards, and CSA certifications.
Spring return actuator style resets automatically after activation enhancing safety.

Product Description

Schneider Electric 9001K3L35LGGH13 Illuminated Push Button Switch belongs to the Harmony 9001K Series designed for precise industrial switching in control panels. It features a green octagonal actuator with superbright LED illumination, enhancing visibility in low-light environments. This push button switch operates with spring return functionality and is intended for panel mounting with a 30 mm cutout, making it suitable for machinery controls and automation systems.

Constructed with screw terminal types and a SPDT (Single Pole Double Throw) contact configuration, it supports flexible wiring and switching needs. The switch contact current is rated at 3A with contact voltage up to 24V AC or DC, suitable for various low voltage control circuits.

Its robust design offers IP66 rating, ensuring protection from dust and water ingress, improving reliability in harsh industrial settings. Operating temperatures range from -25°C to 70°C, allowing use in cold storage to warm manufacturing environments. Dimensions are 113 mm width, 60 mm height, and 50 mm length, providing compact installation in control panels.

Engineered to meet global safety and quality standards such as UL 508, JIS C 852, JIS C 4520, EN/IEC 60947-5-1, and CSA C22.2 No. 14, this switch upholds high performance and durability expectations. The product is unmarked with a standard legend for flexible customization.

Features a green illuminated LED with superbright BA9s base for clear visibility. SPDT contact configuration provides flexible switching functionality. Panel mounting with 30 mm cutout ensures compatibility with standardized industrial panels.

IP66 rated for dust-tight and water-resistant operation in demanding environments. Suitable for operating temperatures ranging from -25°C to 70°C. Complies with major international safety standards for electrical components.

Compact dimensions allow easy integration into control systems. Spring return actuator style resets automatically after activation for safety.

This push button switch is widely used in industrial automation, manufacturing equipment, control panels, and electrical distribution systems where reliable manual control and status indication are required. Its illumination aids in operational visibility and safer machine handling in commercial and industrial installations.

Explore comprehensive control switch options from Schneider Electric at EnvMart for your electrical panel solutions.

Explore more products in our Push Button Switches & Components category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a SPDT (Single Pole Double Throw) contact configuration, allowing for flexible wiring and switching options.

It operates effectively within a temperature range of -25°C to 70°C, making it suitable for various environments.

The switch has an IP66 rating, ensuring it is dust-tight and resistant to water ingress, suitable for demanding industrial settings.

The dimensions of this unit are 113 mm in width, 60 mm in height, and 50 mm in length, allowing for compact installation.

This switch is designed for panel mounting with a 30 mm cutout, ensuring compatibility with standardized industrial panels.

The switch contact current is rated at 3A, suitable for various low voltage control circuits.

It can handle a contact voltage of up to 24V AC or DC, making it suitable for low voltage applications.

It uses screw terminal types, which facilitate secure and reliable connections during installation.

The actuator style is spring return with an octagonal shape, which resets automatically after activation for enhanced safety.

The legend on this model is unmarked, allowing for flexible customization according to user requirements.

It complies with UL 508, JIS C 852, JIS C 4520, EN/IEC 60947 standards, and CSA certifications, ensuring adherence to global safety standards.

This switch is widely used in industrial automation, manufacturing equipment, control panels, and electrical distribution systems for reliable manual control and status indication.
