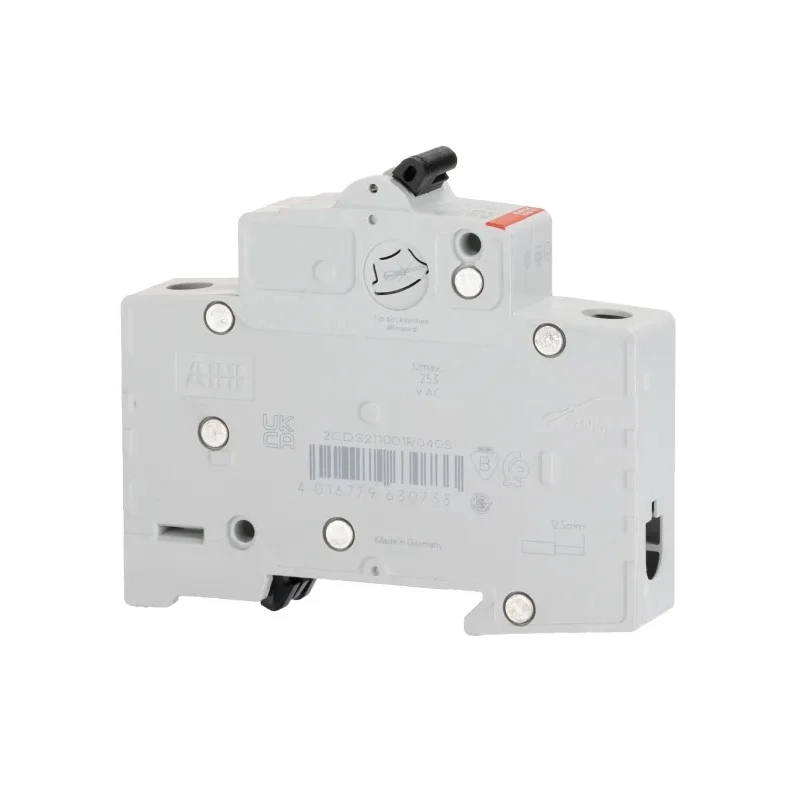

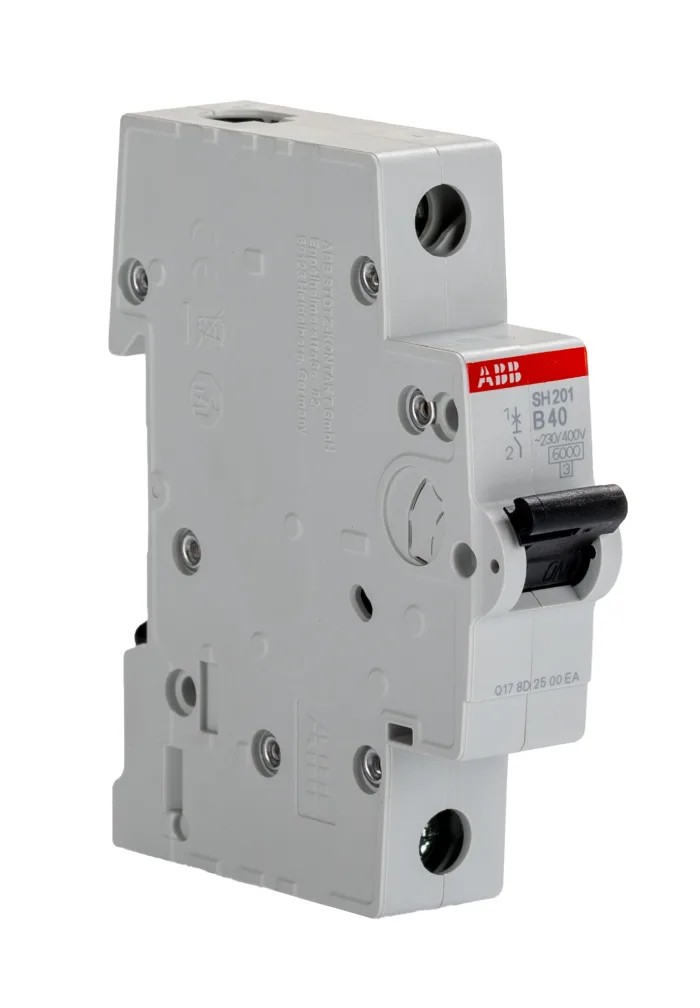

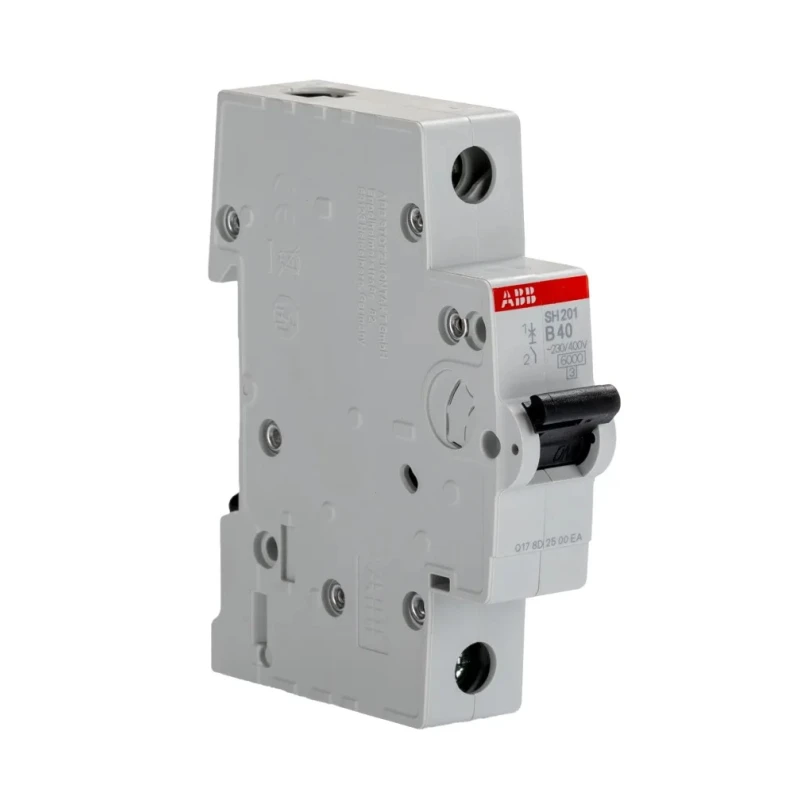

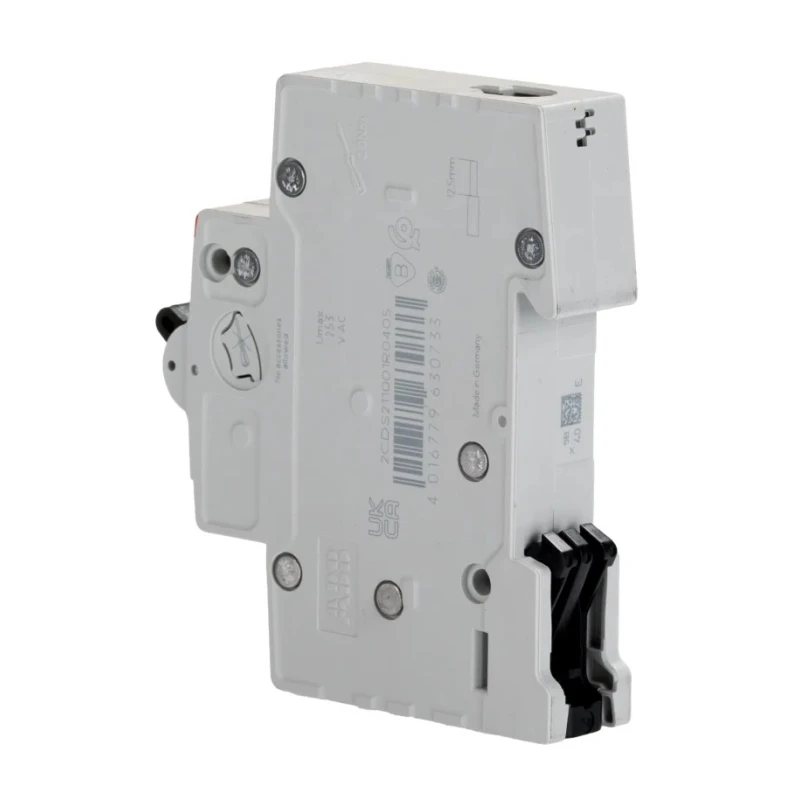

ABB ComPact Home Miniature Circuit Breaker, 1-Pole, 40A, Type B, 440V AC, 60V DC, 6 kA Breaking Capacity SH200

ABB SH200 Miniature Circuit Breaker is a 1-pole electrical protection device with a current rating of 40A, suitable for residential and light commercial electrical distribution systems. Rated for 440V AC and 60V DC, this device provides reliable circuit protection against overloads and short circuits with a breaking capacity of 6 kA. Its compact form factor and DIN rail mounting allow simple integration into existing electrical panels, optimizing space efficiency.

Designed with a type B tripping characteristic, the breaker delivers fast and effective response to ensure circuit safety. The screw clamp terminals accommodate a range of conductor sizes for secure electrical connections. Its IP20 rating safeguards against accidental contact, while the device operates reliably in temperatures from -25°C to +55°C, making it suitable for various environmental conditions.

This ABB SH200 series model adheres to the IEC/EN 60898-1 standard and incorporates electromagnetic and thermomagnetic tripping mechanisms, enhancing its protection capabilities. The reset toggle switch facilitates easy manual control, and its design supports disassembly to promote sustainability during maintenance or replacement.

Applications include residential power distribution, lighting and heating circuits, automation equipment, and energy management systems. The circuit breaker’s compact and robust construction ensures dependable performance in both industrial and residential environments.

This circuit breaker features a 1-pole design delivering 40A current rating for efficient protection. Type B tripping characteristic ensures fast response to overload conditions. High breaking capacity of 6 kA enables safe interruption of fault currents.

DIN rail mount facilitates easy installation and maintenance. Screw clamp terminals ensure reliable and secure wiring connections. Meets IEC/EN 60898-1 standards for quality and safety. IP20 protection rating provides safety against finger access and foreign objects.

Designed for sustainable disassembly and easy replacement. Operates within ambient temperatures from -25°C to +55°C. Features toggle switch reset actuator for convenient control. Explore more Miniature Circuit Breakers and electrical protection devices on EnvMart to meet your industrial and residential needs efficiently.
